Discontinued product

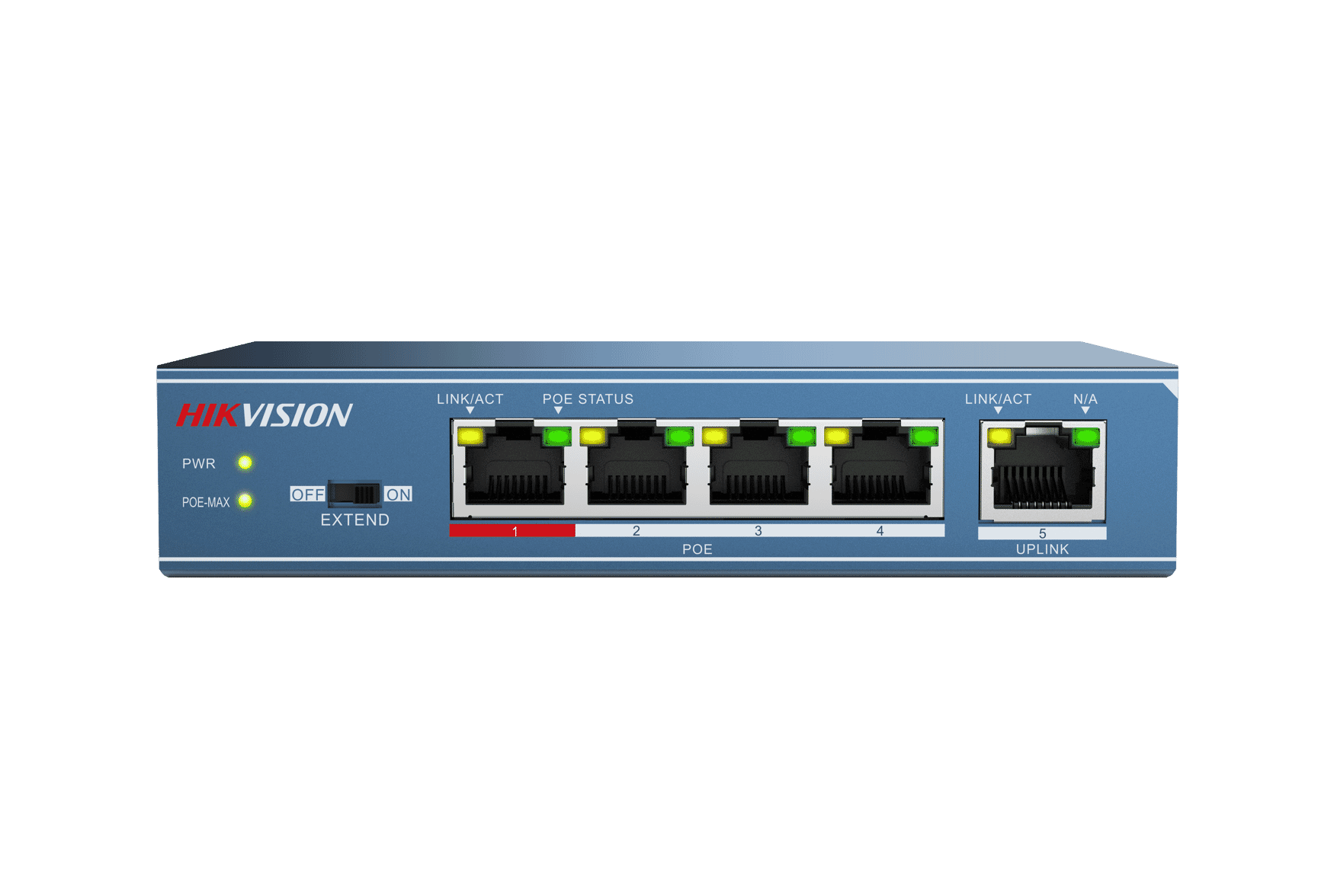

HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch
HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch
HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch
  • HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch
  • HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch
  • HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch

HIKVISION DS-3E0105P-E 5 Port POE+ 10/100 Switch

Hikvision Hikvision

  • 10/100Mbps
  • 4 POE & 1 Uplink
  • 58W Total Budget
  • 30W Max Per Port
Full description
24 Months warranty
Availability Discontinued
Delivery From £3.99* Inc VAT
Product Code11677
Orders will be processed Monday 6th Jul
Qty Ex VAT Inc VAT

Hikvision 5-ports (4-ports POE) 10/100Mbps unmanaged PoE+ switch.

DS-3E0105P-E is an 4 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc.

Key Features

  • Up to 250m transmission achievable at reduced mbps rate on extend mode
  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • 4 x 10/100Mbps Auto-MDIX PoE ports
  • Provides up to 30 watts per PoE port
  • PoE power budget 58W
  • 4 kV surge protection for PoE ports
  • IEEE 802.3x flow control support
  • Plug-and-play installation
  • 1 Gbps switching fabric
  • 448 Kbits RAM Data Buffer
  • 1K MAC address entries
  • Sturdy metal enclosure
  • Dimensions: 132 x 93.3 x 27.6mm

Product variants available

External links*
Hikvision website
Hikvision support site

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

There are no reviews for this product. Please leave your review below.

Write your review

Thanks for taking the time to review this product.
Your feedback helps us improve our products and services as well as helping other users make informed buying decisions.

Get expert answers to questions specific to this product below or for more help visit our Q&A forum

Antonio2019-03-20 06:06:45
What are the red ports for on this switch
Paul2019-03-20 06:06:45
They are priority ports ideal for ensuring PTZ cameras get lowest latency
Neil Salisbury2018-05-21 14:26:51
Hi. I am very interested in the HIKVISION DS-3E0105P-E 4 Port POE+ 10/100 Switch. My question is: where does it get its power from?
Paul Jarvis2018-05-21 14:40:21
The DS-3E0105P-E is supplied with a 51v DC transformer which will need to be plugged in to a mains socket.
