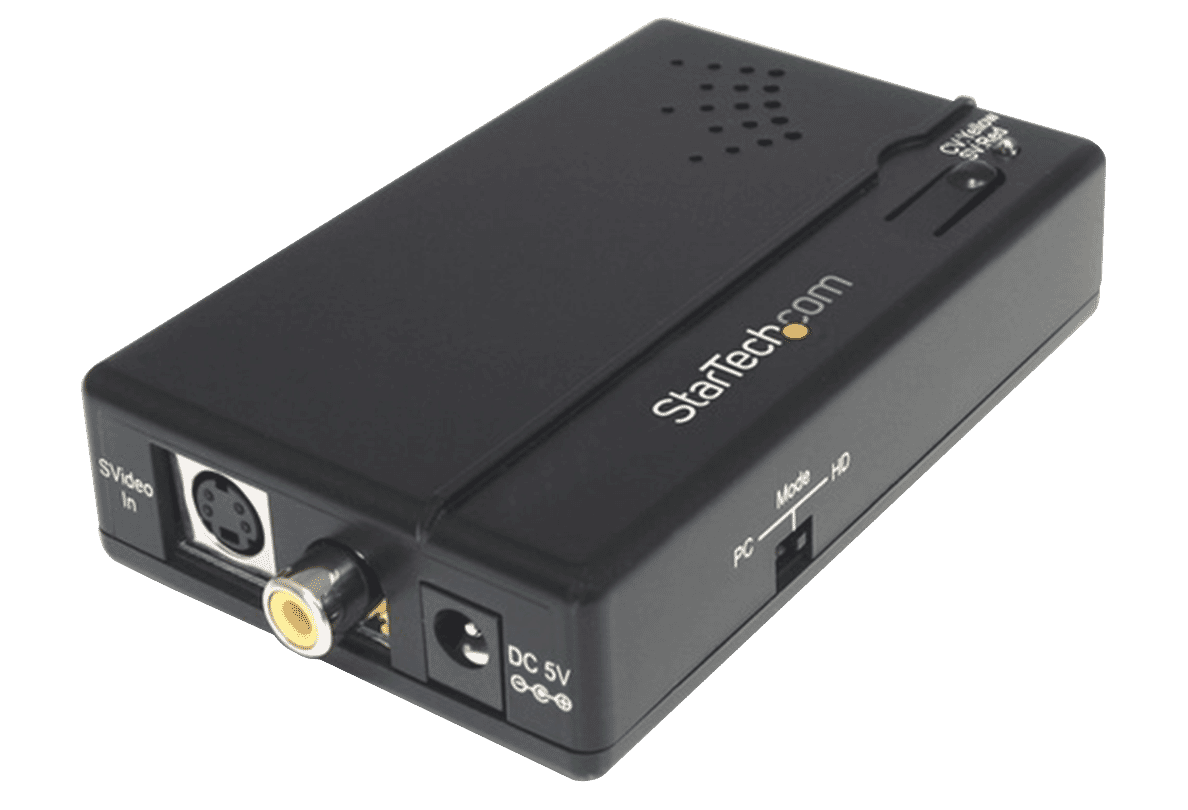

Composite and S-Video with Audio to HDMI Converter
StarTech
- On Screen Display
- Video & Audio to HDMI
- Plug & Play
The Startech VID2HDCON lets you connect Convert VCR, DVD players, camcorders, video game consoles & other home theater devices to work on HDMI devices (Read more)
PRODUCT DETAILS
The Startech Composite and S-Video to HDMI Video Converter (with
Audio) lets you connect Convert VCRs, DVD players, camcorders,
video game consoles and other home theater devices to work on HDMI
displays.
Equipped with convenient selector switches for easy configuration,
the S-Video/Composite to HDMI converter is able to function with
both NTSC and PAL systems, and offers support for output
resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly
integrate with almost any display.
The converter features an integrated 3.5mm audio connection that
enables sending the output through a single HDMI cable to your
destination display, avoiding the hassle of running a separate
audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Features:
- Functions with NTSC and PAL systems
- PC/TV resolution selector switch for compatibility with many different displays
- 50/60 Hz frame rate conversion
- On Screen Display
- Plug and play installation - no software/drivers required
- Advance 3D motion adaptive de-interlace
- 3D (frame based) motion adaptive YNR/CNR noise reduction
- Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation
| Hardware |
|
| Warranty |
2 Years |
| Active or Passive Adapter |
Active |
| Audio |
Yes |
| AV Input |
3.5 mm Stereo Audio Composite S-Video |
| AV Output |
HDMI |
| Industry Standards |
NTSC 3.58 and PAL |
| Performance |
|
| Supported Resolutions |
PC - 1600x1200, 1280x1024, 1024x768 TV - 1080p, 720p, 576p, 480p |
| Connectors |
|
| Connector Types |

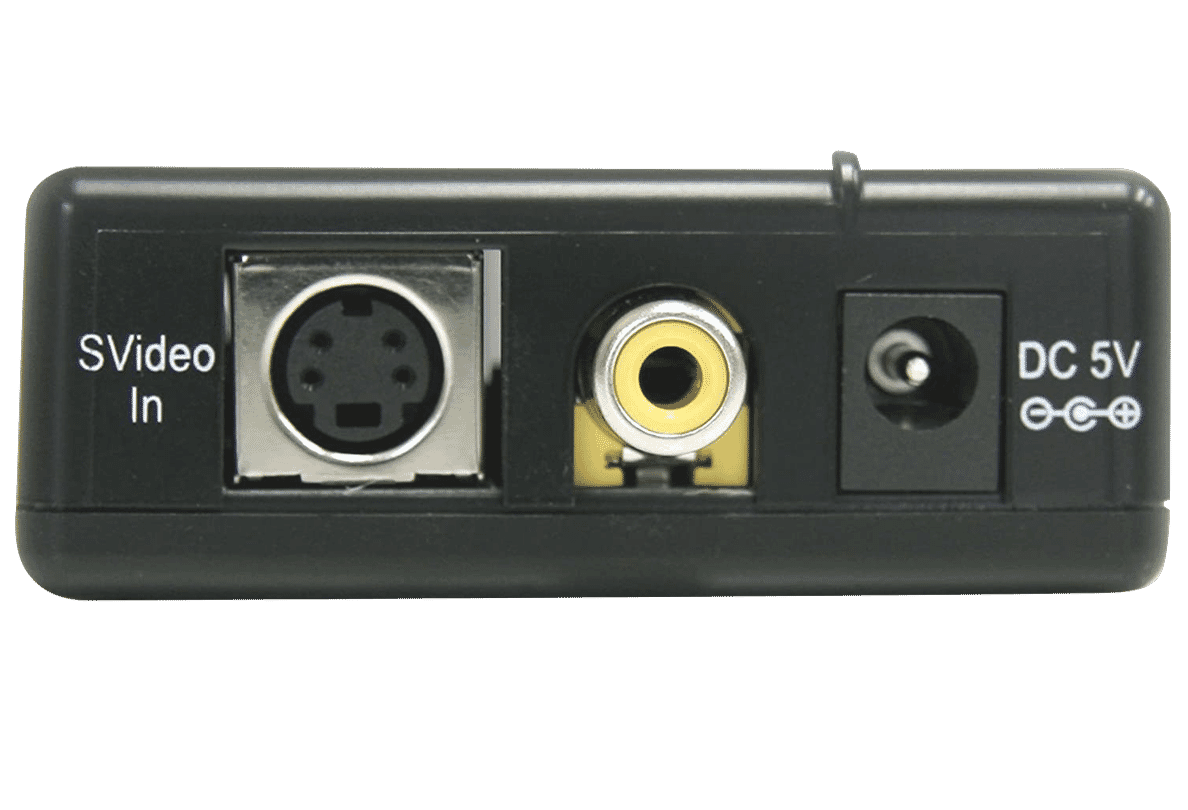

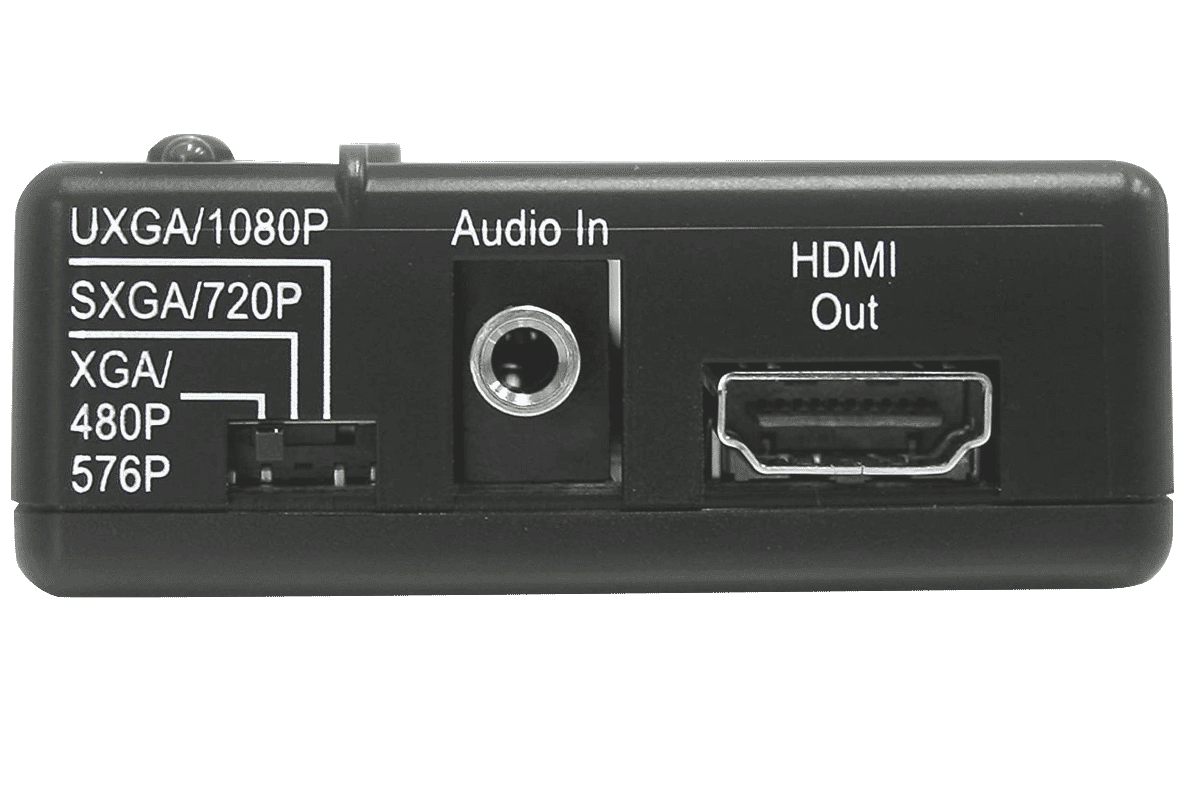

1 - 3.5 mm Mini-Jack (3 Position) Female Input 1 - Composite Video (1 x RCA) Female Input 1 - HDMI (19 pin) Female Output 1 - S-Video (4 pin, Mini-DIN) Female Input |
| Indicators |
|
| LED Indicators |
1 - Red - S-Video, Yellow - Composite Video |
| Power |
|
| Center Tip Polarity |
Positive |
| Input Current |
0.3A |
| Input Voltage |
100 - 240 AC |
| Output Current |
1.2A |
| Output Voltage |
5 DC |
| Plug Type |
M |
| Power Consumption (In Watts) |
2.5 |
| Power Source |
AC Adapter Included |
| Environmental |
|
| Humidity |
20~90% RH |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Physical
Characteristics |
|
| Colour |
Black |
| Enclosure Type |
Plastic |
| Product Height |
3.4 cm [1.3 in] |
| Product Length |
16.4 cm [6.5 in] |
| Product Width |
16.3 cm [6.4 in] |
| Product Weight |
79 g [2.8 oz] |
| Packaging
Information |
|
| Package Height |
56 mm [2.2 in] |
| Package Length |
12.4 cm [4.9 in] |
| Package Width |
15.5 cm [6.1 in] |
| Shipping (Package) Weight |
310 g [10.9 oz] |
| What's in the
Box |
|
| Included in Package |
1 - Composite/S-Video to HDMI Converter 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 - Instruction Manual |
| Videos |
|---|
| No videos available |
| Files |
|---|
| StarTech VID2HDCON datasheet |
| Links* |
|---|
| StarTech website |
| StarTech support site |
