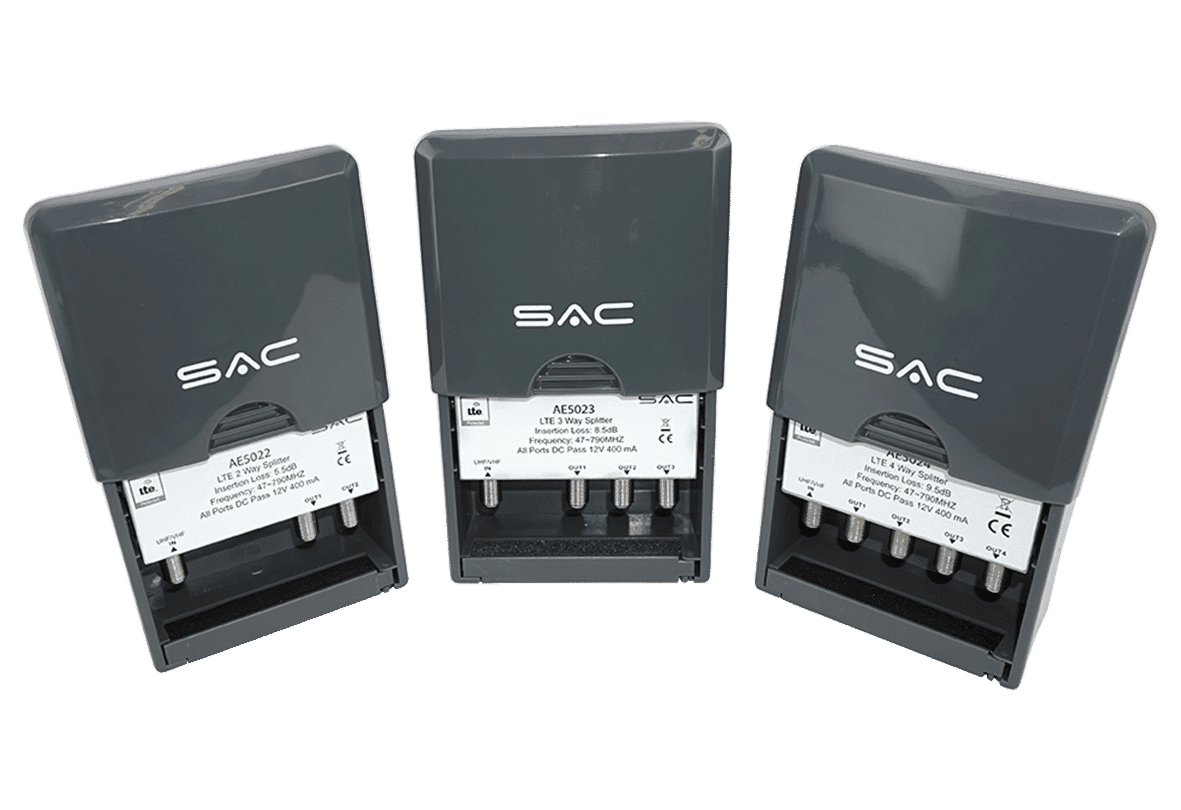

Masthead Outdoor Aerial Splitter with DC Pass
Masthead Outdoor Aerial Splitter with DC Pass
Masthead Outdoor Aerial Splitter with DC Pass
fullscreen
  • Masthead Outdoor Aerial Splitter with DC Pass
  • Masthead Outdoor Aerial Splitter with DC Pass
  • Masthead Outdoor Aerial Splitter with DC Pass

Masthead Outdoor Aerial Splitter with DC Pass

SAC Electronics SAC Electronics

  • LTE/4G Protected
  • Low Insertion Loss
  • 2, 3 or 4 ports
Full description
FREE delivery is available for this product

There are 3 variants of this product


Masthead Outdoor Aerial Splitter with DC Pass

Our range of outdoor aerial splitters are available with 2, 3 or 4 ports to split terrestrial and satellite signals between devices and have a weatherproof housing that protects them from the elements. The LTE/4G shielding protects them from mobile internet interference and F type connectors offer a reliable and professional installation. Every port on each model has DC power pass.

Features:

  • All ports DC power pass
  • Fully shielded with F type connectors
  • Tight seal waterproof housing
  • SMD circuit technology design
  • Low insertion loss
  • Easy to install and convenient to use
  • Masthead and wall mountable



2 Port 3 Port 4 Port
   Number of inputs
1 1 1
   Number of outputs
2 3 4
   Input frequency band
UHF/VHF
UHF/VHF
UHF/VHF
   Output frequency range
47-790MHz
47-790MHz
47-790MHz
   DC Pass
All ports 400mA
Max 75ohms
All ports 400mA
Max 75ohms
All ports 400m
A Max 75ohms
   Insertion loss
47-750MHz: 3.5dB
750-790MHz: 5.5dB
47-750MHz: 6dB
750-790MHz: 8.5dB
47-750MHz: 7dB
750-790MHz: 9.5dB
   Return loss
47-750MHz: 10dB
750-790MHz: 12dB
47-750MHz: 10dB
750-790MHz: 12dB
47-750MHz: 10dB
750-790MHz: 12dB
Isolation
47-750MHz: 18dB
750-790MHz: 18dB
47-750MHz: 20dB
750-790MHz: 20dB
47-750MHz: 20dB
750-790MHz: 20dB
   Out of band rejection
790-820MHz: 45dB
790-820MHz: 45dB
790-820MHz: 45dB
   Insertion loss
930-960MHz: 55dB
930-960MHz: 55dB
930-960MHz: 55dB
   Dimensions
115 x 100 x 65 mm
115 x 100 x 65 mm
115 x 100 x 65 mm
Weight 0.236kg
0.236kg
0.236kg

Product variants available

12287 2 Way with DC Pass £6.70 In stock
12288 3 Way with DC Pass £7.24 In stock
12293 4 Way with DC Pass £8.12 In stock
