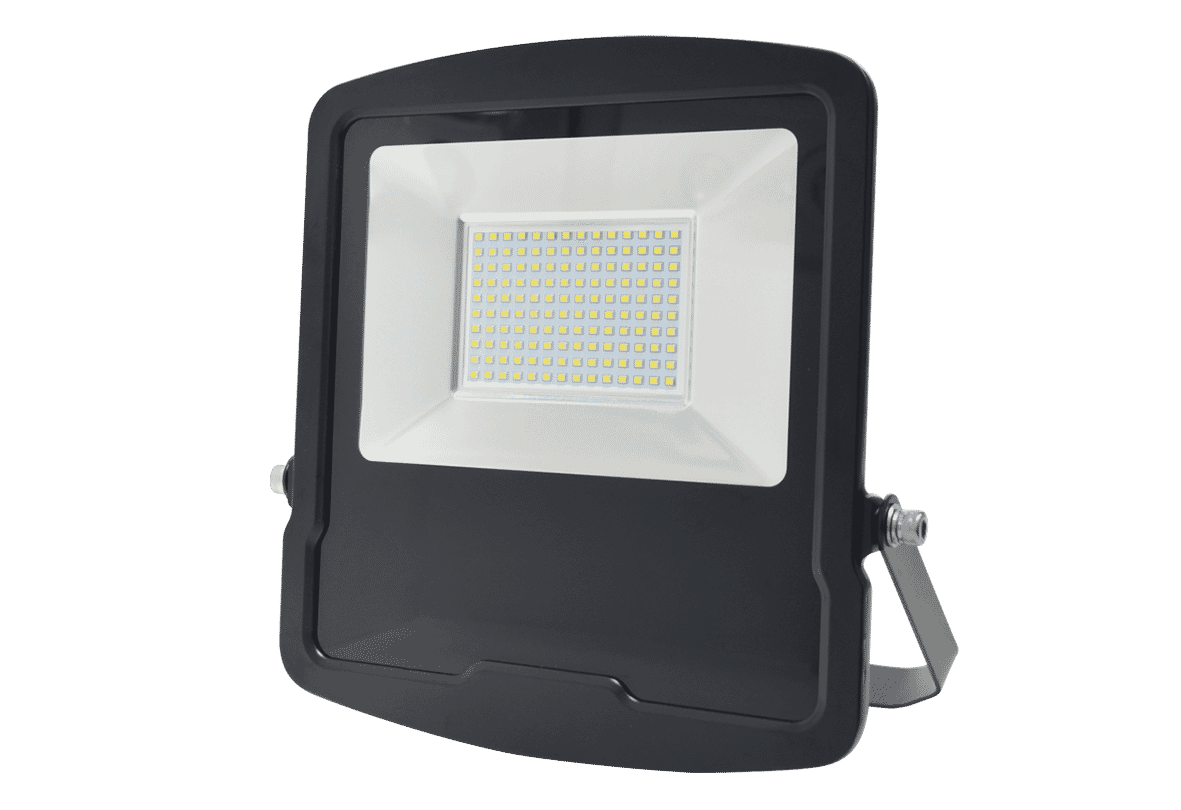

Diamond Tatton Slimline High Power LED Floodlight 80-200W
  • Diamond Tatton Slimline High Power LED Floodlight 80-200W

Diamond Tatton Slimline High Power LED Floodlight 80-200W

Diamond LED Lighting Diamond LED Lighting

  • High output power
  • 6400-16100 Lumens
  • Low profile body
Full description
FREE delivery is available for this product

There are 4 variants of this product

Diamond Tatton High Power LED Floodlights 80 - 200 Watt

wattage-80-200.png?scale.width=60 life-25000.png?scale.width=60 angle-110.png?scale.width=60 temp-6000k.png?scale.width=60 ingress-ip65.png?scale.width=60 warranty-2yr.png?scale.width=60 voltage-200-240.png?scale.width=60

The Diamond Tatton high power LED floodlights are ultra high power outdoor lights designed with a low profile casing that are easy to install and ideal for illuminating large areas like commercial and industrial properties.

The high power series of LED floodlights are available in either 80, 100, 150 or 200 watt versions and all feature built-in LED drivers, a wide 110° illumination angle and a 2 year warranty.


  • Powerful output power
  • Wide illumination angle
  • Compact slimline design
  • 2 Year warranty

PIR Optional
Wattage 80 Watt
100 Watt
150 Watt
200 Watt
SON 80W = 250 watt
100W = 300 watt
150W = 450 watt
200W = 600 watt
Input Voltage 200-240V
Power Factor -
Beam Angle 110°
Life Expectancy 25000 Hrs
Colour Temperature 6000K (Cool)
Output Lumens 80W = 6400 lm
100W = 8000 lm
150W = 12500 lm
200W = 16100 lm
Useful Lumens -
Dimmable No
Recommended Dimmers -
Switch Time 20000
Instant Light Yes
CRI >70
Colour Consistency Yes
Certification CE
ERP Compliant Stage 1
LEDs Sanan
IP Rating IP65
Lumen Maintenance Factor -
Peak Intensity -
Fluorescent Equivalent -
Recommended Use Outdoor/Industrial Use
Special Conditions -
Suitable for Accent Lighting No
Warranty 2 Yeays

Product variants available

12788 Tatton Slimline 80W 6000K £45.44 In stock
12789 Tatton Slimline 100W 6000K £46.92 In stock
12790 Tatton Slimline 150W 6000K £86.23 In stock
12791 Tatton Slimline 200W 6000K £110.56 In stock
No files are available for this product
External links*
Diamond LED Lighting website

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

There are no reviews for this product. Please leave your review below.

Write your review

Thanks for taking the time to review this product.
Your feedback helps us improve our products and services as well as helping other users make informed buying decisions.

Get expert answers to questions specific to this product below or for more help visit our Q&A forum

William Smith2020-04-03 11:50:10
Hi are these PIR lights or just floodlights?
Nathan2020-04-04 10:20:02
This range is available with or without a PIR. Both versions can be selected from the variant drop down box on the product page..
