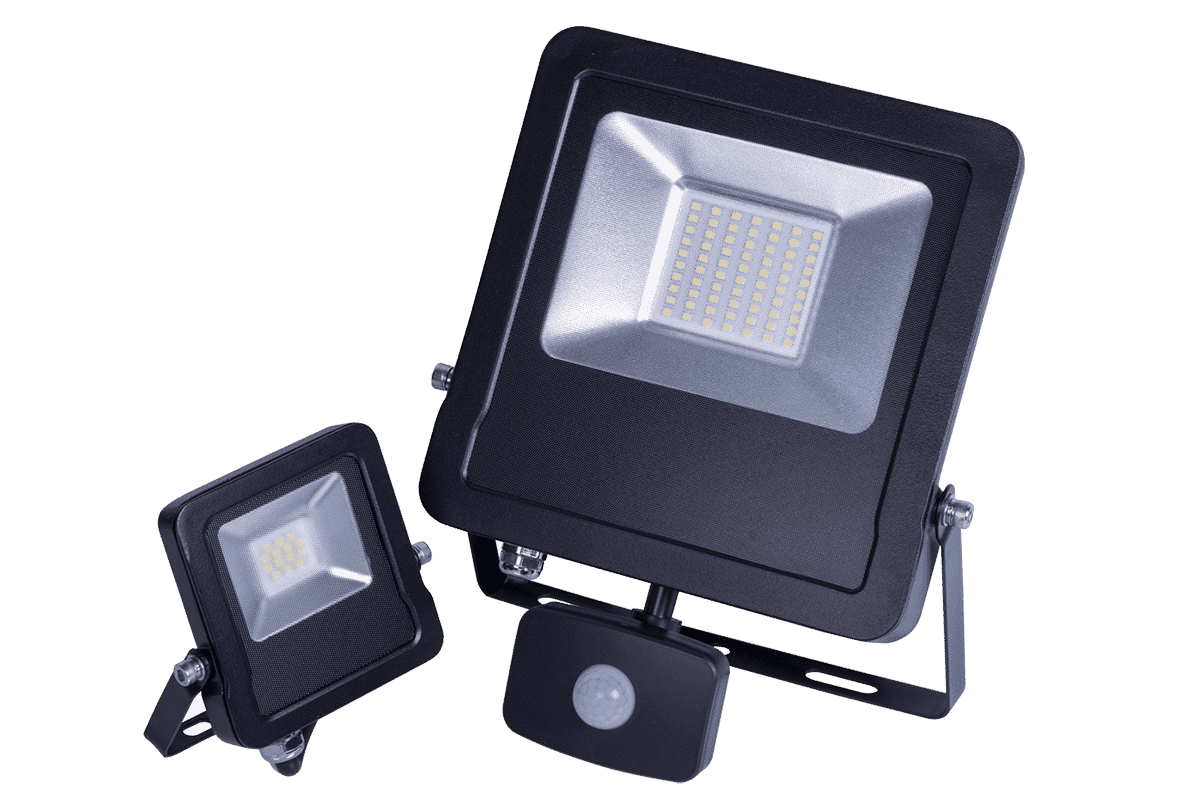

Diamond Tatton Slimline Outdoor LED Floodlight 10-50W
Diamond Tatton Slimline Outdoor LED Floodlight 10-50W
Diamond Tatton Slimline Outdoor LED Floodlight 10-50W
swipe to view images
fullscreen

Diamond Tatton Slimline Outdoor LED Floodlight 10-50W

Rated 0/5   0 reviews | 6 Questions
Diamond LED Lighting logo Diamond LED Lighting
  • Optional PIR detector
  • Easy to install
  • 2 Year warranty

The Diamond Tatton Series of slimline LED floodlights have bright cool 6000K LED's, angled brackets for easy installation and optional built-in PIR's (Read more)

Loading

There are 8 variants of this product

£8.36 - £35.83
£6.97 - £29.86 Ex VAT
More Information
RELATED PRODUCTS

PRODUCT DETAILS

10 to 50 Watt 25000 Hour LED life 110 Degree angle 6000K Colour temperature IP65 Water and weatherproof 2 Year warranty Operates at 200-240 volt AC Optional built-in PIR

The Tatton slimline series of LED floodlights from Diamond have a low profile body and an angled mounting bracket making them easy to install without having to remove the bracket.

The standard Tatton range is available in 10, 20, 30 or 50 Watts and with or without a built-in PIR detector.

All Diamond LED floodlights are built with durability in mind and the Tatton slimline series are weather and waterproof rated to IP65, have a 25000 hour life and come with a 2 year warranty.


Key features

  • Angled bracket for easy installation
  • Slimline low profile body
  • 25000 Hour LED life
  • Optional PIR detector
  • 2 Year warranty



Without PIR
With PIR
10 Watt
TA1-10C
TA1-10CP
20 Watt
TA1-20C
TA1-20CP
30 Watt
TA1-30C
TA1-30CP
50 Watt
TA1-50C
TA1-50CP


YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS
Specification
PIR Optional
Wattage 10 watt
20 watt
30 watt
50 watt
Halogen 10W = 100 watt
20W = 200 watt
30W = 300 watt
50W = 500 watt
Input Voltage 200-240V
Power Factor -
Beam Angle 110°
Life Expectancy 25000 Hrs
Colour Temperature 6000K (Cool white)
Output Lumens 775 lm
1525 lm
2350 lm
4350 lm
Useful Lumens -
Dimmable No
Recommended Dimmers -
Switch Time 12500
Instant Light Yes
CRI >80
Colour Consistency None
Certification CE
ERP Compliant Stage 3
LEDs Sanan
IP Rating IP65
Lumen Maintenance Factor -
Peak Intensity -
Fluorescent Equivalent -
Recommended Use Outdoor/Industrial Use
Special Conditions -
Suitable for Accent Lighting No
Dimensions 10W - 104 x 125 x 27mm
20W - 125 x 152 x 28mm
30W - 168 x 209 x 27mm
50W - 200 x 287 x 57mm
Warranty 2 years
VARIANTS
DIA0001 Tatton Slimline 10W 6000K £8.36 In stock
DIA0002 Tatton Slimline 10W PIR 6000K £16.75 In stock
DIA0003 Tatton Slimline 20W 6000K £11.63 In stock
DIA0004 Tatton Slimline 20W PIR 6000K £18.96 In stock
DIA0005 Tatton Slimline 30W 6000K £17.71 In stock
DIA0006 Tatton Slimline 30W PIR 6000K £24.79 In stock
DIA0007 Tatton Slimline 50W 6000K £28.24 In stock
DIA0008 Tatton Slimline 50W PIR 6000K £35.83 In stock
USEFUL FILES AND LINKS
Videos
No videos available
Files
No files available
Links*
Diamond LED Lighting website

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

QUESTIONS AND ANSWERS

Get expert answers to questions specific to this product below or for more help visit our Q&A forum


Can the Tatton Slimline 50W 6000K non pir be linked to external PIR detection to turn on when there's a detection ?
( )
Yes. Simply wire your external PIR inline with this light fitting.
( )
Is there a recommended height that the light should be mounted at for the PIR to work best?
( )
Typically, a security light with a PIR works best when mounted at around 2.5m off the ground.
( )
Do the 20w pir model come with a pre made fly lead or can you wire a twin and earth directly into the back of these?
( )
This model has a 30cm trailing lead coming from the light
( )
How do you adjust the range
( )
The range can be adjusted by either turning the rotary sensitivity dial on the rear of the PIR, or you can adjust the angle of the PIR by tilting the light.
( )
Do the Diamond Tatton Slimline LED floodlights come with 4 core flex
( )
Only the Diamond Tatton PIR flood lights have the 4 core fly lead. The non PIR models do not require an override facility.
( )
How do I adjust the time it remains on
( )
The time adjustment is done via a rotary dial on the rear of the PIR along with the sensitivity and Lux level settings. These settings are obviously only available on the PIR models.
( )
