Riello Sentinel Dual2 SD2 UPS Backup
Riello UPS
- Superior Protection
- High Efficiency
- 5-Year Warranty
The Riello Sentinel Dual2 SD2 is a high-performance online double-conversion uninterruptible power supply (UPS), designed to handle non-linear loads. (Read more)
PRODUCT DETAILS

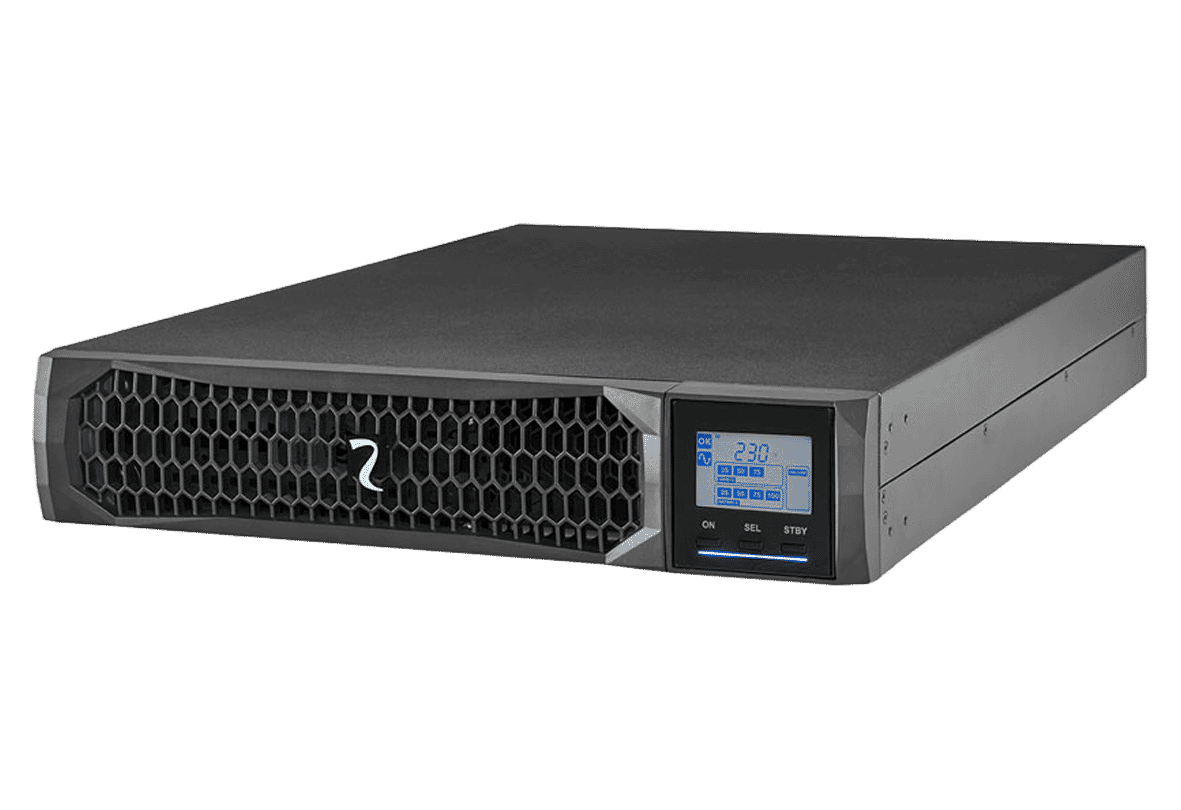

The Riello Sentinel Dual2 SD2 is a high-performance online double-conversion uninterruptible power supply, designed to provide continuous, reliable power protection for critical IT infrastructure and business systems. Combining advanced technology with flexible installation options, the Sentinel Dual2 is ideal for servers, networking equipment, storage systems, VoIP, security systems, medical devices, and industrial applications.
Engineered for maximum reliability, the SD2 range uses true online double-conversion technology to deliver a constant, clean power supply, protecting connected equipment from outages, voltage fluctuations, surges, and electrical interference. With a power factor of 1 (kVA = kW), the UPS provides full usable power capacity, making it particularly suitable for modern high-density IT environments and blade server systems.
The versatile design allows the UPS to be installed as either a 2U rackmount unit or freestanding tower, providing flexibility for server rooms, comms cabinets, and office installations. A rotating LCD display and LED status bar offer clear real-time monitoring of system performance, battery status, load levels, and operating conditions.
Developed by Riello UPS’s research and development team, the Sentinel Dual2 delivers excellent energy efficiency, achieving up to 93.7% efficiency in online mode, helping reduce running costs while maintaining premium power protection. Integrated EnergyShare sockets enable intelligent load management, prioritising critical devices during extended outages.
Configuration and management are simplified through a built-in Bluetooth mobile app and PC software support, enabling easy setup, monitoring, and advanced configuration directly from a smartphone or computer. Extended Runtime (ER) variants are also available for applications requiring prolonged battery backup.
Features:
- Online double-conversion UPS technology
- Power factor 1 output for maximum usable power
- Rackmount or tower installation flexibility
- Ideal for servers, networks, storage, and critical systems
- High efficiency operation up to 93.7%
- Rotating LCD display with LED status indicators
- Bluetooth app and PC software configuration
- EnergyShare outlets for intelligent load management
- Extended runtime models available
- Low-noise operation and compact 2U design
| Model | 1000VA | 1500VA | 2200VA | 3000VA |
|---|---|---|---|---|
| INPUT | ||||
| Voltage | 220 / 230 / 240 | 220 / 230 / 240 |
220 / 230 / 240 |
220 / 230 / 240 |
| Voltage tolerance | 230 V ±20% | 230 V ±20% |
230 V ±20% |
230 V ±20% |
| Frequency | 50 / 60 | 50 / 60 |
50 / 60 |
50 / 60 |
| Frequency tolerance | 50 Hz ±20% / 60 Hz ±20% | 50 Hz ±20% / 60 Hz ±20% |
50 Hz ±20% / 60 Hz ±20% |
50 Hz ±20% / 60 Hz ±20% |
| Power factor | 1 | 1 | 1 | 1 |
| Current distorsion | ≤5.2% | ≤5.2% |
≤5.2% |
≤5.2% |
| BY PASS | ||||
| Voltage tolerance | 180 / 264 V | 180 / 264 V |
180 / 264 V |
180 / 264 V |
| Frequency tolerance | Configurable: 3% ÷ 10% | Configurable: 3% ÷ 10% |
Configurable: 3% ÷ 10% |
Configurable: 3% ÷ 10% |
| OUTPUT and INVERTER OUTPUT | ||||
| Rated power | 1000 VA | 1500 VA |
2200VA |
3000VA |
| Active power | 1000 W | 1500 VA |
2200VA |
3000VA |
| Number phases | 1 | 1 | 1 | 1 |
| Crest factor (Ipeak/Irms) | 3:1 | 3:1 |
3:1 |
3:1 |
| Waveform | Sinusoidal | Sinusoidal |
Sinusoidal |
Sinusoidal |
| Frequency | Selectable: 50 or 60 or self-learning | Selectable: 50 or 60 or
self-learning |
Selectable: 50 or 60 or
self-learning |
Selectable: 50 or 60 or
self-learning |
| Voltage distortion with non-linear load | <4% | <4% |
<4% |
<4% |
| Voltage distortion with linear load | <2% | <2% |
<2% |
<2% |
| OVERLOAD TIMES | ||||
| Load = 150% | 1 s | 1 s |
1 s |
1 s |
| Load = 125% | 4 s | 4 s |
4 s |
4 s |
| BATTERIES | ||||
| Type | VRLA AGM maintenance-free lead based | VRLA AGM maintenance-free lead
based |
VRLA AGM maintenance-free lead
based |
VRLA AGM maintenance-free lead
based |
| Typical recharge time | 2-4 h | 2-4 h |
2-4 h |
2-4 h |
| ENVIRONMENTAL | ||||
| Colour | RAL 9005 | RAL 9005 |
RAL 9005 |
RAL 9005 |
| Communication | USB / RJ45 with dry contacts / Slot for communications interface | USB / RJ45 with dry contacts / Slot for
communications interface |
USB / RJ45 with dry contacts / Slot for
communications interface |
USB / RJ45 with dry contacts / Slot for
communications interface |
| Safety compliance |
IEC EN 62040-1 |
IEC EN 62040-1 |
IEC EN 62040-1 |
|
| EMC compliance | EMC 2014/30/EU electromagnetic compatibility; EMC IEC EN 62040-2 | EMC 2014/30/EU electromagnetic
compatibility; EMC IEC EN 62040-2 |
EMC 2014/30/EU electromagnetic
compatibility; EMC IEC EN 62040-2 |
EMC 2014/30/EU electromagnetic
compatibility; EMC IEC EN 62040-2 |
| Accessories provided | Power cable, IEC-IEC cable, USB cable, safety manual, quick start guide | Power cable, IEC-IEC cable, USB cable,
safety manual, quick start guide |
Power cable, IEC-IEC cable, USB cable,
safety manual, quick start guide |
Power cable, IEC-IEC cable, USB cable,
safety manual, quick start guide |
| Marks | CE, GS/NEMKO, UL | CE, GS/NEMKO, UL |
CE, GS/NEMKO, UL |
CE, GS/NEMKO, UL |
| Line-Interactive/Smart Active efficiency | 98% | 98% |
98% |
98% |
| Noise (at 1 m) | <40 [bBA] (ECO Mode) | <40 [bBA] (ECO Mode) |
<40 [bBA] (ECO Mode) |
<40 [bBA] (ECO Mode) |
| Operating temperature | 0 °C - +40 °C | 0 °C - +40 °C |
0 °C - +40 °C |
0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing | 5-95% non-condensing |
5-95% non-condensing |
5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage; Directive and Standards: RoHS compliant - Classification in accordance with IEC 62040-3 VFI - SS - 111; UL 1778:2014 and CSA C22.2 No. 107.3-14 | European directives: L V 2014/35/EU low
voltage; Directive and Standards: RoHS compliant - Classification
in accordance with IEC 62040-3 VFI - SS - 111; UL 1778:2014 and CSA
C22.2 No. 107.3-14 |
European directives: L V 2014/35/EU low
voltage; Directive and Standards: RoHS compliant - Classification
in accordance with IEC 62040-3 VFI - SS - 111; UL 1778:2014 and CSA
C22.2 No. 107.3-14 |
European directives: L V 2014/35/EU low
voltage; Directive and Standards: RoHS compliant - Classification
in accordance with IEC 62040-3 VFI - SS - 111; UL 1778:2014 and CSA
C22.2 No. 107.3-14 |
| DATA | ||||
| Weight | 15 kg | 16 kg | 24.8 kg |
27.2 kg |
| Dimensions (h w d) | 450 x 87 x 425 mm | 450 x 87 x 425 mm |
450 x 87 x 625 mm |
450 x 87 x 625 mm |
| RIE0076 | SD2 1000VA | Ordered on Request | |
| RIE0075 | SD2 1500VA | Ordered on Request | |
| RIE0074 | SD2 2200VA | Ordered on Request | |
| RIE0073 | SD2 3000VA | Ordered on Request |
