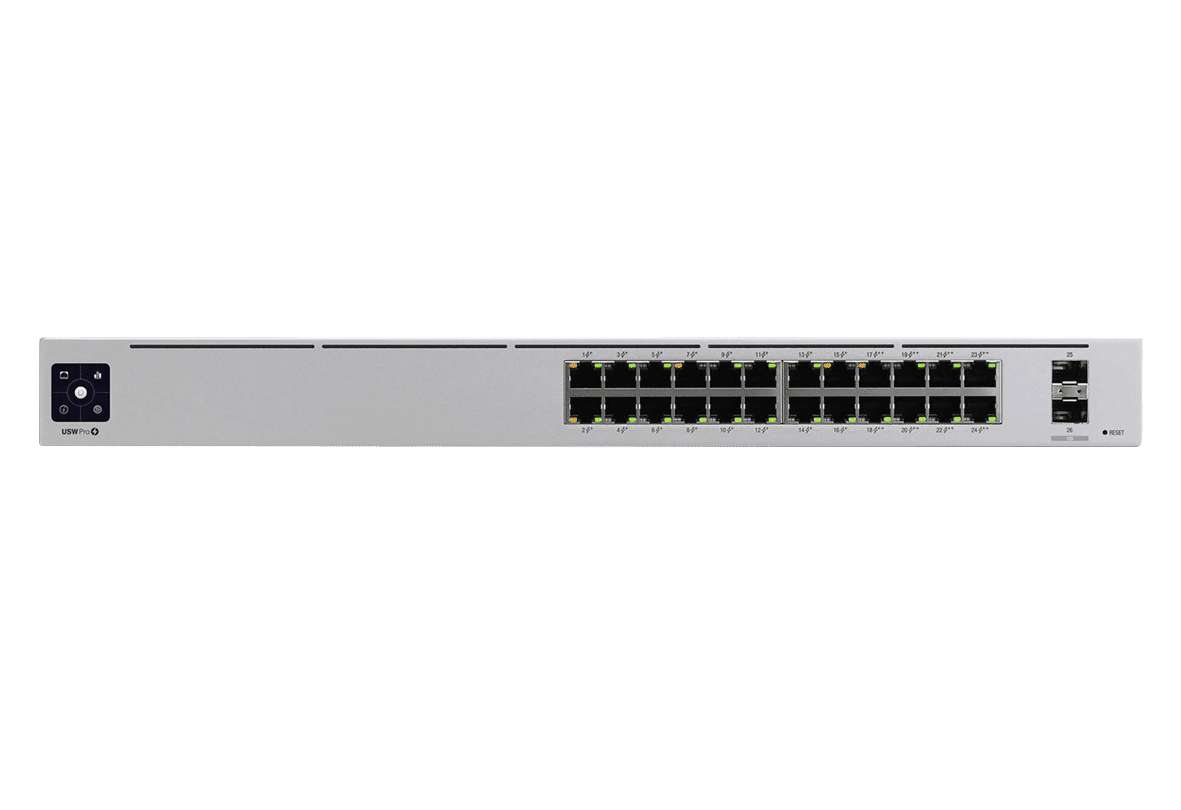

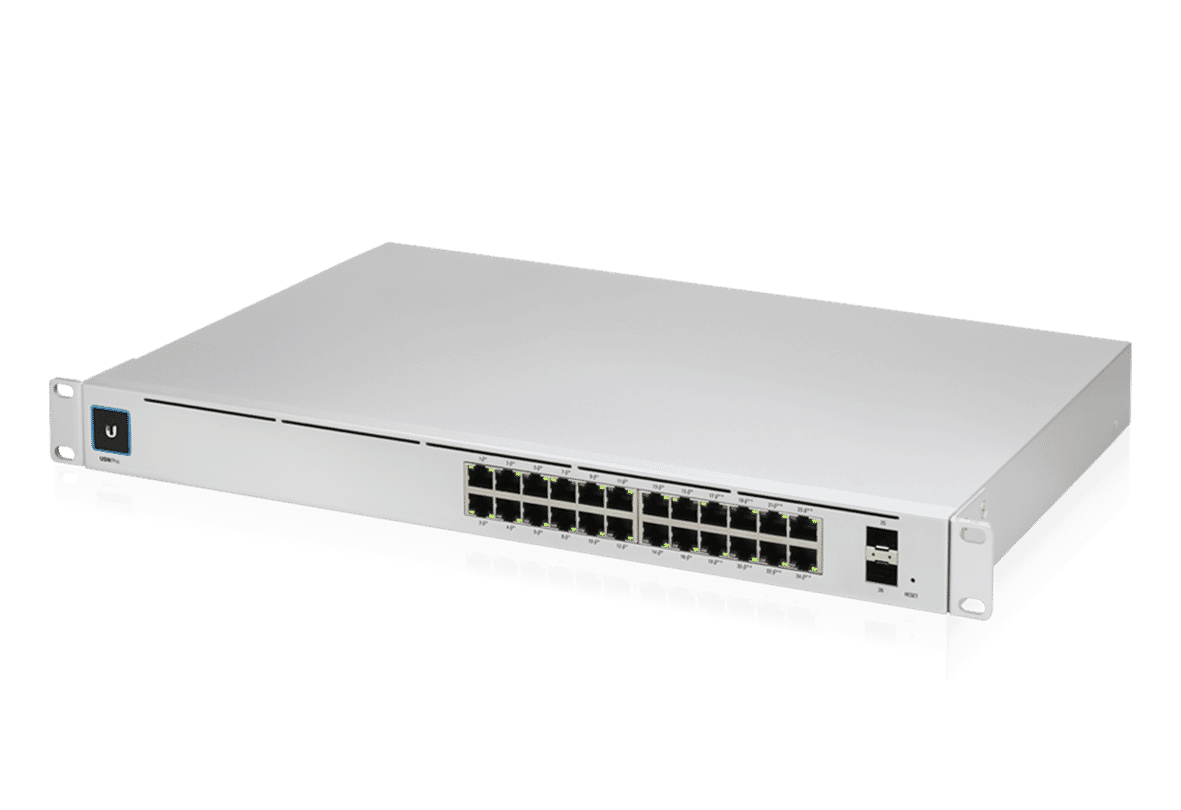

Ubiquiti UniFi USW-PRO-24-POE 24-Port PoE Managed L2/L3 Gigabit Switch
Ubiquiti UniFi USW-PRO-24-POE 24-Port PoE Managed L2/L3 Gigabit Switch
swipe to view images
fullscreen

Ubiquiti UniFi USW-PRO-24-POE 24-Port PoE Managed L2/L3 Gigabit Switch

Rated 0/5   0 reviews | 0 Questions
Ubiquiti logo Ubiquiti
  • 24 x PoE RJ45 Ports
  • 2 x 10G SFP+ ports
  • 1.3” touch Screen
Link to videos

The Ubiquiti UniFi USW-PRO-24-POE is a managed PoE switch that features 24 x 10/100/1000 RJ45 ports, 2 x 1/10G SFP+ Ethernet Ports & a 1.3” touch LCM (Read more)

Loading
£681.97
£568.31 Ex VAT
74 reward points
Availability On request only - Special order Non-returnable
Delivery From FREE* Inc VAT
Product Code18068
ModelUSW-PRO-24-POE
SPECIAL ORDER / NON-RETURNABLE ITEM
Orders placed before 15:30 will be processed today
Secure transaction
More Information

PRODUCT DETAILS

The Ubiquiti UniFi USW-PRO-24-POE is a managed PoE switch that features 24 x 10/100/1000 RJ45 ports and 2 x 1/10G SFP+ Ethernet Ports. The first 16 ports are IEEE 802.3af/at PoE+, and ports 17 - 24 are 60W IEEE 802.3bt PoE++. 16 PoE+ and 8 PoE++ RJ45 ethernet ports have total 400W PoE budget, and 2 SFP+ ports offer 10Gbps uplink options. The USW-PRO-24-POE also features a 1.3” touch LCM to provide status information.


Application



Interface



Features:

  • (16) GbE PoE+, (8) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 400W total PoE availability
  • DC power backup-ready
  • Layer 3 switching
  • Near-silent cooling
YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS
Mechanical
Dimensions
442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7")
Weight
Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-band
Networking interface
(24) GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface
(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput
44 Gbps
Switching capacity
88 Gbps
Forwarding rate
65.472 Mpps
Power method
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A
Power supply
AC/DC, internal, 450W
Supported voltage range
100—240V AC
Max. power consumption
50W (Excluding PoE output)
Total available PoE
400W
Max. PoE wattage per port by PSE
PoE+: 32W
PoE++: 64W
Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection
Air: ± 16kV, contact: ± 12kV
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Shock and vibration
ETSI300-019-1.4 Standard
Operating temperature
-5 to 40° C (23 to 104° F)
Operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
LEDs
System
Status
Ethernet
PoE
Speed/link/activity
SFP+
Speed/link/activity
RPS
Status
