Mercusys HALO H1200G (3-PACK) AC1200 Home Mesh Wi-Fi System, Dual Band, AP Mode
Mercusys
- Mesh Networking
- Up to 2,800 sq. ft
- Up to 867 Mbps
The Mercusys HALO H1200G is a powerful dual-band mesh Wi-Fi system designed to eliminate dead zones and deliver fast and seamless internet coverage. (Read more)
PRODUCT DETAILS
The Mercusys HALO H1200G is a powerful dual-band mesh Wi-Fi system designed to eliminate dead zones and deliver seamless, high-speed internet coverage throughout your entire home or small office. With advanced mesh technology and gigabit Ethernet support, the HALO H1200G ensures consistent, reliable connectivity for streaming, gaming, and smart home devices in every corner.

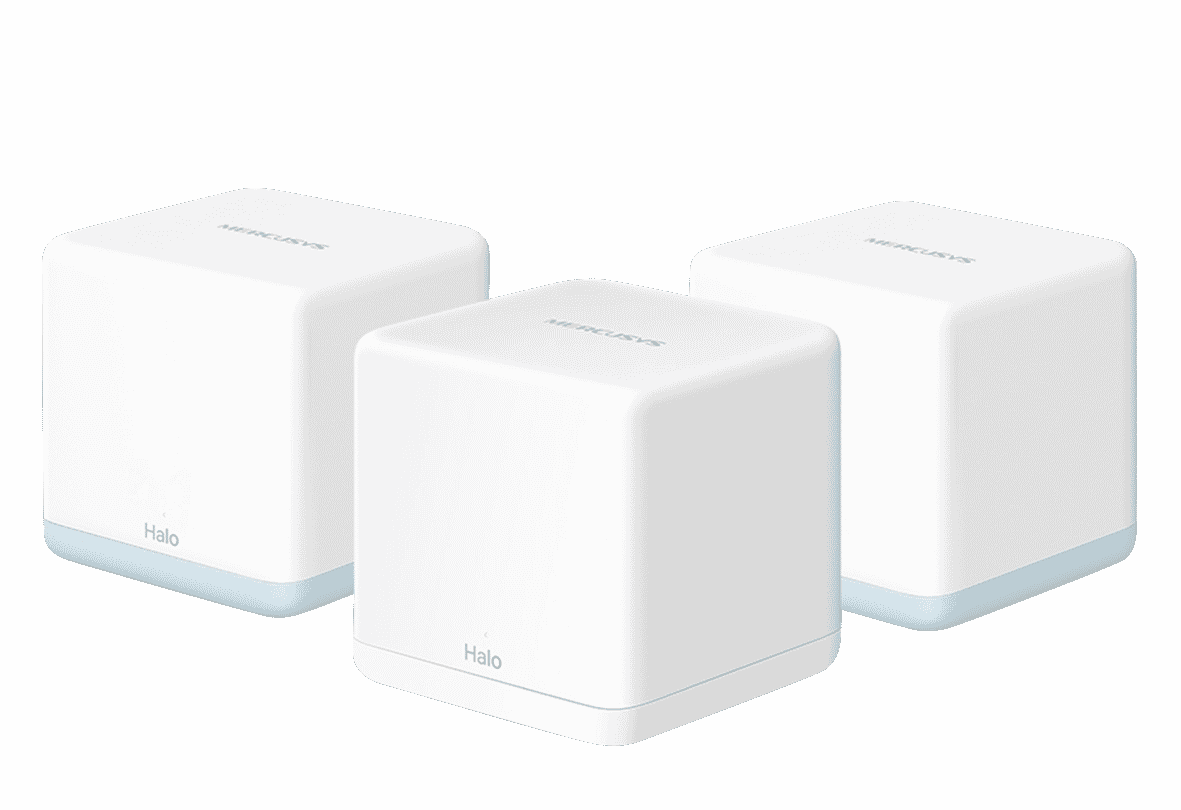

Supplied as a 3-pack system, the HALO H1200G units work together to form a unified Wi-Fi network, automatically connecting your devices to the strongest signal as you move around your space.

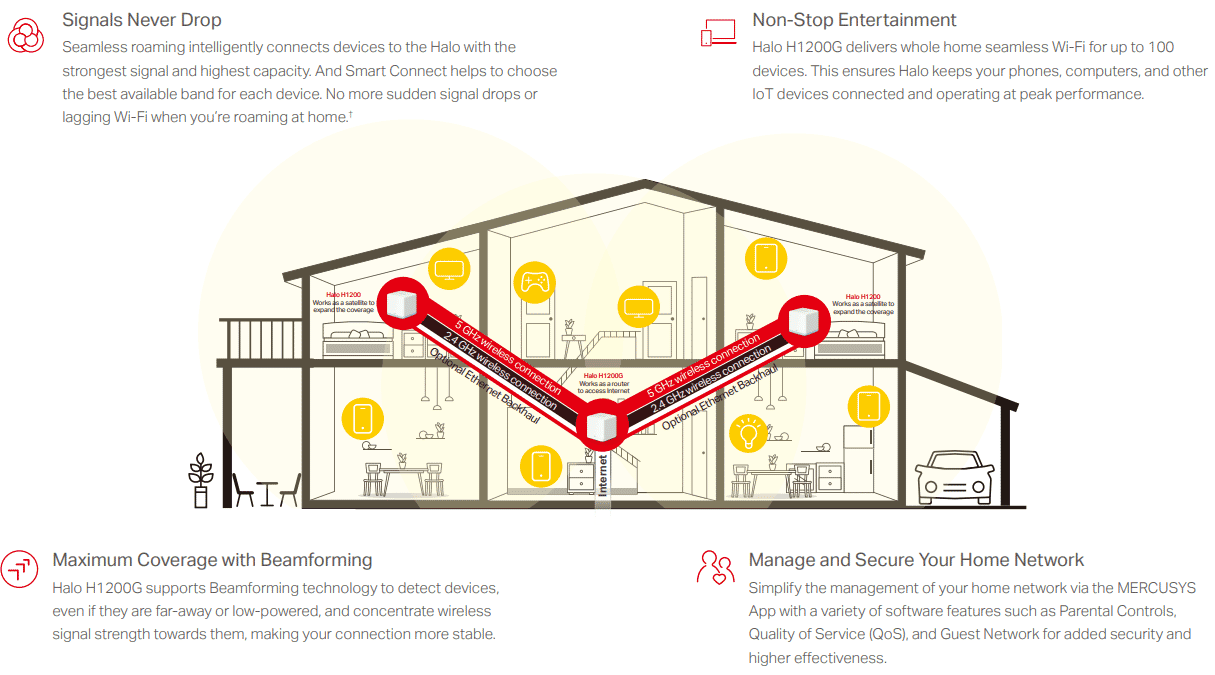

A Whole Home Wi-Fi Solution
Halo works as a unified system to guarantee a strong Wi-Fi signal in every corner of your home. Mercusys Mesh Technology provides an incredibly fast and stable user experience when you walk around your home. Interruption and buffering will be a thing of the past.
Features:
- Dual-band AC1200 Wi-Fi (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)
- Seamless mesh networking – move from room to room with uninterrupted Wi-Fi
- Covers up to 2,800 sq. ft / 260 m² with strong, reliable wireless signal
- Smart roaming & load balancing for optimal performance on all connected devices
- 2× Gigabit Ethernet ports per unit for high-speed wired connections
- Easy setup via the Mercusys app for quick installation and management
- Compatible with all major internet service providers and modems
| Wireless |
|
| Wireless Standards |
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n
2.4 GHz |
| Signal Rate |
867 Mbps on 5 GHz, 300 Mbps on 2.4
GHz |
| Mesh protocol |
802.11k/v/r |
| EIRP |
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
| Reception Sensitivity |
2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-73dBm 5GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-72dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm |
| Software |
|
| Working Mode |
Router, Access Point |
| WAN Type |
Dynamic IP/Static
IP/PPPoE/L2TP/PPTP |
| DHCP |
Server, Client |
| Protocols |
Supports IPv4 and IPv6 |
| Guest Network |
2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Features |
Parental Controls, QoS (Quality of Service), Reporting,
Assisted Setup, Address Reservation, Port Forwarding, Mercusys
DDNS, VLAN, IPv6, LED Control |
| Management |
Local Management, Remote Management, Multi-Managers |
| Wireless Security |
WPA-PSK/WPA2-PSK |
| Hardware |
|
| Ports |
2× Gigabit Ports (WAN/LAN auto-sensing) |
| Button |
Reset button |
| Dimensions (W x D x H) |
88 × 88 × 88 mm (3.5 × 3.5 × 3.5 in) |
| Others |
|
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% Non-Condensing Storage Humidity: 5%~90% Non-Condensing |
| Package Contents for Halo H1200G (3-pack) |
1× Halo H1200G Unit + 2× Halo H1200 Units 1× RJ45 Ethernet Cable 3× Power Adapters 1× Quick Installation Guide |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Mercusys HALO H1200G Datasheet |
| Links* |
|---|
| Mercusys website |
| Mercusys support site |
