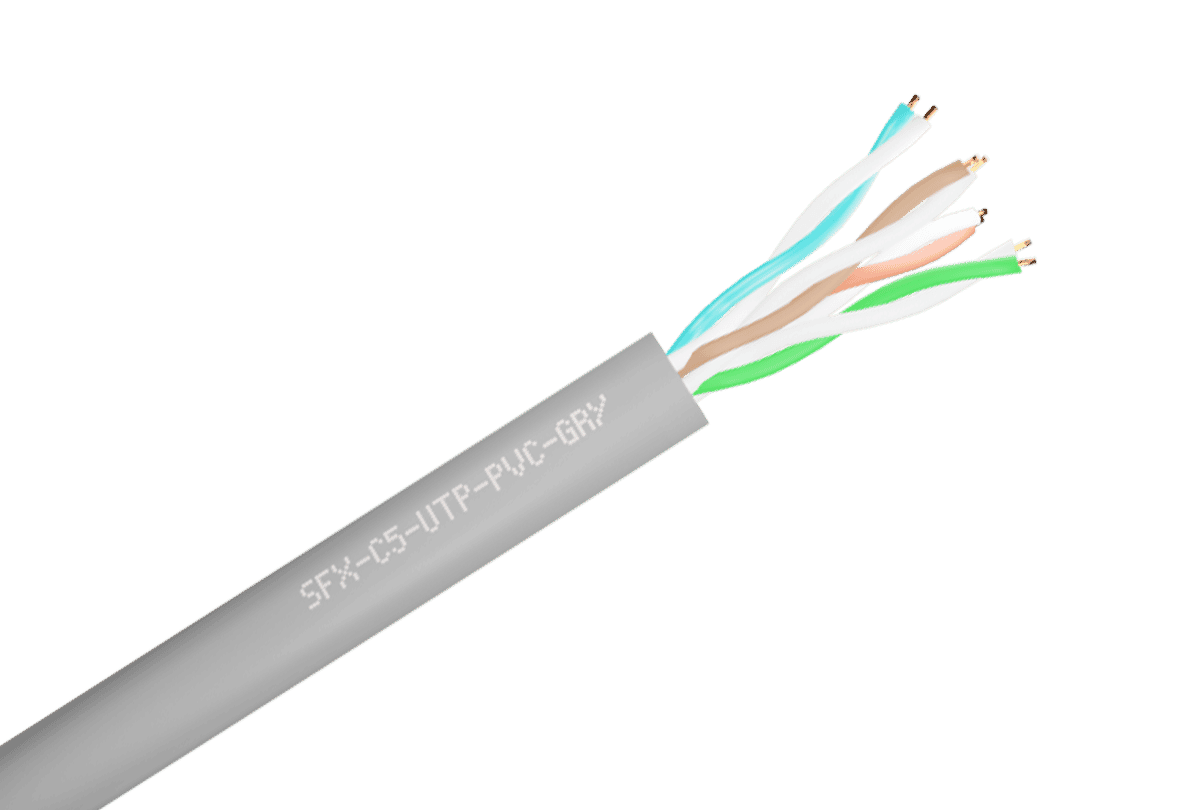

Cat 5e UTP PVC Grey Solid Network Cable
SFX Cables
- 50, 100 or 305 Metres
- Solid copper conductor
- Internal use
A high quality Cat 5e PVC network cable with a solid copper conductor for indoor use and supplied on reels of 50 or 100 metres or in 305 metre boxes (Read more)
PRODUCT DETAILS
This high-quality Cat 5e network cable has a flexible PVC sheath and a solid copper conductor for superior performance over long distances and better durability.
PVC network cable is suitable for indoor use in low occupancy buildings where a halogen free alternative is not required.
Our Cat 5e PVC network cable is supplied on 50 or 100 metre reels or in 305 metre easy pull boxes.
Features:
- High quality cable with solid copper conductor
- Lightweight flexible PVC sheath
- Available in 50, 100 or 305 metre lengths
| Conductor | Bare Copper |
| Conductor Diameter (mm) | 0.47 ±0.01, 0.47 ±0.02 |
| Insulation | HDPE |
| Insulation Thickness (mm) | 0.18 |
| Insulation Colour | Blue/White/Blue; Orange/White/Orange; Green/White/Green; Brown/White/Brown |
| Insulation Thickness 2 (mm) | 0.88 ±0.08 |
| Nylon Rip-Cord | White 210D |
| Jacket | PVC |
| Jacket Colour | Grey RAL 7004 |
| Jacket Thickness (mm) | 0.49 ±0.03 |
| Overall Diameter (mm) | 4.80 ±0.03 |
| Overall Sheath | PVC |
| Overall Colour | Grey |
| Standards | ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU, RoHS2 2011/65/EU |
| CPR | Eca |
| Application | Internal Data and CCTV transmission up to 100Mb/s |
| EAN | 5056631502180 |
| AWG | 24 |
| Impedance (1-100MHz) | 100O ±15O |
| Drain Wire | N |
| Weight | 2.9 |
| Flame Propagation Standard | Eca |
| SFX0060 | Cat 5e UTP PVC 50m | In stock | |
| SFX0061 | Cat 5e UTP PVC 100m | In stock | |
| SFX0144 | Cat 5e UTP PVC 305m | In stock |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Cat 5e UTP PVC datasheet |
| Links* |
|---|
| No links available |
