Excel Cat 6 LS0H U/UTP 24 AWG Network Cable 305m
Excel
- High quality cable
- Easy pull boxes
- Professional use

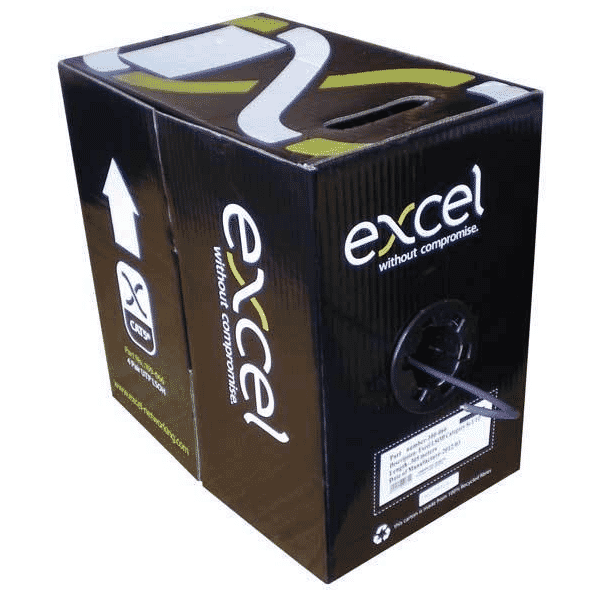

The Excel LSZH category 6 network cable is a high quality solid copper halogen free network cable that is supplied on easy pull 305 meter boxes (Read more)
PRODUCT DETAILS
The Excel 100-080 Cat 6 LS0H network cable is a high quality halogen free network cable designed for professional installation. The cable is manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Category 6 specifications to ensure consistent high levels of performance.
The cable is constructed with 8 colour coded pairs of solid copper conductors around a cross-member and enclosed in a low smoke halogen free jacket. The cable is meter marked and supplied on easy pull boxes to for fast convenient installation.
Excel data cable has a limited 25 year warranty.
Key features
- Category 6 specification
- 24 AWG
- Meets ISO 11801
- 25 Year Warranty
- Sequential Metre Marking
- Fast Feed Box
- Euroclass Dca-s2-d2-a1
| Specifications | |
| Category: | 6 |
| Total number of cores: | 8 |
| Stranding element: | Pairs |
| Outer sheath material: | LSOH (Copolymer, thermoplastic) |
| Low smoke (acc. EN 61034-2): | yes |
| Halogen free (acc. EN 60754-1/2): | yes |
| Reaction-to-fire class according to EN 13501-6: | Dca |
| Smoke development class according to EN 13501-6: | s2 (limited smoke production) |
| Euro class flaming droplets/particles according to EN 13501-6: | d2 (flaming droplets/particles persisting > 10 s) |
| Euro class acidity according to EN 13501-6: | a1 |
| Overall screening: | None |
| Conductor screening: | None |
| Outer sheath colour: | Violet |
| Conductor category: | Class 1 = solid |
| AWG-size: | 24 |
| Number of strands: | 1 |
| Conductor material: | Cu, bare |
| Core insulation: | PE |
| Core identification: | Colour |
| Flame retardant: | In accordance with EN 60332-1-2 |
| Outer diameter approx.: | 5.4 mm |
| NVP value: | 69 % |
| Operating Temperature Range: | -10°C to 60 °C |
| Installation Temperature Range: | -10°C to 60 °C |
| Videos |
|---|
| No videos available |
| Files |
|---|
| No files available |
| Links* |
|---|
| Excel website |
| Excel support site |
