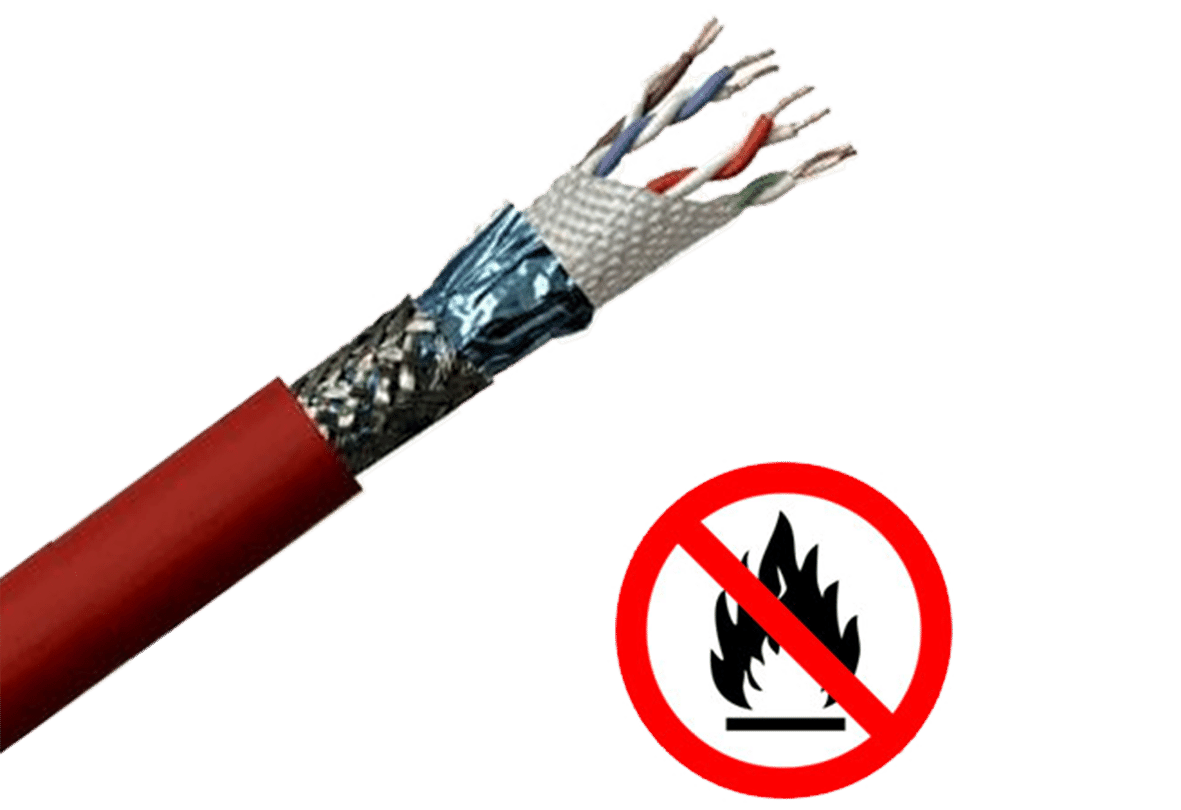

Fire Resistant Class LPCB Cat 5e FTP Shielded Network Data Cable
Fire Resistant Class LPCB Cat 5e FTP Shielded Network Data Cable
Fire Resistant Class LPCB Cat 5e FTP Shielded Network Data Cable
swipe to view images
fullscreen

Fire Resistant Class LPCB Cat 5e FTP Shielded Network Data Cable

Rated 0/5   0 reviews | 0 Questions
SFX Cables logo SFX Cables
  • LPCB approved
  • Low Smoke Zero Halogen
  • Overall Foil Screen

Our screened LPCB approved Cat5e halogen free network cable is the ideal solution for network installations in densley populated areas such as schools (Read more)

Loading

There are 4 variants of this product

£168.76 - £1,687.50
£140.63 - £1,406.25 Ex VAT
More Information
RELATED PRODUCTS

PRODUCT DETAILS

Our screened LPCB approved Cat5e halogen free network cable is the ideal solution for network installations where proximity to electromagnetic interference is an issue. The cable has an overall foil screen which when used with screened modular plugs provides end to end protection against interference.

The LSZH jacket meets building and fire regulations for the installation of networks in densely populated areas such as schools, retail shops and offices.

The FTP LSZH Cat5e is constructed with 4 pairs of solid copper conductors in colour coded HDPE insulation and a low smoke halogen free jacket. It is supplied in 50m, 100m, 200m and 500m reels.


Features:

  • Overall foil screen to prevent interference
  • Low smoke halogen free sheath
  • Quality cable with solid copper conductors
  • Capable of 100mbps transfer speed or 100mhz frequency at a maximum distance of 90 meters
  • 50m, 100m, 200m and 500m reels available
YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS
Conductor Bare Copper
Conductor Diameter (mm) 0.625 ±0.01
Insulation HDPE
Insulation Thickness (mm) 0.1
Insulation Colour Clear (x8)
Insulation Thickness 2 (mm) 0.92 ±0.08
Jacket LSZH
Jacket Colour Red RAL 3017
Jacket Thickness (mm) 1.35 ±0.20
Overall Diameter (mm) 10.00 ±0.20
Overall Sheath LSZH
Overall Colour Red
Standards ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU, RoHS2 2011/65/EU
CPR LPCB
Application For use where the data cable is required to keep functioning in the event of a fire.
EAN 5056631501763
AWG 22
Outer Insulation Silicon Rubber
Outer Insulation Colour(s) Blue, White; Orange, White; Green, White; Brown, White
Drain wire conductor Tinned Copper
Close Weave Glass Tape >=115%
AI-PET Shield >=115%
Braid Tinned Copper
Braid Construction 0.12 ±0.008 x 24 x 7
Braid Coverage 72% ±5%
Velocity Ratio 0.58
Impedance (1-100MHz) 100O ±15O
Manufactured to BS EN50200 2000 >2hrs@950°C
Manufactured to IEC60331-23 >3hrs@750°C
Drain Wire Y
Weight 0.27
VARIANTS
SFX0279 Cat 5e FTP 50m £168.76 Ordered on Request
SFX0280 Cat 5e FTP 100m £337.50 Ordered on Request
SFX0281 Cat 5e FTP 200m £675.00 Ordered on Request
SFX0282 Cat 5e FTP 500m £1,687.50 Ordered on Request
