Hikvision DS-2CE12DF3T-PIRXOS 2MP TVI ColorVu Bullet with Siren 3.6mm
The Hikvision DS-2CE12DF3T-PIRXOS is a 2MP Bullet camera with a siren/strobe and ColorVu technology for full colour imaging in zero light conditions (Read more)
PRODUCT DETAILS
The Hikvision DS-2CE12DF3T-PIRXO is a 2MP TVI bullet camera with a 3.6mm fixed lens, ColorVu technology and siren audio. Using 130dB true WDR technology, this camera provides clear images against strong backlighting and additional 3D DNR (Digital Noise Reduction) delivers clean, sharp images. An in-built active strobe light and audio alarm also helps to warn intruders whilst the built-in mic can put sound to those images.
ColorVu Technology
Colorvu is the name for Hikvision's ultra low light technology. Colorvu technology is designed to deliver clear colour images in scenes with almost no light without relying on infrared. Colorvu works by combining large image sensors with advanced image processing which in independent tests has proven to deliver the best images in scenes with very little light.
Colorvu cameras often feature a built-in white light that can provide illumination in complete darkness which allows Colorvu cameras to deliver full colour images 24 hours a day regardless of the lighting condition.
Having colour images helps with subject identification, number plates capture and provides accurate context which is lost on conventional cameras.
Audio and Visual Deterrent
Siren and Warning Lights
Sometimes prevention is better than cure, especially when it comes to intruders on your property.
As a first line of defence the Hikvision DS-2CE12DF3T-PIRXOS has an integrated alarm and red/blue strobe light that will activate once the intelligent heat-sensitive passive infrared (PIR) recognise a human.
As well as a great deterrent, the sudden sound and noise often makes the intruder look up at the camera, giving you a much better chance of a clear face image.
2 Way Audio
In addition, the DS-2CE12DF3T-PIRXO features a high quality noise cancelling microphone which provides an audio feed alongside the video and allows a 2 way conversation over the camera system.
Features:
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- Detects human body through heat-sensitive passive infrared (PIR)
- Active strobe light and audio alarm to warn intruders off
- High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
- Water and dust resistant (IP67)
Camera | |
Image Sensor | 2 MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
Day & Night | 24/7 Color Imaging |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
Signal System | PAL/NTSC |
Slow Shutter | Max. 16 times |
Lens | |
Lens Type | 3.6 mm fixed focal lens |
Focal Length & FOV | 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91° |
Lens Mount | M12 |
Illuminator | |
Supplement Light Range | Up to 40 m |
Smart Supplement Light | Yes |
Supplement Light Type | White Light |
Image | |
Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC |
Frame Rate | TVI: 1080p @ 25 fps/30 fps |
Day/Night Mode | Colour |
Wide Dynamic Range (WDR) | ≥130 dB |
Image Enhancement | WDR, BLC, HLC, Global, HLS |
Privacy Mask | 4 programmable privacy masks |
Noise Reduction | 3D DNR/2D DNR |
White Balance | Auto/Manual |
Supplement Detection(PIR) | |
PIR Range | 11 m |
PIR Angle | Angle : 110° |
Interface | |
Video Output | 1 HD analogue output |
Alarm | 1 line out Flashing Light Alarm (Red & Blue) |
Audio | Built-in mic |
Event | |
Motion Detection | 4 programmable motion areas |
General | |
Power | 12 VDC ± 25%, max. 11.4 W *You are recommended to use one power adapter to supply the power for one camera. |
Material | Front cover: Metal, Main body: Plastic |

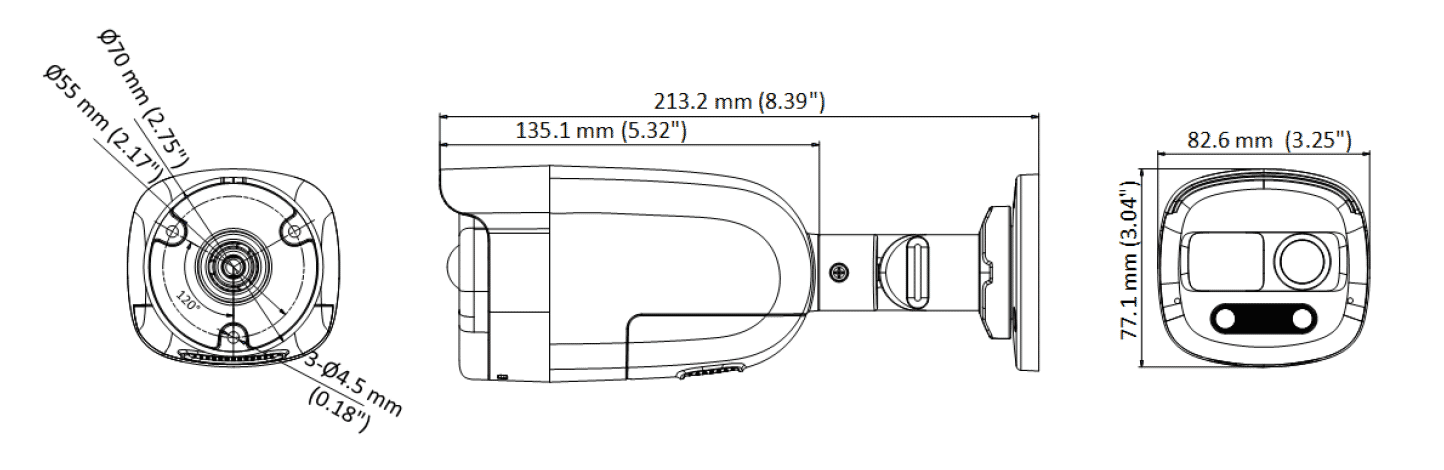

Dimension | 82.6 mm × 77.1 mm × 213.2 mm (3.25" × 3.04" × 8.39") |
Weight | Approx. 467 g (1.03 lb.) |
Operating Condition | -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing) |
Communication | HIKVISION-C |
Language | English |
Approval | |
Protection | IP67 |
Videos |
---|
Files |
---|
Hikvision DS-2CE12DF3T-PIRXOS User Manual |
Hikvision DS-2CE12DF3T-PIRXOS Datasheet |
Hikvision DS-2CE12DF3T-PIRXOS Quick Start Guide |
Links* |
---|
Hikvision website |
Hikvision support site |
