Hikvision DS-2CE16H8T-IT3F 5MP TVI Low Light Bullet 2.8mm
Hikvision
- Up to 60m IR Range
- 5 Megapixel Resolution
- 3 year guarantee
The Hikvision DS-2CE16H8T-IT3F is a 5 megapixel, low light, analogue bullet CCTV camera with 4 switchable signals, TVI/AHD/CVI/CVBS, & IR up to 60m (Read more)
PRODUCT DETAILS

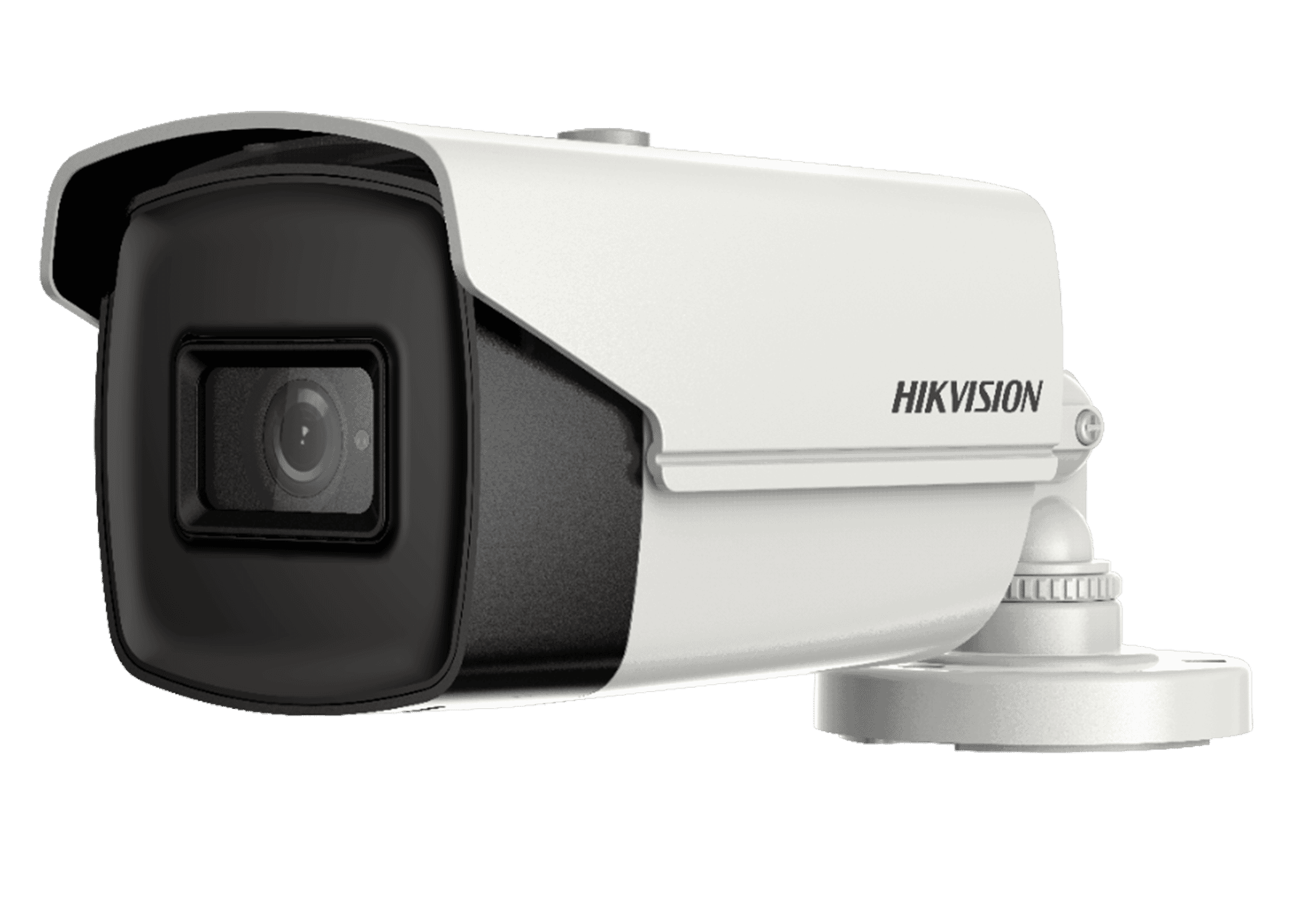

The Hikvision DS-2CE16H8T-IT3F is a 5MP analogue bullet camera with a 2.8mm fixed lens and support for all major video formats including TVI/AHD/CVI/CVBS.
EXIR 2.0
TheDS-2CE16H8T-IT3F also comes with EXIR 2.0 technology as standard. This is designed to eliminate problems that occur with more traditional IR. By housing the IR LED's away from the camera lens the chance of IR bleeding or internal reflection is completely eliminated. This offers better IR coverage and stops insects and spiders blocking the lens when searching for the heat of the IR sensor.
Features:
- 5 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Camera | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Colour: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length & FOV | 98° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Settings | Brightness; Sharpness; Mirror; Smart IR; AGC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps,
2MP@25fps,2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC; WDR |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS;1 HD analogue output |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera., Max. 5.8 W |
| Material | Metal |
| Dimension | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58") |
| Weight | Approx. 570 g (1.26 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-2CE16H8T-IT3F Datasheet |
| Hikvision DS-2CE16H8T-IT3F Quick Start Guide |
| Hikvision DS-2CE16H8T-IT3F User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
