Hikvision DS-2CE16U1T-IT3F 8MP 4K TVI Bullet 3.6MM
Hikvision
- 8MP 4K resolution
- Up to 60M Smart IR
- 3 year guarantee
The Hikvision DS-2CE16U1T-IT3F is an ultra high resolution 8MP 4K fixed lens analogue bullet CCTV camera with infrared night vision up to 60 metres (Read more)
PRODUCT DETAILS

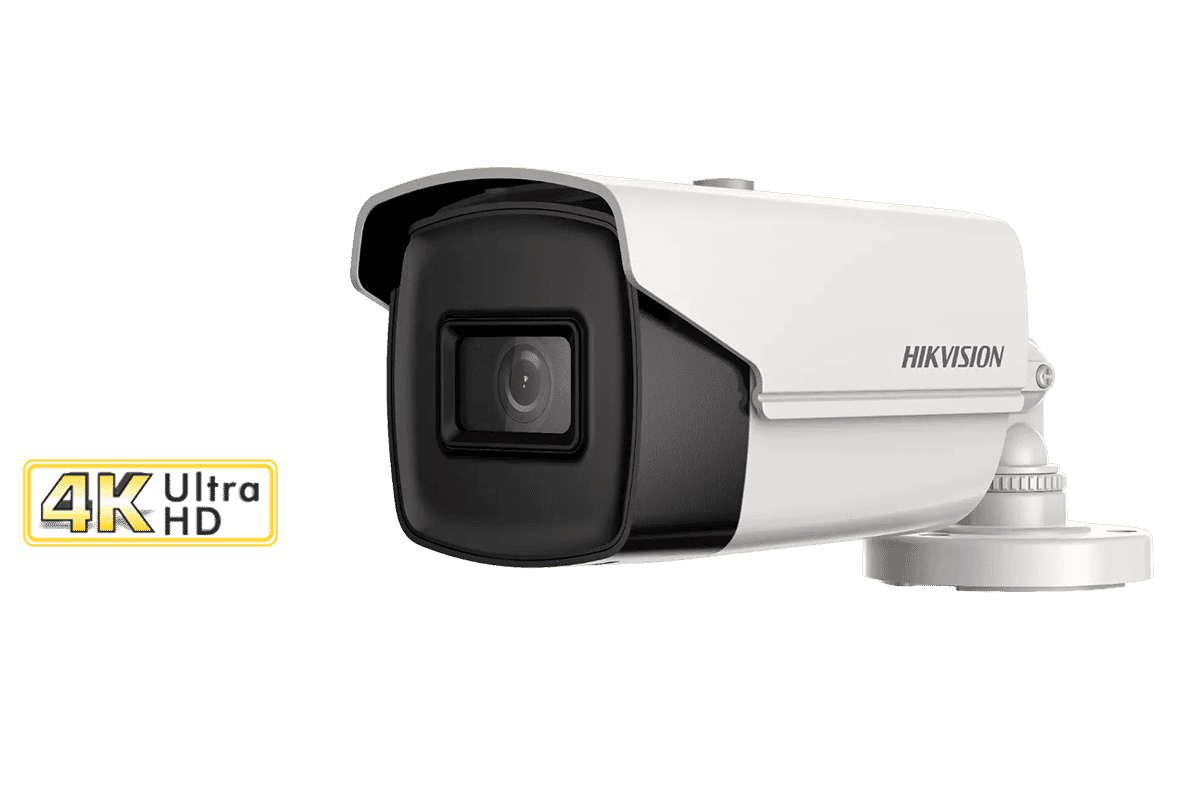

The Hikvision DS-2CE16U1T-IT3F is an ultra-high resolution 8 mega-pixel 4K analogue bullet style CCTV camera that has powerful infrared LED's for night vision up to 60 metres.
Ultra-High Resolution 4K Images
The Hikvision DS-2CE16U1T-IT3F uses an ultra-high resolution 4K image sensor to deliver stunning images with exceptional levels of detail over conventional analogue cabling infrastructure.
This allows a single camera to cover a large area without losing important image detail.
Please note: Ultra high-resolution analogue cameras are more susceptible to interference. To ensure best results install a dedicated power supply for each camera, avoid cabling near sources of interference and use a power filter (included) for longer cable distances.
Features
- 8 MP bullet camera
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Camera | |
| Image Sensor | 8.29 MP progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | 79° |
| Lens Mount | M16 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Settings | Brightness; Sharpness; AGC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC; HLC |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS 1 HD analogue output |
| General | |
| Power | 12 VDC ± 25%, max. 5.3 W *You are recommended to use one power adapter to supply the power for one camera. |
| Material | Front cover: Metal, Main body: Plastic |

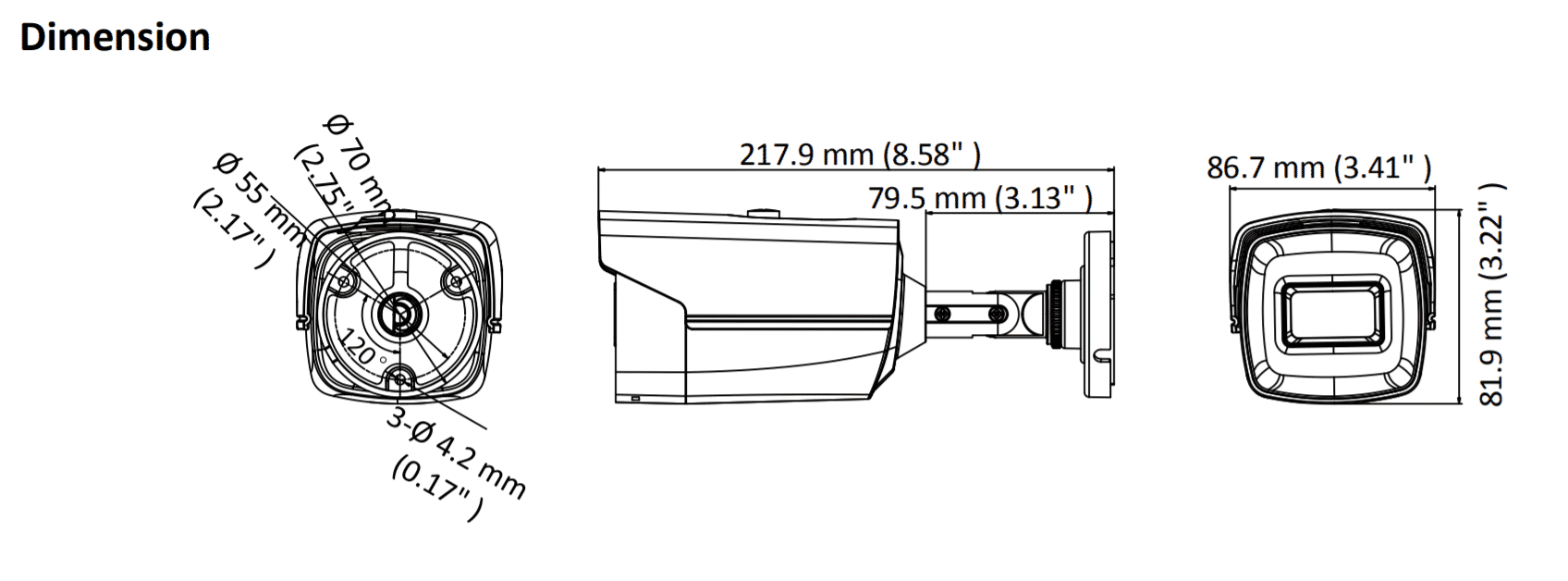

| Dimension | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58") |
| Weight | Approx. 435 g (0.96 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
| Videos |
|---|
| -- No videos available -- |
| Files |
|---|
| Hikvision DS-2CE16U1T-IT3F datasheet |
| Hikvision DS-2CE16U1T-IT3F Quick Start Guide |
| Hikvision DS-2CE16U1T-IT3F User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
