Hikvision DS-2CE76D0T-ITMFS 2MP TVI Mini Turret 2.8mm
Hikvision
- Built in Microphone
- Audio Over Coax
- 3 year guarantee
Hikvision DS-2CE76D0T-ITMFS 2 Megapixel analogue camera with a 2.8mm fixed lens, a 30m IR range and a built in microphone featuring audio over coax (Read more)
PRODUCT DETAILS
The Hikvision DS-2CE76D0T-ITMFS is a 2 Megapixel analogue turret camera with a 2.8mm fixed lens. The built in microphone provides real time audio security over a single coax cable, making installation quick and easy.
Featuring a high-quality metal case with a IP67 rating against dust and water ingress and an infrared range of up to 30 metres.
The DS-2CE76D0T-ITMFS has universal BNC video and DC power connectors and can be switched between several analogue video formats including TVI, CVI, AHD and CVBS allowing it to be used on most modern CCTV recorders.
EXIR 2.0
EXIR 2.0 is designed to eliminate problems that occur with more
traditional Infrared such as IR bleeding or internal reflection. As
EXIR 2.0 no longer relies on a secondary IR sensor the cameras are
smaller and more discreet. They also offer improved heat
dissipation and an increased lifespan by as much as 20,000
hours.
Features:
- 2 MP coaxial audio camera
- Enhancing safety with discreet and economical built-in microphone
- Transmits audio over the coaxial cable
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | Yes |
| White Balance | Auto/Manual |
| AGC | Support |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |

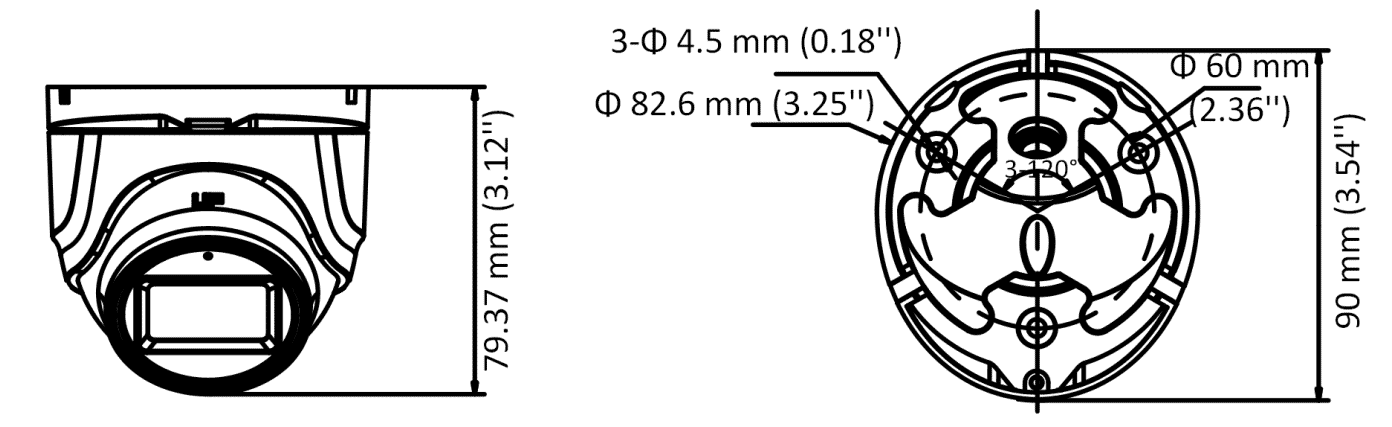

| Dimension | 82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12") |
| Weight | Approx. 289.5 g (0.64 lb.) |
| Operating Condition | ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 3.7 W |
| IR Range | Up to 30 m |
| Approval | |
| Protection | IP67 |
| Videos |
|---|
| -- No videos available -- |
| Files |
|---|
| Hikvision DS-2CE76D0T-ITMFS User Manual |
| Hikvision DS-2CE76D0T-ITMFS Quick Start Guide |
| Hikvision DS-2CE76D0T-ITMFS Datasheet |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
