Hikvision DS-2CE78H0T-IT3E 5MP TVI PoC Turret 2.8mm
Hikvision
- Power over Coax
- IP67 Rated
- Up to 40m IR Distance
The Hikvision DS-2CE78H0T-IT3E is a 5 Mega Pixel analogue turret camera with a fixed 2.8 mm lens, an IR range of up to 20 metres and Power over Coax (Read more)
PRODUCT DETAILS
The Hikvision DS-2CE78H0T-IT3E is a 5 Megapixel vandal resistant dome style camera with a 2.8mm fixed lens and an IP67 rated metal body to protect it against dust and water ingress. A 40 metre IR distance provides clear imaging at night, and Digital WDR and 2D DNR eliminate issues caused by back lighting and noise.
The DS-2CE78H0T-IT3E can be powered directly from a 12 Volt DC power supply or by using Hikvision's power over coax technology on compatible recorders.

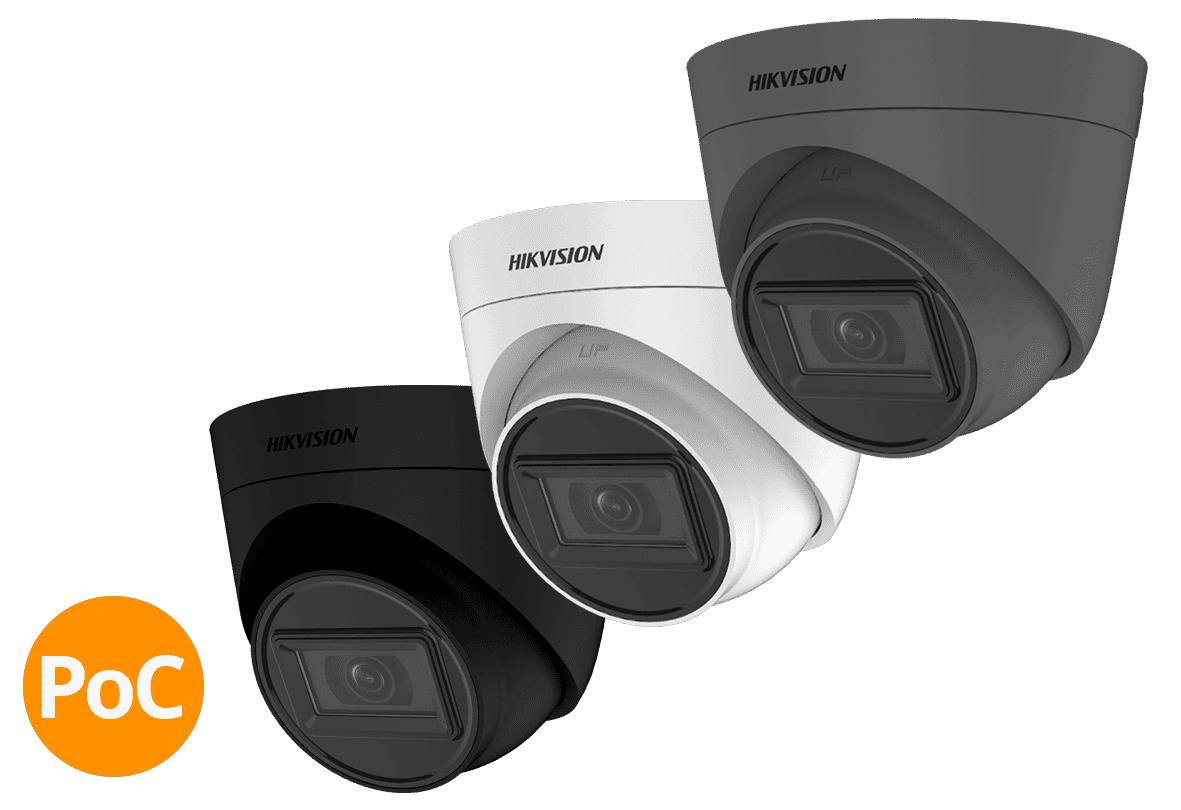

Available in white or grey.
Features:
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 2.8 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110° |
| Lens Mount | M12 |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video Output | 1 HD analogue output |
| General | |
| Material | Front Cover: Plastic Main Body: Metal |
| Dimension | 91.0 mm × Ø109.8 mm (3.58" × Ø4.32") |
| Weight | Approx. 326 g (0.72 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ±25% PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. |
| Consumption | Max. 3 W |
| IR Range | Up to 40 m |
| Approval | |
| Protection | IP67 |
| 15654 | Hikvision DS-2CE78H0T-IT3E 2.8MM | In stock | |
| 16437 | Hikvision DS-2CE78H0T-IT3E/GREY 2.8MM | In stock |
| Videos |
|---|
| -- No videos available -- |
| Files |
|---|
| Hikvision DS-2CE78H0T-IT3E datasheet |
| Hikvision DS-2CE78H0T-IT3E quick start guide |
| Hikvision DS-2CE78H0T-IT3E user manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
