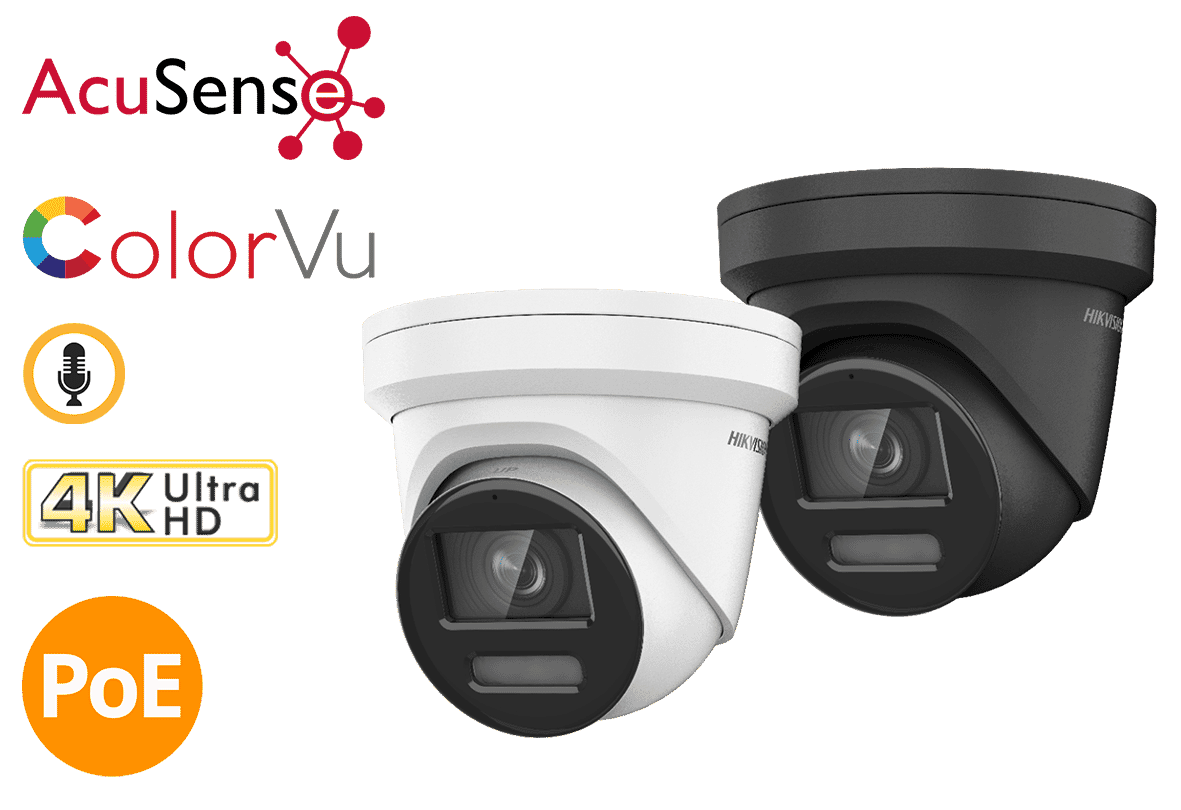

Hikvision DS-2CD2387G2-LU 8MP 4K IP Colorvu Acusense Audio Turret
Hikvision DS-2CD2387G2-LU 8MP 4K IP Colorvu Acusense Audio Turret
swipe to view images
fullscreen

Hikvision DS-2CD2387G2-LU 8MP 4K IP Colorvu Acusense Audio Turret

Hikvision Hikvision
  • Acusense technology
  • ColorVu with white light
  • Built in Microphone

The Hikvision DS-2CD2387G2-LU is an 8MP 4K hi-res network turret camera with AcuSense & ColorVu technology, a built-in microphone & H.265+ compression (Read more)

There are 3 variants of this product

Hikvision DS-2CD2387G2-LU 8MP 4K IP Audio Turret with ColorVu & AcuSense

The Hikvision DS-2CD2387G2-LU is an 8 Mega Pixel network turret camera with a built-in microphone for real-time audio security. AcuSense technology helps reduce false alarms by differentiating between humans and other triggers such as animals or branches and ColorVu provides a clear, colour image even in ultra-low light conditions. Other features include efficient H.265+ compression technology and 130 dB WDR to combat back lighting.


Deep Learning with AcuSense Technology


The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways

  • Alarm will only trigger when the preset intrusion type takes place
  • Related videos are sorted by categories for easier search

Users can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced


Colorvu - Colour Images in darkness

Colorvu is the name for Hikvision's new ultra-low light technology. Colorvu technology is designed to deliver clear colour images in scenes with almost no light without relying on infrared. Colorvu works by combining large image sensors with advanced image processing which in independent tests has proven to deliver the best images in scenes with very little light.

Colorvu cameras often feature a built-in white light that can provide illumination in complete darkness which allows Colorvu cameras to deliver full colour images 24 hours a day regardless of the lighting condition.

Having colour images helps with subject identification, number plates capture and provides accurate context which is lost on conventional cameras.



Features:

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Built-in microphone for real-time audio security(-U)
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)


You might also need

Product Specifications

Camera
Image Sensor1/1.2″ Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor:0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Day & Night24/7 Color imaging
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 3.1 m to ∞4 mm: 3.6 m to ∞
DORI
DORI2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
Video
Main Stream50 Hz:25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)130 dB
Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Built-in Microphone-LU: Yes
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))Scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
Deep Learning Function
Face CaptureYes
General
Power-L:12 VDC, 0.42 A, max. 5 WPoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W-LU:12 VDC, 0.46 A, max. 5.5 WPoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
MaterialCover: metal, main body: metal
DimensionØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Approx. 870 g (1.9 lb.)
With Package WeightApprox. 1160 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
Software ResetYes
Approval
EMCFCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
ProtectionIP67: IEC 60529-2013
Image Sensor1/1.2″ Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor:0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Day & Night24/7 Color imaging
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 3.1 m to ∞4 mm: 3.6 m to ∞
DORI2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
Supplement Light TypeWhite Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
Main Stream50 Hz:25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:24 fps (3840 × 2160)30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)130 dB
Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Built-in Microphone-LU: Yes
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))Scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
Face CaptureYes
Power-L:12 VDC, 0.42 A, max. 5 WPoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W-LU:12 VDC, 0.46 A, max. 5.5 WPoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
MaterialCover: metal, main body: metal
DimensionØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Approx. 870 g (1.9 lb.)
With Package WeightApprox. 1160 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
Software ResetYes
EMCFCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
ProtectionIP67: IEC 60529-2013

Product variants available

15612 DS-2CD2387G2-LU 2.8MM Back order
15613 DS-2CD2387G2-LU 4.0MM Back order
15615 DS-2CD2387G2-LU/BLACK 2.8MM Back order
