HiLook IPC-D180H-UF 8MP 4K Dome Camera with Audio 2.8mm
fullscreen

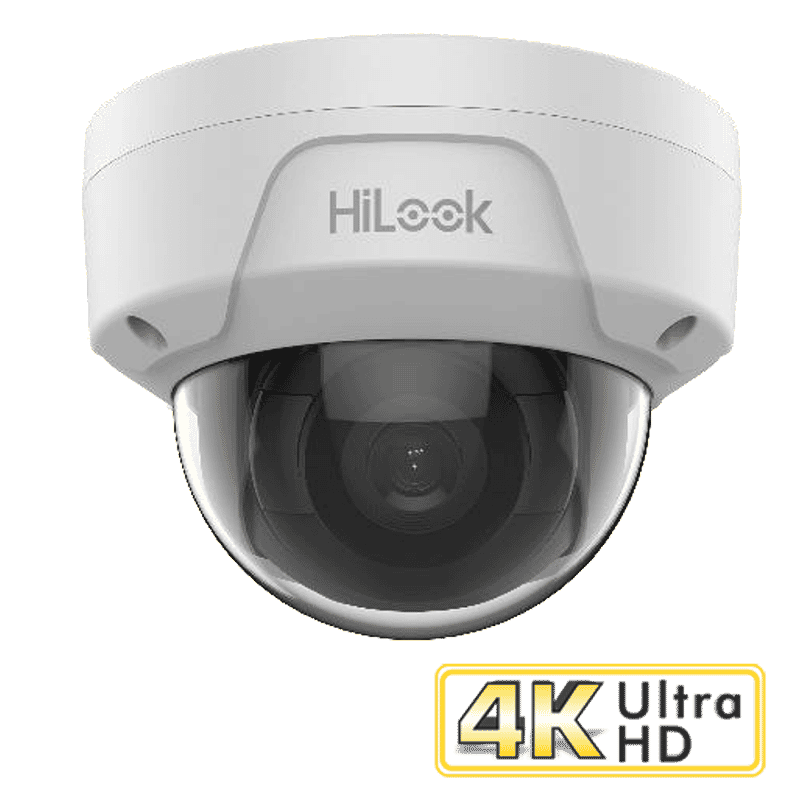

HiLook IPC-D180H-UF 8MP 4K Dome Camera with Audio 2.8mm

Rated 0/5   0 reviews | 0 Questions
HiLook by Hikvision logo HiLook by Hikvision
  • Built-In Microphone
  • Ultra-High 4K Resolution
  • Power Over Ethernet
  • 3 year guarantee

The HiLook IPC-D180H-UF is an ultra high resolution 4K 8MP turret camera with a 30m IR range and a built in microphone for real time audio security (Read more)

Loading
 CLEARANCE - SAVE 8%
Was: £75.60
£69.30
£57.75 Ex VAT
5 reward points
Availability While stocks last - 62 remaining
Delivery From £3.99* Inc VAT
Product Code15224
ModelIPC-D180H-UF 2.8MM
Next day delivery available. Order before 15:00 for delivery from Friday 1st July
Secure transaction

PRODUCT DETAILS

The HiLook IPC-D180H-UF is an ultra-high resolution 8MP 4K network dome camera with a 2.8mm fixed lens and a built-in microphone for real time audio security. PoE (Power over Ethernet) only requires a single cable for both the power and the images, making installation quick and convenient. With a 3840 × 2160@15fps resolution, 3D DNR and 120 dB WDR, the IPC-T280H-UF delivers clear, high-quality images and the 30 Metre IR range offers excellent night time imaging.

H.265 Compression Technology

Hikvision lifts video surveillance to an unprecedented level with its H.265+ codec. In Full HD mode, H.265+ uses less than 20% of the bandwidth of H.264, allowing for live streams of unrivalled quality.

H.265+ also greatly outperforms all its predecessors in terms of storage. Regardless of environment or application, H.265+ reduces the required storage space by more than 80%. In short, H.265+ allows you to kill two birds with one stone: you can now record images at amazingly high resolutions and minimize the required storage capacity. This makes H.265+ the ideal solution for 24-hour surveillance.

Features:

  • 2 Axis Gimball
  • 1/2.5" progressive scan CMOS
  • 3840 × 2160@15fps
  • 2.8 mm/4 mm fixed lens
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • 120dB WDR & 3D DNR
  • Built-in Mic
  • SD Card
  • Up to 30 m IR range
  • PoE
  • IP67, IK10


YOU MIGHT ALSO NEED
Loading




Loading




Loading




Loading




Loading




Loading




SPECIFICATIONS
Camera
Image Sensor
1/2.5" progressive scan CMOS
Min. Illumination
Colour: 0.01 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day &Night
IR cut filter
DNR (Digital Noise Reduction)
3D DNR
WDR (Wide Dynamic Range)
120 dB
Angle Adjustment (Bracket)
Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length
2.8 mm
Aperture
F2.0
Focus
Fixed
FOV
2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 123°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.264+
Main stream supports
H.265 Type
Main Profile
H.265+
Main stream supports
Video Bit Rate
32 Kbps to 16 Mbps
Smart Feature-set
Region of Interest
1 fixed region for main stream and sub-stream
Max. Resolution
3840 × 2160
Main Stream
Max. Frame Rate
50Hz: 12.5fps (3840 × 2160, 2560 × 1440, 2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (3840 × 2160, 2560 × 1440, 2304 × 1296, 1920 × 1280, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360)
60Hz: 30fps (640 × 480, 640 × 360)
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64Kbps (AAC)/8-320Kbps (MP3)
Network
Network Storage
NAS (NFS, SMB/CIFS) Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Alarm Trigger
Motion detection, video tampering, exception
Protocols
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS,
Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE
General Function
Anti-flicker, heartbeat, password protection, password reset via email
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator, and User
Client
HiLookVision PC Client, HiLookVision App
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet portC
Reset Button
Yes
On-board Storage
Built-in micro-SD/SDHC/SDXC slot, up to 256 GB
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, Max: 6.5 W
Protection Level
IP67, IK10
Material
Front cover: plastic, bottom base: metal
Dimensions
Camera: Ø120 × 92.2 mm (4.7" × 3.6")
With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight
Camera: approx. 420 g (0.9 lb.)
With package: approx: 666 g (1.5 lb.)
