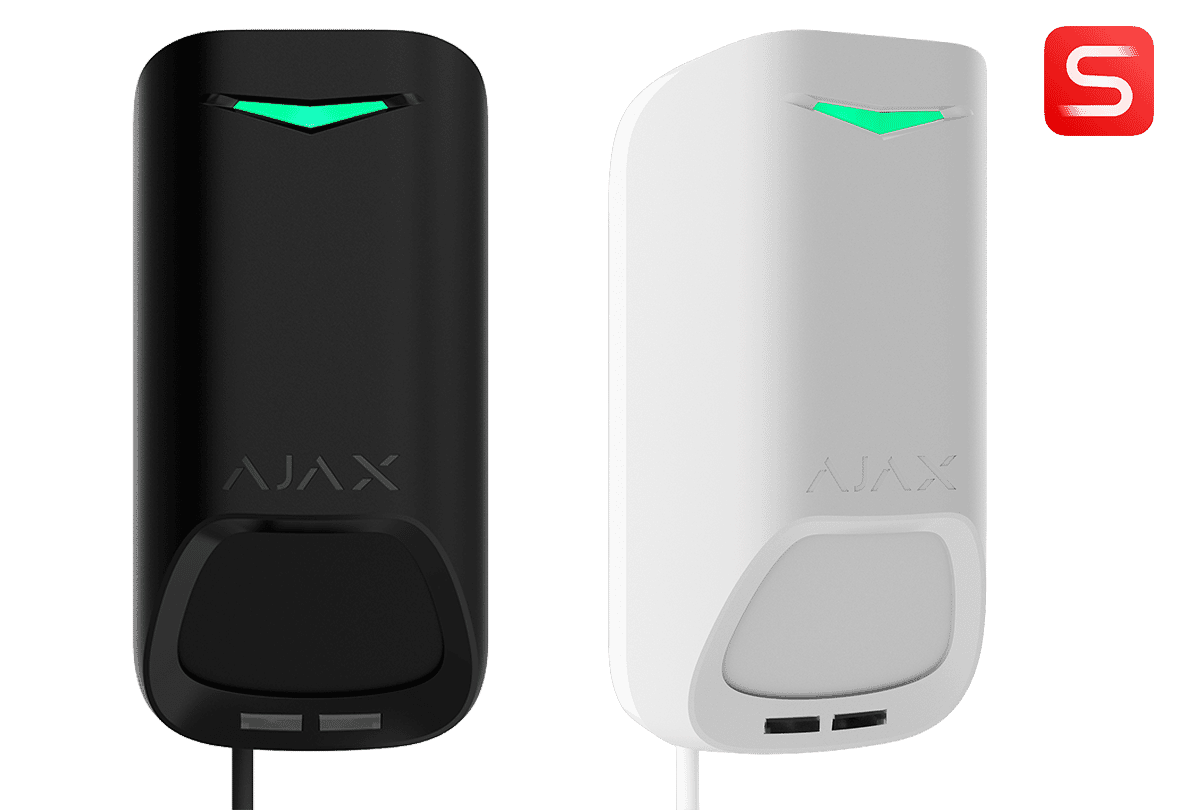

Ajax Superior MotionProtect G3 Fibra
Ajax
- Grade 3 Certification
- Dual-Tech Detection
- Matte Finish
The Ajax Superior MotionProtect G3 Fibra is a grade 3 wired motion detector designed for high-security environments that demand maximum protection. (Read more)
PRODUCT DETAILS
The Ajax Superior MotionProtect G3 Fibra is a professional-grade wired motion detector designed for high-security environments that demand maximum reliability and protection. It forms part of Ajax’s Superior series, combining advanced Grade 3 intrusion detection performance with the proven stability of the Fibra wired communication protocol.
Engineered for commercial, industrial, and critical infrastructure sites, the MotionProtect G3 Fibra offers anti-masking, microwave verification, and multi-factor signal analysis to eliminate false alarms and ensure precise detection, even in complex environments. Its sleek design, advanced digital processing, and full EN 50131 Grade 3 compliance make it ideal for professional security installations.

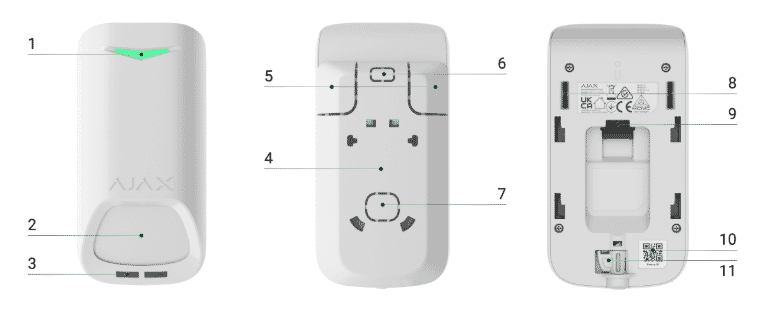

Interface
| No. | Description |
|---|---|
| 1 | LED indicator |
| 2 | Detector’s IR motion sensor sensitive
area |
| 3 | Masking sensor |
| 4 | SmartBracket mounting panel. To remove
the panel, slide it down |
| 5 | Perforated parts of the mounting panel.
Trigger a tamper in case of any attempt to detach the device from
the surface. Do not break them off |
| 6 | Perforated part of the mounting panel
for routing cables from the top of the device |
| 7 | Perforated part of the mounting panel
for routing cables through the wall |
| 8 | Tamper buttons |
| 9 | Terminal strip connection
socket |
| 10 | QR code with the device ID. It is used
to add the device to the hub |
| 11 | Latch with a tamper button on the lock for
SmartBracket |

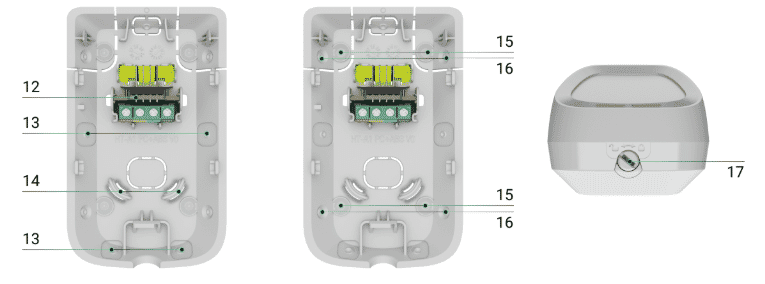

| No. | Description |
|---|---|
| 12 | Terminal strip for the device
connection |
| 13 | Recesses for drilling holes to route
cables from the sides or bottom of the device |
| 14 | Fasteners to fix the cables with
ties |
| 15 | Spots for drilling holes to mount the
device on the surface |
| 16 | Spots for drilling holes to mount the
device on the corner |
| 17 | Lock for SmartBracket. It is used to
fix the device on the SmartBracket mounting panel |
Features:
- Grade 3 security certification (EN 50131) – compliant with professional and high-risk site requirements
- Dual-technology detection (PIR + Microwave) – ensures accurate movement recognition and false alarm immunity
- Anti-masking function – detects attempts to cover or block the sensor lens
- Multi-factor analysis – digital signal processing intelligently filters interference and movement noise
- Fibra wired communication – provides reliable, encrypted two-way data transmission up to 2 km
| Communication |
|
| Fibra communication technology |
Proprietary wired communication technology
to transmit commands, alarms, and events. Key features: Two-way communication. Advanced anti-sabotage. Instant notifications. Remote control and configuration in Ajax apps. |
| Line connection |
4-core cable |
| Connection |
to any point of the Fibra line The device can be installed behind the hub, detector, keypad, or siren. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair cable. |
| Encrypted communication |
All stored and transmitted data are
protected by block encryption featuring a dynamic key. |
| Detection |
|
| Sensitive elements |
1 × PIR sensor |
| Motion detection distance |
up to 15 m When installed at a height of 2.4 m |
| Reduced blind zone |
up to 0.5 m Detects a crawling person at a distance of 50 cm from the detector. |
| Motion detection angles |
horizontal: 90° vertical: 71° |
| Motion detection speed |
from 0.1 to 4.0 m/s The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility. |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at temperatures from −10 °C to +40
°C. |
| Self-test of sensitive elements |
The device checks its sensors’ state and notifies if any
malfunction is detected. |
| Recommendations |
It is recommended to install the detector at a height of 2.4
m. The pet immunity feature is not available for this device. The device is designed for indoor use only. |
| Sabotage
protection |
|
| Tamper alarm |
3 tampers Notifications on attempts to detach the detector from the surface or unlock the SmartBracket lock and remove the detector from the mounting panel. |
| Protection against spoofing |
device authentication |
| Anti-masking system |
detects attempts to block the detector view |
| Lock for SmartBracket |
To secure the detector on SmartBracket |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Power supply |
|
| Fibra line |
TBC |
| Enclosure |
|
| Dimensions |
120 × 62 × 52 mm |
| Weight |
TBC |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP30 |
| Complete set |
Superior MotionProtect G3 Fibra SmartBracket mounting panel Installation kit Quick start guide |
| AJA0387 | Superior MotionProtect G3 Fibra Black | In stock | |
| AJA0386 | Superior MotionProtect G3 Fibra White | In stock |
| Videos |
|---|
Ajax Superior Range. Rule your space
Fibra technology: how to install a wired security system in 6 hours| Files |
|---|
| Ajax Superior MotionProtect G3 Fibra Datasheet |
| Ajax Superior MotionProtect G3 Fibra User Manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
