Ajax Superior StreetSiren Plus Fibra Outdoor Sounder
Ajax
- LED Light Up Frame
- 113 dB Adjustable Siren
- Grade 3

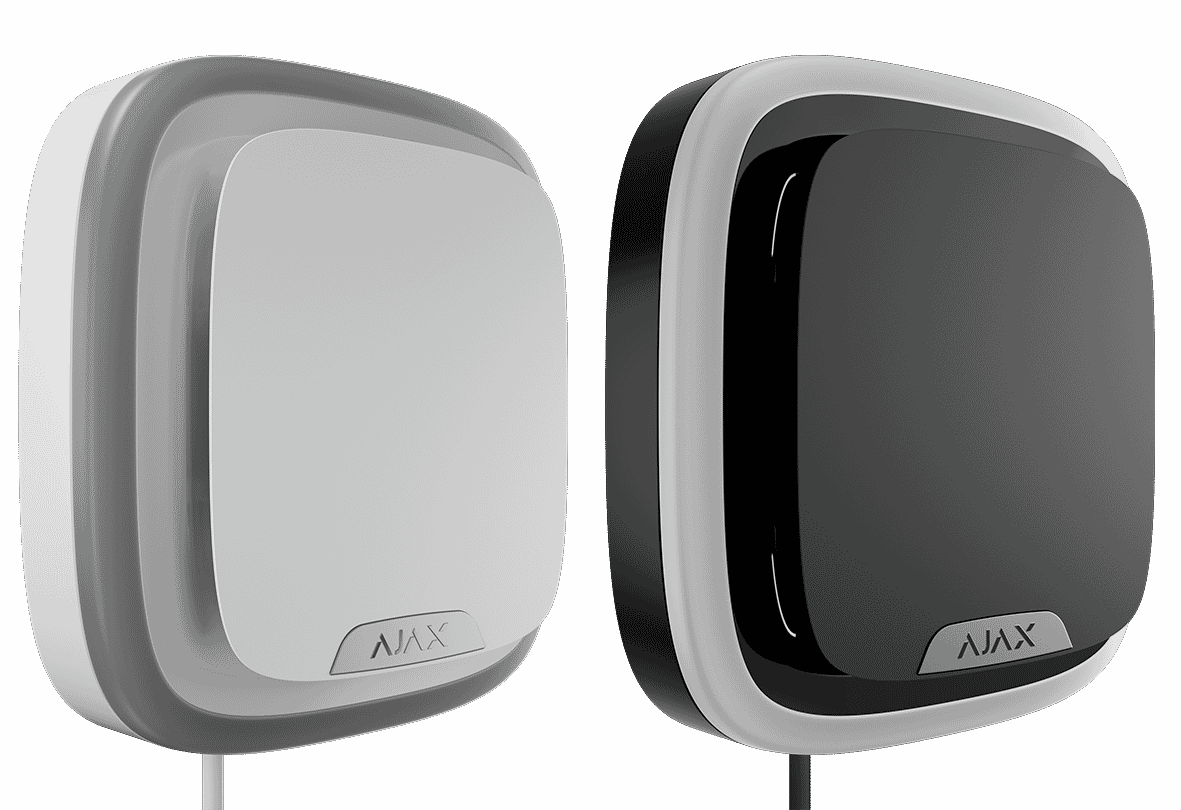

The Ajax Superior StreetSiren Plus Fibra is a powerful outdoor wireless siren with a powerful adjustable alarm output up to 113 dB & LED strobe frame (Read more)
PRODUCT DETAILS
The Ajax Superior StreetSiren Plus Fibra is a high-performance wired external siren designed for Grade 3 security installations that require maximum reliability, rugged construction, and fast alarm signalling. As part of the Ajax Superior range, it offers advanced features and expanded functionality while communicating via the secure Fibra wired protocol, ensuring stable, encrypted two-way communication up to 2 km from the hub.
Built for professional outdoor use, the Superior StreetSiren Plus Fibra is the next level of signaling alarm and events in an Ajax security system. Featuring selectable alarm tones and impossible-to-miss LED indication, the device deters intruders, displays system security status, and provides an after-alarm indication. Moreover, it has a Chime1 feature that alerts users to delays when they enter or leave. The siren has a powerful wired communication range of up to 2,000 m without line extenders, additional power supply during an alarm, and multi-layered sabotage protection. A single Fibra line can accommodate up to 10 sirens and is protected against short circuits, spoofing, and line breakage2. The siren can offer reliable indoor and outdoor protection and remote control via Ajax apps.
Features:
- Wired Grade 3 external siren – ideal for high-security installations
- Powerful 113 dB alarm sounder – provides loud, immediate audible alert
- LED perimeter indication – ensures high visibility during alarm events
- Fibra wired communication – encrypted, lightning-fast transmission up to 2,000 m
- IP54 weather resistance – suitable for exposed outdoor locations
- Tamper protection – triggers an alarm if the housing is opened or attempted removal is detected
- Flexible mounting – supports vertical and horizontal installation
- Low power consumption – powered directly via the Fibra bus
- Easy configuration – managed through Ajax apps with full remote control and diagnostics
- Works with Ajax hubs supporting Fibra – integrates seamlessly into mixed wired/wireless systems
| Communication |
|
| Fibra communication technology |
Proprietary wired communication technology
to transmit commands, alarms, and events. Key features: Two-way communication. Advanced anti-sabotage. Instant notifications. Remote control and configuration in Ajax apps. |
| Line connection |
4-core cable |
| Connection |
to any point of the Fibra line The device can be installed behind a hub, detector, keypad, or siren. |
| Fibra line length |
up to 2,000 m When using the U/UTP cat.5 twisted pair cable. |
| Encrypted communication |
All stored and transmitted data are
protected by block encryption featuring a dynamic key. |
| Key features |
|
| Alarm type |
acoustic and light A speaker and LED frame |
| Type of warning device |
type Z External. |
| Type of acoustic output |
tone |
| Alarm volume |
from 85 to 107 dB at a distance of 1 m Adjusted by a PRO or user with admin rights in the Ajax app. |
| Alarm duration |
from 3 s to 3 min Adjusted by a PRO or user with admin rights in the Ajax app. |
| Alarm sound |
3 types NFA2P-compliant, VdS-compliant, and Regular. |
| LED indication |
2 types The user can choose between the Corner backlight and Full-frame backlight features. Full-frame backlight works only when the siren has sufficient battery power. |
| Alarm LED indication in NFA2P-compliant mode |
flashlight color — red flashlight frequency — 1 flash per second |
| Siren sound frequency |
1,400−1,600 Hz in NFA2P-compliant mode 1,400−1,800 Hz in VdS-compliant mode 1,400−1,600 Hz in Regular mode |
| Events indication |
Alarms. Delays when entering/leaving. Security mode. Security mode changing. After-alarm indication. |
| Chime |
The siren makes a special sound to notify that the opening
detectors are triggered when the system is disarmed. |
| Recommendations |
The siren is designed for indoor and outdoor use. Recommended
installation height is 2.5 m or higher. |
| Sabotage
protection |
|
| Tamper alarm |
Notifications on attempts to open the siren’s enclosure, detach
the siren from the surface, or remove the siren from the mounting
panel. |
| Protection against forgery |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Power supply |
|
| Siren’s operating voltage range |
8−28 V⎓ The siren is powered by the control panel. |
| Siren’s nominal operating voltage |
24 V⎓ |
| Maximum siren’s current consumption at nominal
voltage |
50 mA |
| Quiescent siren’s current consumption at nominal
voltage |
2.9 mA |
| Peak siren’s current consumption at nominal voltage |
217 µA When the siren sounds at the Very loud volume level. |
| Average siren’s current consumption at nominal
voltage |
217 µA When the siren sounds at the default volume level. Regardless of the arming mode. |
| Battery |
LTO 2.4 V⎓ rechargeable battery Pre-installed. |
| Capacity of the battery |
3,000 mAh The system notifies when the siren battery has 20% of its nominal capacity. |
| Electric shock protection class |
Class III |
| Enclosure |
|
| Dimensions |
210 × 210 × 71 mm |
| Weight of the white device |
1,059 g |
| Weight of the black device |
1,038 g |
| Operating temperature range |
from −25 °C to +60 °C |
| Operating humidity |
up to 95% with no condensation |
| Protection class |
IP54, IK08 |
| Complete set |
Superior StreetSiren Plus Fibra SmartBracket mounting panel Installation kit Quick start guide |
| AJA0313 | Ajax Superior StreetSiren Plus Fibra Black | In stock | |
| AJA0318 | Ajax Superior StreetSiren Plus Fibra White | In stock |
