Ajax GlandBox Cable Junction Enclosure
Ajax
- For EN54 Fire Hub
- Tamper-Resistant
- Wall Mountable
The Ajax GlandBox is a durable and versatile cable junction and protection enclosure designed for clean, secure wiring in Ajax EN54 Fire Hub Jeweller (Read more)
PRODUCT DETAILS
The Ajax GlandBox is a durable and versatile cable junction and protection enclosure designed for clean, secure wiring in Ajax EN54 Fire Hub Jeweller system installations. Made from high-strength, tamper-resistant materials, the GlandBox allows installers to route, protect, and seal cable entries while maintaining a tidy, professional finish—ideal for residential, commercial, and industrial environments.

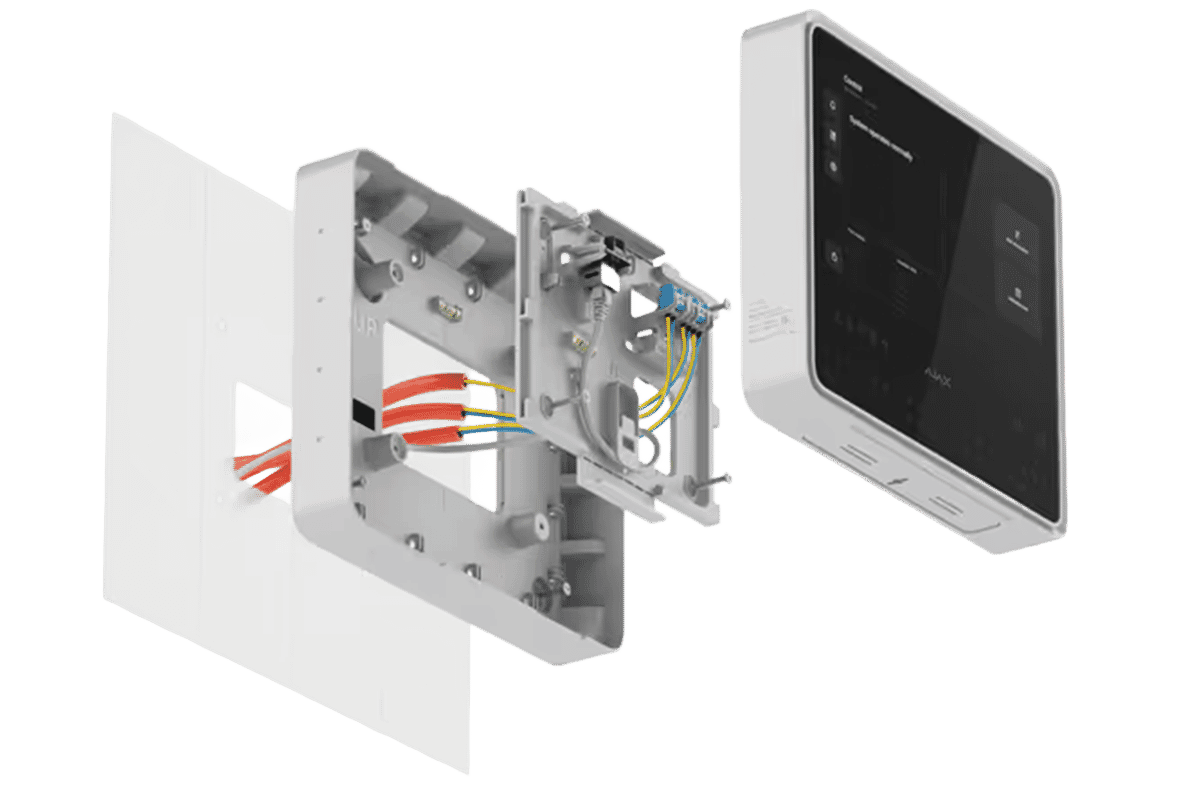

GlandBox features latches for securing the CIE’s mounting panel, allowing easy screw fixation afterward. All necessary fasteners are included in the complete set.

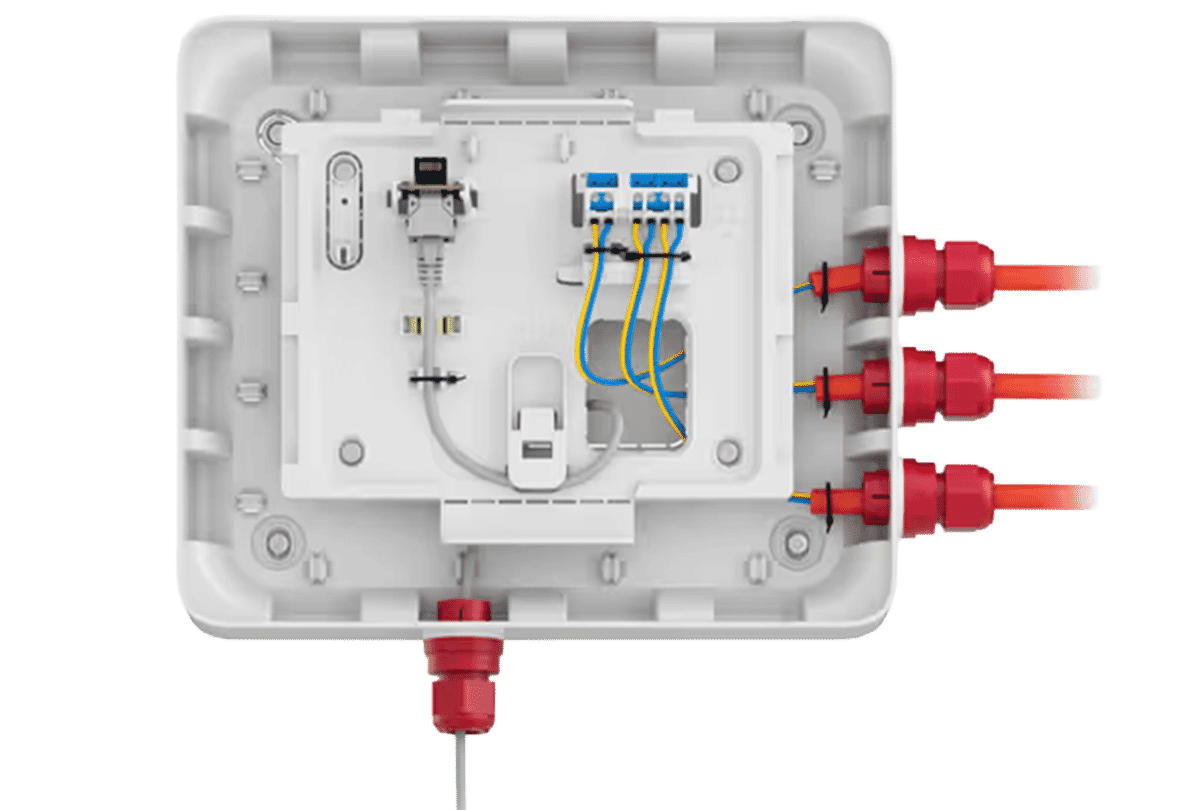

Designed with 16 side recesses, GlandBox enables convenient surface cable routing when in-wall wiring isn’t an option. Each gland is securely fixed and sealed to maintain a clean and protected connection.
GlandBox is built to streamline the surface wiring process. Inside the accessory, built-in fasteners keep cables neatly organized and allow secure fixation with ties. The result is a sleek and professional-looking installation.
Featuring multiple cable gland points, the enclosure ensures strain relief and maintains the integrity of cabling, even in challenging locations. Its spacious internal layout provides ample room for splicing, junctions, and device connections, while the robust mechanical design prevents damage, unauthorised access, or accidental disconnection.
The GlandBox is built with installer convenience in mind—allowing fast mounting, easy cable routing, and secure fixation with integrated tamper protection when used with compatible Ajax EN54 Fire Hub Jeweller systems.
Features:
- Strong, durable enclosure for clean cable management and protection
- Multiple cable gland access points for secure and strain-relieved cable entry
- Spacious interior for wiring junctions, splices, and terminations
- Tamper-resistant design – prevents unauthorised access or accidental disturbance
- Professional installation finish – keeps wiring neat for alarms, sensors, and control units
- Compatible with Ajax EN54 Fire Hub Jeweller systems.
- Wall-mountable with reinforced mounting points
- Suitable for indoor or sheltered outdoor environments (depending on installation method and glands used)
- Ideal for expanding or adapting Ajax system wiring
| Features | |
| Places to install cable
glands |
16 For routing cables that are not hidden inside the wall. There are four places on each side. |
| Cable gland diameter |
up to 20 mm Cable glands are not included in the complete set. |

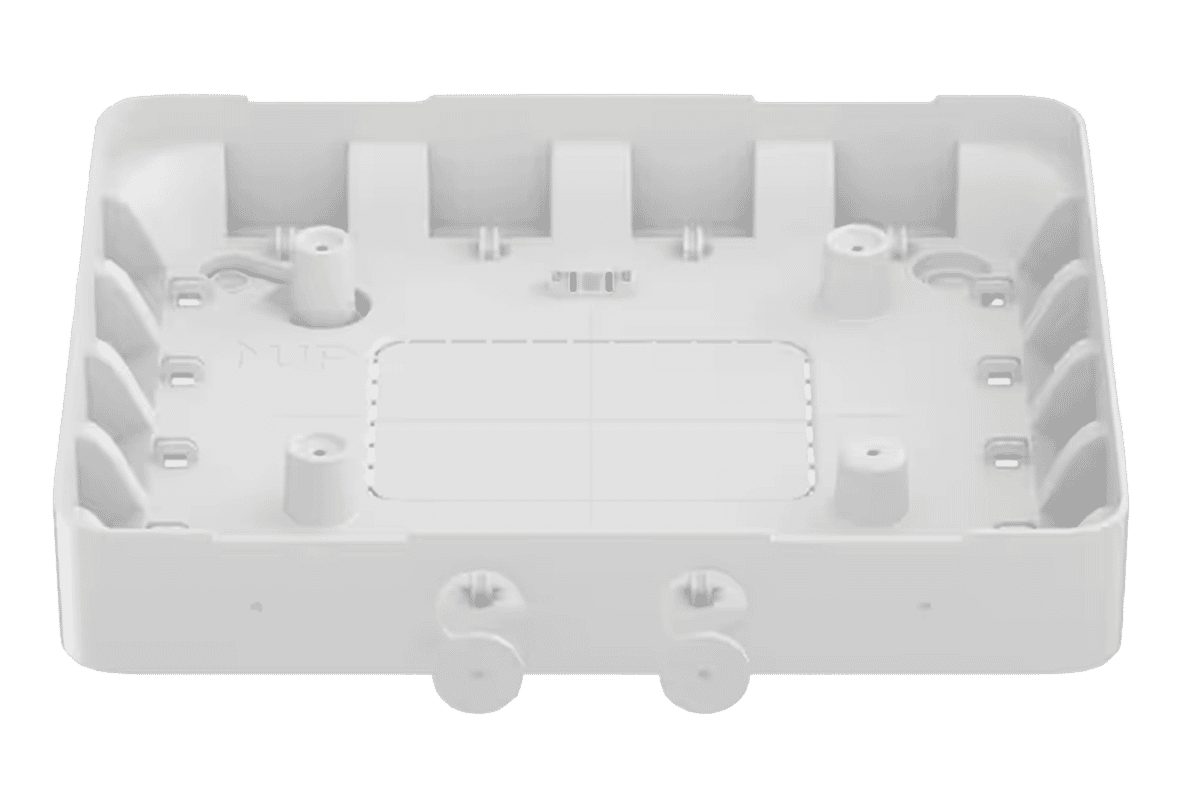

| Recesses for drilling |
The drill bit is fixed in the recess
and does not move during drilling. We recommend using a hole saw
for plastic with a diameter of up to 20 mm. |
| Sabotage
protection |
|
| Tamper button |
The perforated part of GlandBox is used
for the EN54 Fire Hub Jeweller tamper button to trigger when the
CIE is installed in GlandBox. An Ajax system sends fault
notifications if an attempt is made to detach GlandBox from the
surface or remove the CIE from the mounting panel. |
| Cable fasteners |
To hold the cables together with
ties. |
| Aids for easy installation |
Bubble level UP key CIE center marking The bubble level allows for checking the casing inclination angle. The intersection of two lines marks the center of the CIE, and the UP key marks its top. |
| Recommendations |
The accessory is designed for indoor
use only. GlandBox is compatible only with EN54 Fire Hub Jeweller. |
| Product |
|
| Dimensions |
263 × 223 × 40 mm |
| Weight |
335 g |
| Operating temperature range |
from –10 °C to +40 °C |
| Operating humidity |
up to 75% non-condensing |
| Flammability rating |
UL 94 V-0 |
| Complete set |
GlandBox Installation kit Quick start guide |

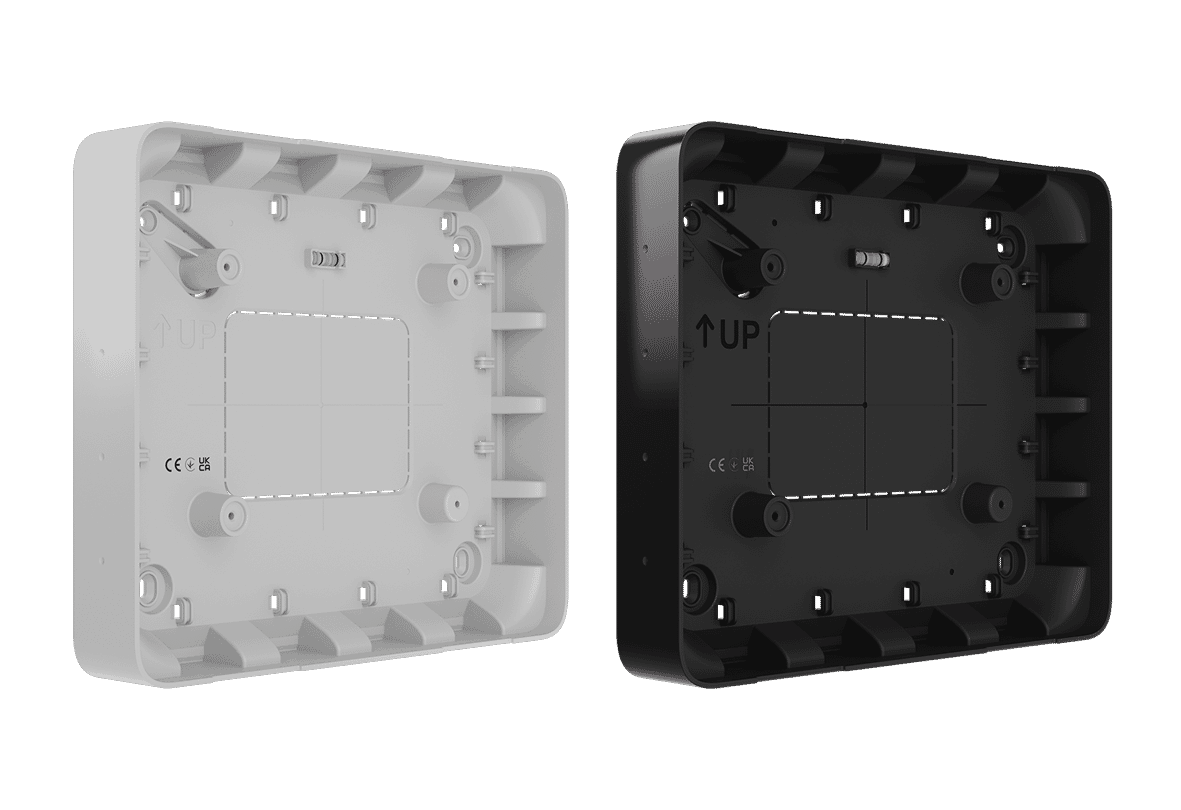

| AJA0367 | GlandBox White | In stock | |
| AJA0366 | GlandBox Black | In stock |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Ajax GlandBox Datasheet |
| Ajax GlandBox User Manual |
| Links* |
|---|
| Ajax website |
| Ajax support site |
