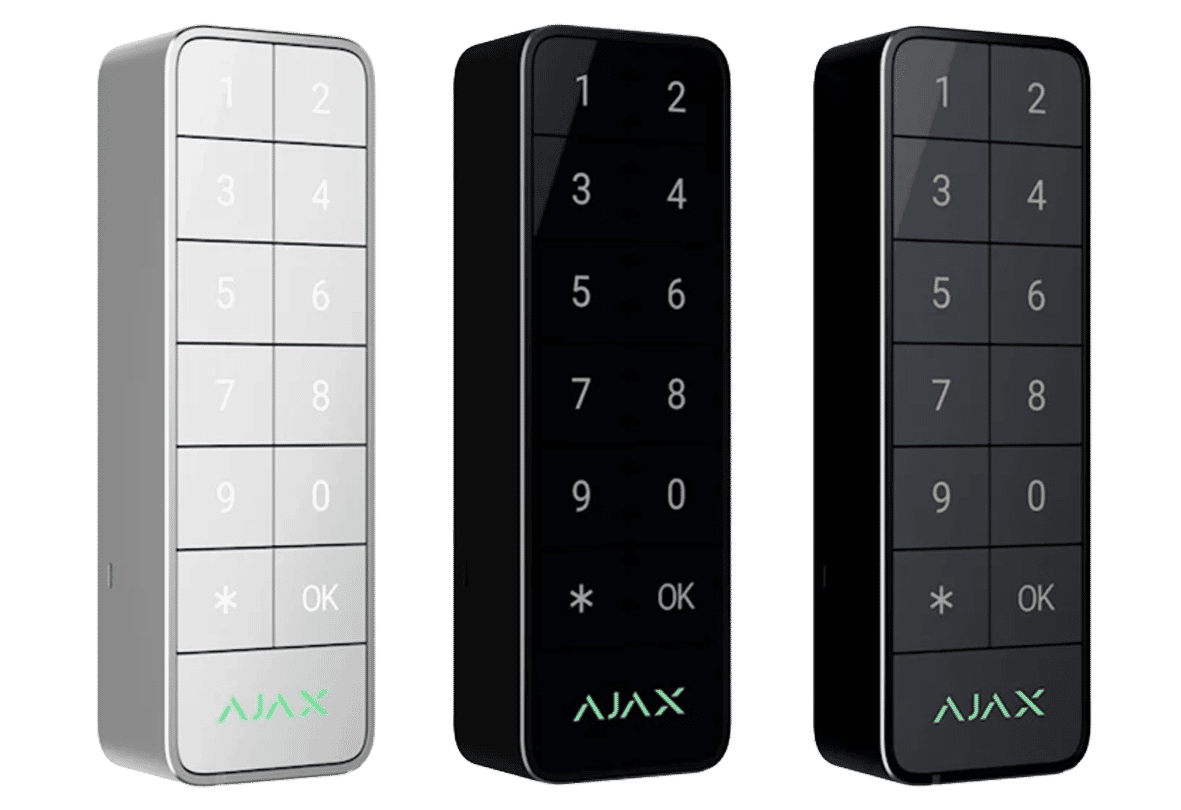

Ajax KeyPad Outdoor Jeweller Wireless Alarm Keypad
Ajax
- Backlit Touch Keypad
- IP66 Rated
- Tamper Protection
The Ajax KeyPad Outdoor Jeweller is an IP66 rated wireless keypad designed that provides secure and convenient outdoor access control for Ajax systems (Read more)
PRODUCT DETAILS
The Ajax KeyPad Outdoor Jeweller is a weather-resistant wireless keypad designed that provides secure and convenient outdoor access control for Ajax security systems. Built for professional installations, it allows users to arm and disarm the system without needing to enter the building, making it ideal for gates, entrances, warehouses, and perimeter access points.
Engineered with Ajax’s Jeweller radio technology, the keypad delivers fast, encrypted, and reliable communication with the hub, ensuring consistent performance even across large properties. Its IP66 rated weatherproof design protects against rain, dust, and temperature extremes, making it suitable for year-round outdoor use.
The keypad supports multiple authentication methods, including passcodes, access cards, and key fobs, offering flexible and secure entry for authorised users. Built-in protection features such as tamper alerts, code guessing protection, and anti-sabotage mechanisms help safeguard against unauthorised access attempts.
Designed with usability in mind, the KeyPad Outdoor features backlit touch-sensitive buttons, ensuring easy operation in low-light conditions, while its modern, low-profile design blends seamlessly into both residential and commercial environments.
Features:
- Outdoor wireless keypad for Ajax security systems
- Weather-resistant design for reliable external installation
- Secure communication via Ajax Jeweller technology
- Supports passcodes, access cards, and key fobs
- Backlit touch keypad for night-time visibility
- Tamper protection and code-guessing prevention
- Ideal for gates, external doors, and perimeter access control
- Easy installation and integration with Ajax systems
| Communication |
|
| Jeweller communication technology |
Proprietary wireless communication
technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the device and a hub (or a range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data are
protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and
jamming. |
| Key features |
|
| Keypad functions |
|
| Authentication methods |
|
| Access codes |
|
| Contactless access |
DESFire® EV1, EV2, EV3 ISO 14443-А (13.56 MHz) |
| Contactless authentication via smartphone |
A smartphone with an Ajax app installed and Bluetooth Low
Energy (BLE) support can be used for authentication instead of Tag
or Pass. BLE is a radio protocol with low power consumption. The
keypad supports Android and iOS smartphones with BLE 4.2 and
later. |
| Arming without entering a code |
When enabled, this feature allows users to arm the facility
without entering a code or presenting an access device. |
| Group security management |
Users can change the security mode of groups they have access
to directly from the keypad. |
| Authorization confirmation with a passcode |
This feature activates two-factor authentication. When enabled,
users must first present an access device (Pass, Tag, or
smartphone) and then enter a passcode to confirm
authorization. |
| Function button |
Operates in one of the following modes:
|
| Automation device control |
Allows users to control automation devices or run scenarios by
keypad. |
| Starting entry delay |
Activates an entry delay, enabling users to disarm the facility
using the main keypad. |
| Indication of malfunctions and security mode |
When enabled, the keypad uses LED indicators to show the
current security mode, as well as detector malfunctions or loss of
communication with the hub. A built-in buzzer notifies of alarms,
opening doors, and entry/exit delays. |
| Recommendations |
The device is designed for outdoor and indoor use. |
| Sabotage
protection |
|
| Unauthorized access auto-lock |
The keypad locks if an incorrect code is entered or unverified
access devices are used more than 3 times in a row within 1 minute.
The lock duration can be adjusted by a PRO or user with admin
rights in an Ajax app. |
| Tamper alarm |
Sends notifications about attempts to detach the keypad from
the surface or remove it from the mounting panel. |
| Holding screw |
Secures the device on SmartBracket. |
| Protection against spoofing |
Ensures device authentication during communication with a
hub. |
| Communication loss detection |
after 36 seconds of no signal Detection time depends on Jeweller or Jeweller/Fibra settings. |
| Main power
supply |
|
| Battery |
2 × CR123A |
| Type |
type C |
| Calculated battery life |
up to 3 years |
| Operating voltage range |
2.0−3.3 V⎓ |
| Nominal operating voltage |
3 V⎓ |
| Quiescent current consumption at nominal voltage |
115 μA |
| Maximum current consumption at nominal voltage |
125 mA |
| Full battery capacity |
3,200 mAh |
| Low battery voltage |
2.25 V⎓ |
| Low battery recovery voltage |
2.75 V⎓ |
| End-of-life battery voltage |
2.0 V⎓ |
| End-of-life battery capacity |
200 mAh |
| Manufacturer |
Huiderui |
| Optional power
supply |
|
| External supply operating range |
10.5–14 V⎓, up to 1 A The batteries serve as a backup when an external power supply is connected. |
| Enclosure |
|
| Dimensions |
170 × 45 × 31 mm |
| Weight |
258 g |
| Operating temperature range |
from −25 °C to +60 °C |
| Operating humidity |
up to 80% |
| Protection class |
IP66 IK08 |
| Complete set |
KeyPad Outdoor Jeweller 2 × CR123A battery (pre-installed) SmartBracket mounting panel Installation template Installation kit Quick start guide |
