Ajax EN54 FireProtect (Heat) - 119918.273
Ajax

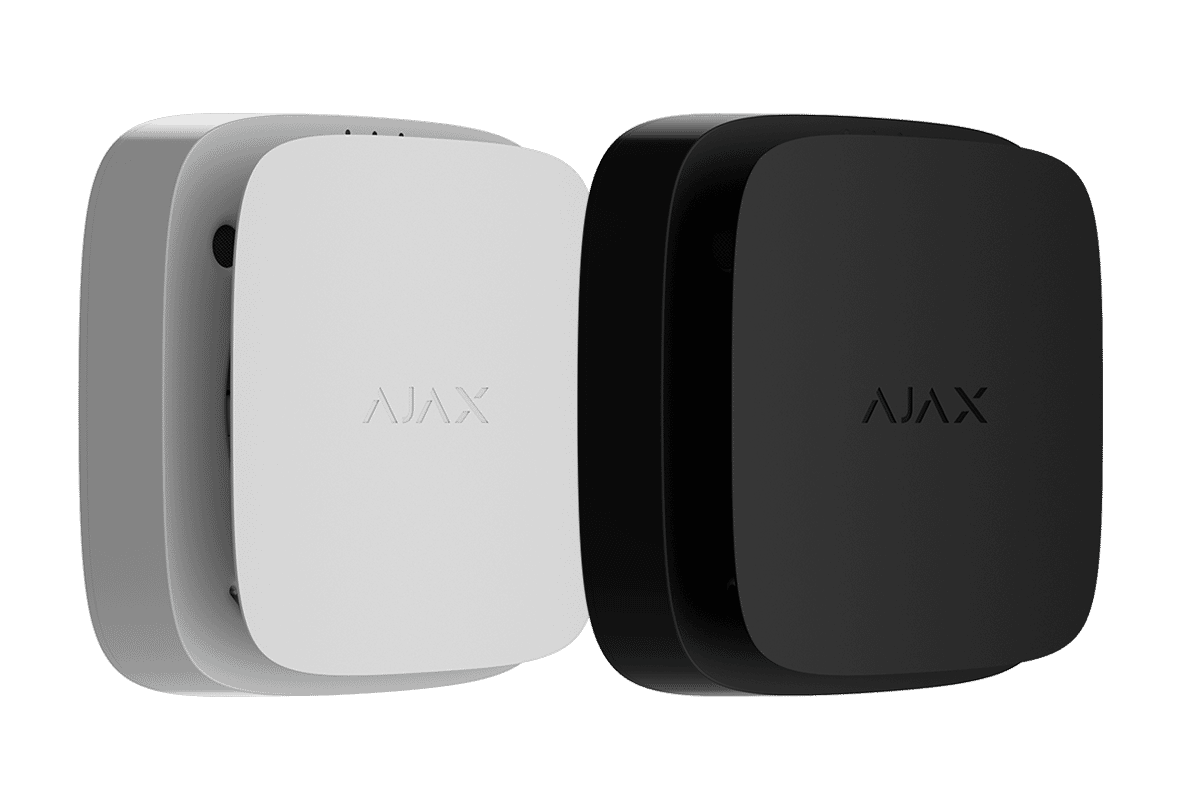

- Black or White
- EN54-Certified
- 2 year guarantee
The Ajax EN54 FireProtect (Heat) is a wireless Heat detector designed to deliver fast, reliable fire detection in compliance with the EN54 standards (Read more)
PRODUCT DETAILS
The Ajax EN54 FireProtect (Heat) is a wireless heat detector designed to deliver fast, reliable fire detection in compliance with the EN54 European fire safety standard. Compact and stylish, it integrates seamlessly into the Ajax wireless ecosystem to provide dependable protection for both residential and commercial properties.
Two built-in thermistors detect a rapid temperature rise or when the temperature exceeds the threshold value. The thermistors trigger an alarm when a rapid temperature rise or static temperature is detected. The threshold temperature, temperature rise rate, and the response time at which the detector raises an alarm depend on the detector settings and comply with the requirements of the EN 54-5 standard.
EN54 FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fire alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables — installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.

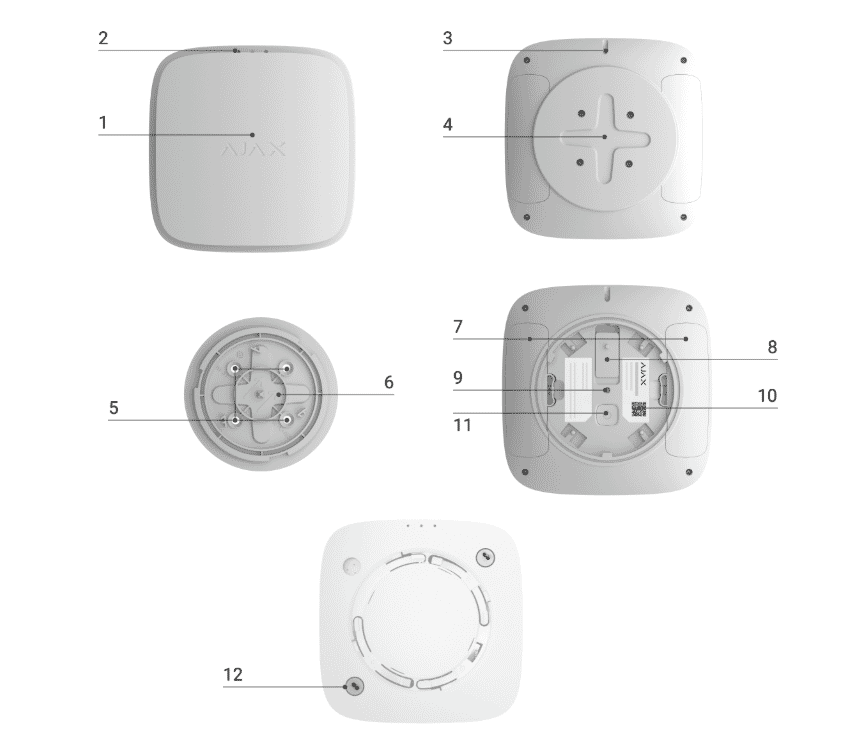

Interface
| No. |
Description |
|---|---|
| 1 |
Front panel of the detector. |
| 2 |
LED indicators: green, yellow, and
red. |
| 3 |
Hole for a special tool used to unlock
the lock. |
| 4 |
SmartBracket mounting panel. To remove
the panel, insert the special tool into the corresponding hole and
turn SmartBracket counterclockwise. If the device is unlocked,
simply turn SmartBracket counterclockwise. |
| 5 |
Fixing points to attach SmartBracket to
the surface. |
| 6 |
↑↑ sign on SmartBracket. You can use it
as a reference point to align the device properly when attaching
the mounting panel to the surface. |
| 7 |
Battery compartment lids. To replace
the batteries, open the lids. |
| 8 |
Lock to secure the device on
SmartBracket (optionally). |
| 9 |
Tamper button. It triggers in case of
an attempt to remove the device from the mounting panel. |
| 10 |
QR code with the device ID. It is used
to add the device to the CIE. |
| 11 |
Power button. |
| 12 |
Thermistors that detect dangerous
temperatures. |
Features:
- EN54-certified wireless smoke detector for professional fire safety
- Two built-in thermistors ensures rapid detection of fire hazards
- Wireless communication with Ajax Hub for remote notifications and system integration
- Long-lasting battery life (up to 4 years) with low-battery warning
- Tamper protection – alerts the system if the device is removed or interfered with
- Compact, modern design suitable for residential, office, and commercial spaces
| Communication |
|
| Jeweller communication technology |
Proprietary wireless communication
technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
| Encrypted communication |
All stored and transmitted data is protected
by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and
jamming. |
| Dangerous temperature
detection |
|
| Sensitive element |
2 × thermistor According to the EN 54-5 requirements for heat detectors of Class A1, B, and C with rate-of-rise (R) and static (S) response types. |
| Heat sensor modes |
For better detection of fire hazards, depending on the installation site of the device. Can be selected in the device settings. |
| Additional
features |
|
| LED indication |
|
| Installation recommendations |
The device is designed for indoor use only. The SmartBracket mounting panel allows the detector to be rotated up to 90° even after installation. |
| Sabotage
protection |
|
| Tamper button |
Fault notification when an attempt is made to remove the device
from the mounting panel. |
| Lock for SmartBracket |
to secure the device on the SmartBracket mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
| Protection against spoofing |
device authentication |
| Connection loss detection |
after 36 s Detection time depends on Jeweller settings. |
| Power supply |
|
| Battery |
2 × CR123A Pre-installed. |
| Tool-free battery replacement |
To replace the batteries, open the lids of the battery
compartments. |
| Reverse polarity protection |
Prevents device damage if the batteries are put in
incorrectly. |
| Recommended battery type |
Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂ |
| Calculated battery life |
up to 5 years |
| Enclosure |
|
| Dimensions |
124 × 124 × 48 mm |
| Weight |
265 g |
| Operating temperature range |
from 0 °C to +50 °C |
| Operating humidity |
up to 80% |
| Protection class |
IP21C |
| Flammability rating |
UL 94 V-0 |
| Complete set |
EN54 FireProtect (Heat) Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
| AJA0329 | Ajax EN54 FireProtect (Heat) Black | In stock | |
| AJA0330 | Ajax EN54 FireProtect (Heat) White | In stock |
