Ajax EN54 FireProtect (Heat/Sounder) - 119915.274
Ajax

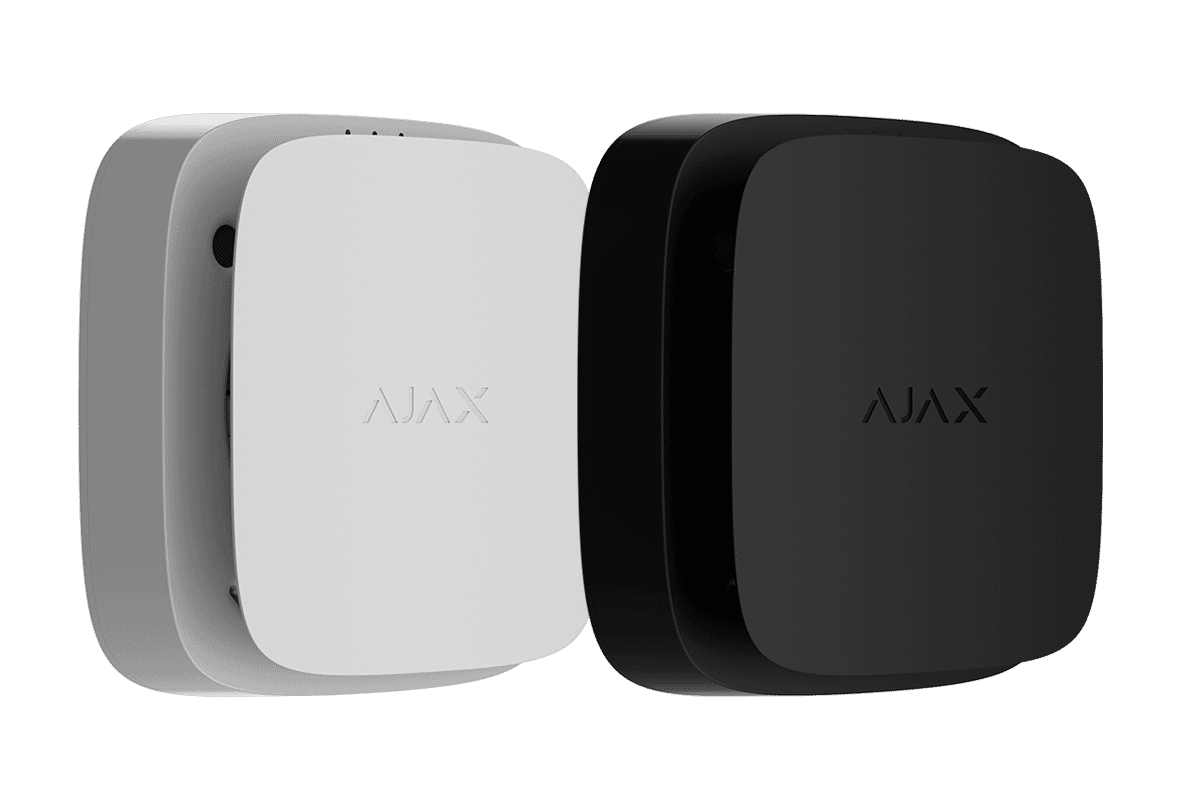

- Black or White
- EN54-Certified
- 2 year guarantee
The Ajax EN54 FireProtect Heat/Sounder) is a wireless smoke detector which delivers reliable fire detection in compliance with the EN54 standards. (Read more)
PRODUCT DETAILS
The Ajax EN54 FireProtect (Heat/Sounder) is a wireless smoke detector designed to deliver fast, reliable fire detection and audible warning in compliance with the EN54 European fire safety standard. Compact and stylish, it integrates seamlessly into the Ajax wireless ecosystem to provide dependable protection for both residential and commercial properties.
Equipped with Two built-in thermistors and an 85 dB sounder, the FireProtect (Heat/Sounder) quickly identifies the presence of smoke particles, triggering an immediate alarm with 32 selectable tones. Audible and visual alerts ensure occupants are notified instantly, while the device also sends real-time alerts to connected smartphones via the Ajax app and to monitoring stations when required.
EN54 FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fire alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables — installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.

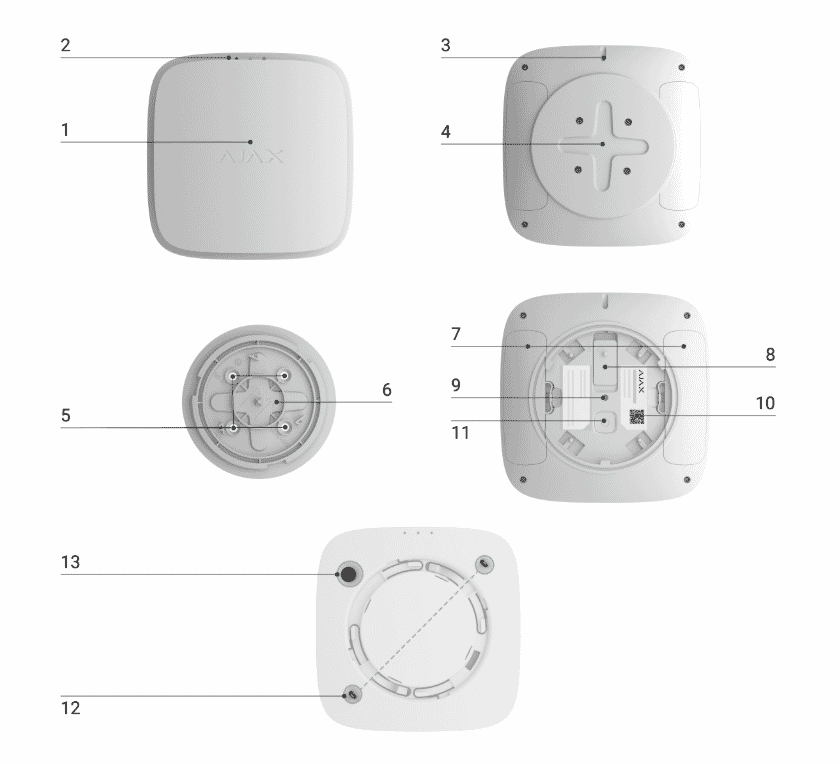

Interface
| No. | Description |
|---|---|
| 1 | Front panel of the detector. |
| 2 | LED indicators: green, yellow, and
red. |
| 3 | Hole for a special tool used to unlock
the lock. |
| 4 | SmartBracket mounting panel. To remove
the panel, insert the special tool into the corresponding hole and
turn SmartBracket counterclockwise. If the device is unlocked,
simply turn SmartBracket counterclockwise. |
| 5 | Fixing points to attach SmartBracket to
the surface. |
| 6 | ↑↑ sign on SmartBracket. You can use it
as a reference point to align the device properly when attaching
the mounting panel to the surface. |
| 7 | Battery compartment lids. To replace
the batteries, open the lids. |
| 8 | Lock to secure the device on
SmartBracket (optionally). |
| 9 | Tamper button. It triggers in case of
an attempt to remove the device from the mounting panel. |
| 10 | QR code with the device ID. It is used
to add the device to the CIE. |
| 11 | Power button. |
| 12 | Thermistors that detect dangerous
temperatures. |
| 13 | Sounder. |
Features:
- EN54-certified wireless smoke detector for professional fire safety
- Two built-in thermistors ensures rapid detection of fire hazards
- Integrated audible alarm (85dB) and LED indicator for instant on-site alerts
- Wireless communication with Ajax Hub for remote notifications and system integration
- Long-lasting battery life (up to 4 years) with low-battery warning
- Tamper protection – alerts the system if the device is removed or interfered with
- Compact, modern design suitable for residential, office, and commercial spaces
| Communication |
|
| Jeweller communication
technology |
Proprietary wireless communication
technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
| Encrypted communication |
All stored and transmitted data is
protected by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and
jamming. |
| Dangerous temperature
detection |
|
| Sensitive element |
2 × thermistor According to the EN 54-5 requirements for heat detectors of Class A1, B, and C with rate-of-rise (R) and static (S) response types. |
| Heat sensor modes |
For better detection of fire hazards, depending on the installation site of the device. Can be selected in the device settings. |
| Alarm
annunciation |
|
| Alarm type |
acoustic |
| Sound volume |
up to 95 dB at a distance of 1 m Adjusted by a PRO or user with admin rights in an Ajax app. |
| Sound pattern |
32 tones |
| Sound synchronization |
An audible alarm is automatically
synchronized on all devices with a sounder connected to the same
CIE. |
| Alarm annunciation test |
An audible alarm check to ensure the
fire alarm is clearly audible on the premises. |
| Installation recommendations |
The device is designed for indoor use
only. The SmartBracket mounting panel allows the detector to be rotated up to 90° even after installation. |
| Sabotage
protection |
|
| Tamper button |
Fault notification when an attempt is
made to remove the device from the mounting panel. |
| Lock for SmartBracket |
to secure the device on the SmartBracket
mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
| Protection against spoofing |
device authentication |
| Connection loss detection |
after 36 s Detection time depends on Jeweller settings. |
| Power supply |
|
| Battery |
2 × CR123A Pre-installed. |
| Tool-free battery
replacement |
To replace the batteries, open the lids
of the battery compartments. |
| Reverse polarity protection |
Prevents device damage if the batteries
are put in incorrectly. |
| Recommended battery type |
Huiderui CR123A; 3 V; 1,600 mAh,
LiMnO₂ |
| Calculated battery life |
up to 5 years |
| Enclosure |
|
| Dimensions |
124 × 124 × 48 mm |
| Weight |
278 g |
| Operating temperature range |
from 0 °C to +50 °C |
| Operating humidity |
up to 80% |
| Protection class |
IP21C |
| Flammability rating |
UL 94 V-0 |
| Complete set |
EN54 FireProtect (Heat/Sounder)
Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
| AJA0332 | Ajax EN54 FireProtect (Heat/Sounder) White | Back order | |
| AJA0331 | Ajax EN54 FireProtect (Heat/Sounder) Black | Back order |
