Ajax GlassProtect U Jeweller Glass Break Detector
Ajax
- 9m Detection Range
- Ignores Other Sounds
- 2 year guarantee
The Ajax GlassProtect U is a wireless indoor glass break detector which can recognise the sound of shattering the glass at a distance of up to 9 m (Read more)
PRODUCT DETAILS

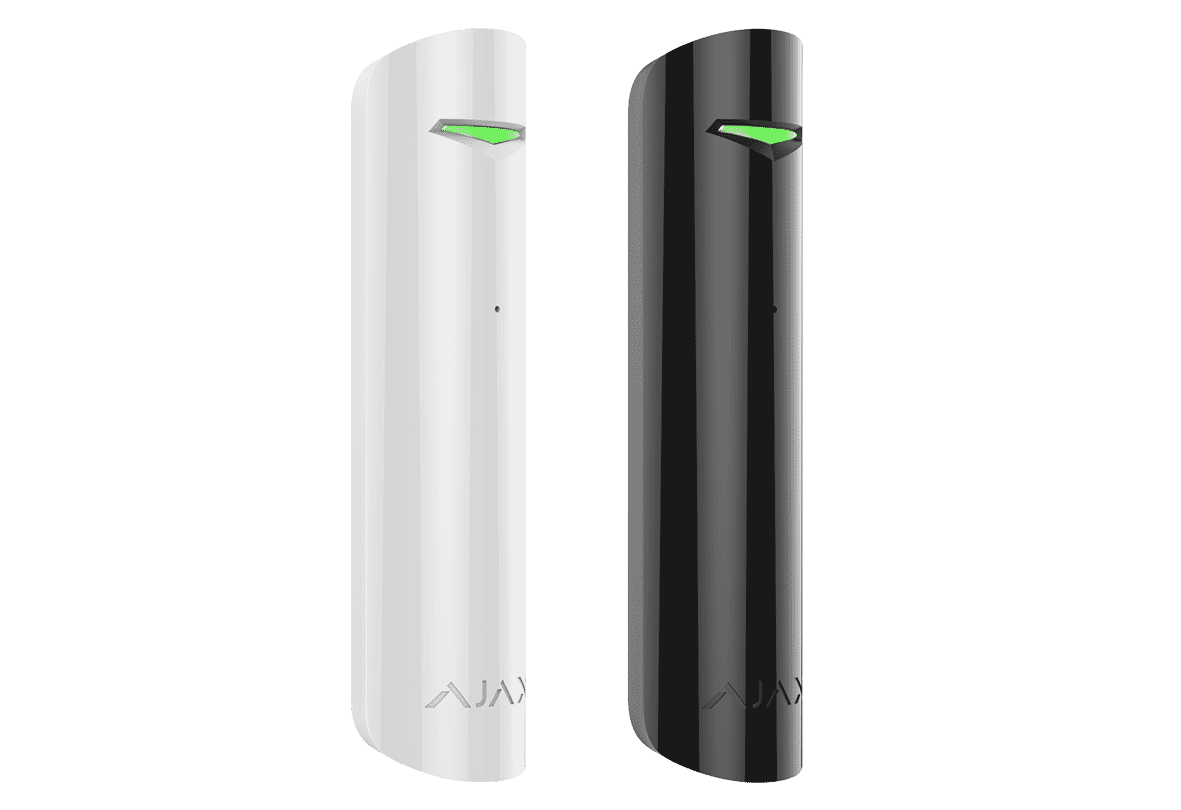

The Ajax GlassProtect U Jeweller is a compact and reliable wireless glass break detector designed to instantly detect the sound of breaking windows or glass doors. Featuring advanced acoustic analysis and the powerful U-Jeweller wireless protocol, it provides accurate detection, long-range communication, and high resistance to false alarms — ideal for both residential and commercial installations.
This sensor recognises both low-frequency impact sounds (from the initial hit) and high-frequency glass shattering, ensuring precise detection across all types of glass, including tempered, laminated, and double-glazed units. It operates without reacting to background noise such as voices, music, or the sound of dishes.
GlassProtect U Jeweller works wirelessly. Each device comes with a pre-installed CR123A battery from a trusted manufacturer, so the detector is ready to operate right out of the box — no extra steps are needed. Each device battery is tested during production, and Ajax Systems checks every unit to ensure reliable performance. The battery lasts about five years and can be easily replaced when needed. Its state is always available in Ajax apps. Users and monitoring companies receive low battery notifications well in advance and have enough time to replace the battery without urgency.
Features:
- Glass break detection up to 9 m – covers multiple windows or glass panels within a room
- Dual sound recognition – analyses both impact and shatter frequencies for accurate detection
- U-Jeweller wireless communication – secure, long-range signal transmission with low power consumption
- High false alarm immunity – ignores common background noise and vibration
- Compact and discreet design – blends easily into any interior décor
- Battery life up to 7 years – for long-term, maintenance-free operation
- Tamper protection – alerts the system if the device is opened or removed
- Quick installation – easily mounts with the SmartBracket and pairs with Ajax hubs via QR code
- Compatible with Ajax hubs and range extenders using the U-Jeweller protocol
| Communication |
|
| Jeweller communication technology |
Proprietary wireless communication
technology to transmit commands, alarms, and events. Key features: Two-way communication. Advanced sabotage protection. Block encryption featuring a dynamic key. Instant notifications. Remote control and configuration in Ajax apps. |
| Frequency bands |
868.0–868.6 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,000 m Between the device and a hub (or a range extender) in an open space. |
| Encrypted communication |
All stored and transmitted data is protected
by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and
jamming. |
| Detection |
|
| Sensitive element |
electret microphone |
| Glass break detection distance |
from 0.3 up to 9 m |
| Glass break detection angles |
horizontal: 180° vertical: N/A |
| Sensitivity |
3 levels Adjusted by PRO or user with admin rights in the Ajax app. |
| False alarm prevention |
DualTone Two-factor glass break verification software algorithm: by low and high frequencies. |
| Input to connect an additional detector |
Wired detector with the normally closed (NC) contact
type. |
| Glass break
characteristics |
|
| Min size of the glass |
400 × 400 mm Detection distance up to 9 m for all glass types when the High sensitivity level is selected. |
| Type of glass and its thickness |
standard pane — 4 mm insulated glass — 4 mm tempered glass — 6 mm |
| Recommendations |
The device is designed for indoor use only. |
| Sabotage
protection |
|
| Tamper alarm |
Notifications on attempts to detach the detector from the
surface or remove it from the mounting panel. |
| Holding screw |
to secure the detector on SmartBracket |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Power supply |
|
| Battery |
1 × CR123A Pre-installed. |
| Type |
type C |
| Calculated battery life |
up to 7 years |
| Operating voltage range |
2.1−3.3 V⎓ |
| Nominal operating voltage |
3 V⎓ |
| Quiescent current consumption at nominal voltage |
11 µA |
| Maximum current consumption at nominal voltage |
2.5 mA |
| Full battery capacity |
1,600 mAh |
| Low battery voltage |
2.4 V⎓ |
| Low battery recovery voltage |
2.7 V⎓ |
| End-of-life battery voltage |
2 V⎓ Device is switched off. |
| End-of-life battery capacity |
250 mAh |
| Enclosure |
|
| Dimensions |
103 × 22 × 21 mm |
| Weight |
40 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP50 |
| Complete set |
GlassProtect U Jeweller SmartBracket mounting panel with holding screw CR123A battery (pre-installed) Outside-mounted terminal clamp Installation kit Quick start guide |
| AJA0398 | GlassProtect U Jeweller Black | In stock | |
| AJA0361 | GlassProtect U Jeweller White | In stock |
