Ajax Superior Button Jeweller
fullscreen

Ajax Superior Button Jeweller

Rated 0/5   0 reviews | 0 Questions
Ajax logo Ajax
  • Emergency Button
  • Controls Appliances
  • Can be Body Worn
Link to videos

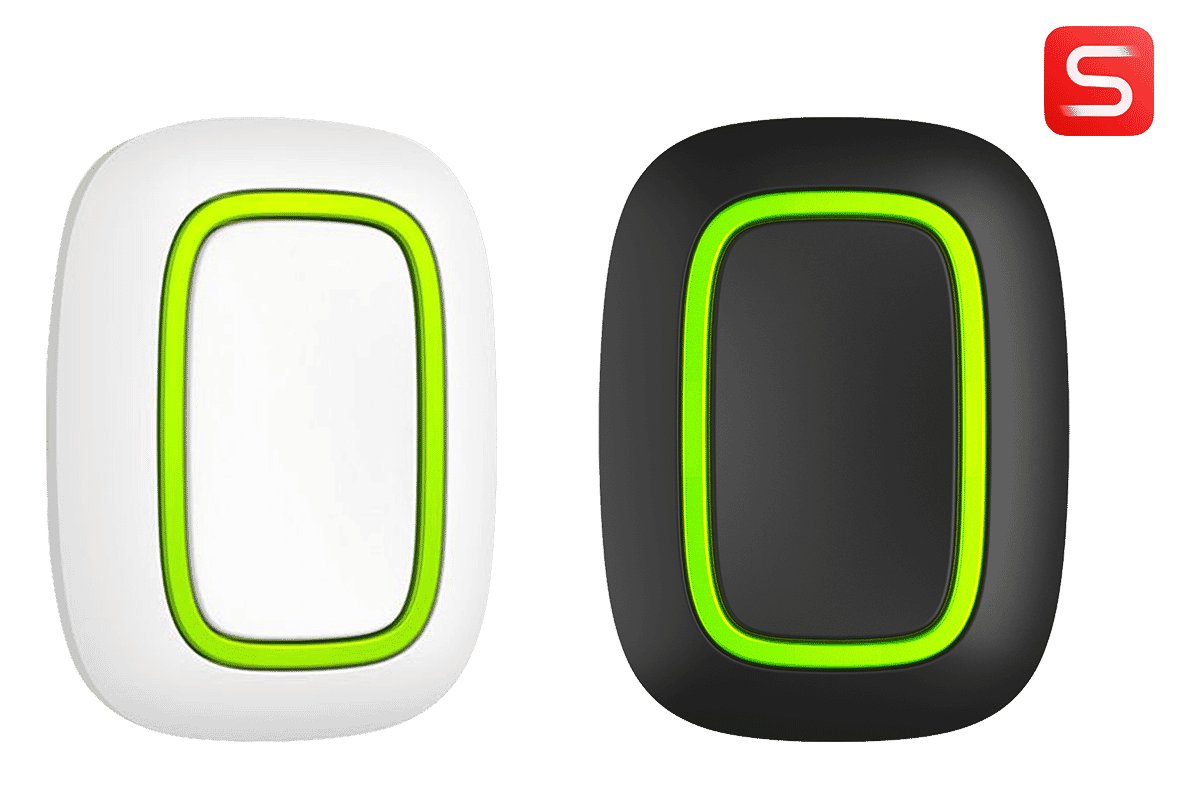

The Ajax Superior Button Jeweller is a wireless panic and remote control button designed for rapid alarm activation or control other alarm functions (Read more)

Loading

There are 2 variants of this product

More Information
RELATED PRODUCTS

PRODUCT DETAILS

The Ajax Superior Button Jeweller is a compact, high-precision wireless panic and remote control button designed for rapid alarm activation in high-security residential, commercial, and industrial environments. As part of the Ajax Superior product line, it offers upgraded durability, enhanced reliability, and robust protection against accidental presses—making it ideal for critical applications where fast, dependable signalling is essential.

Superior Button Jeweller can send an alarm, take care of comfort at the facility, or hush fire alarms. Instantly signal about a fire, leakage, gas smell, or other threats when using the button in panic mode. The device can be set up for a specific alarm event, so the users and CMS will know exactly what happened and take the right action. In control mode, the button can manage lighting and appliances through Ajax automation devices. The button can also hush the sirens of fire detectors in the Mute Fire Alarm mode.

Using Ajax’s secure Jeweller wireless protocol, the Superior Button maintains stable two-way communication with the hub at distances up to 1,700 metres (line-of-sight). A press of the button can instantly trigger a panic alarm, activate automation scenarios, control gates or relays, or send emergency signals to a monitoring centre. Its ergonomic, shock-resistant design ensures comfortable everyday use and long-term dependability.


Features:

  • Instant panic or command activation – sends alarms or triggers automation with a single press
  • Superior-grade build – reinforced construction for professional and high-risk applications
  • Jeweller wireless protocol – secure long-range communication up to 1,700 m
  • Protection against accidental activation – requires intentional press patterns or enhanced safety mode
  • Configurable actions – use for panic alarms, scenario triggers, relay control, arming/disarming, and more
  • LED confirmation – visual feedback that the signal has been sent and received
  • Long battery life – ultra-low power consumption ensures years of dependable operation
  • Ergonomic design – lightweight, compact, and comfortable to carry or mount
  • Optional wearable use – can be carried as a keyfob, worn on a lanyard, or mounted on surfaces
  • Compatible with Ajax hubs and range extenders using Jeweller
YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

Two-way communication.
Advanced sabotage protection.
Block encryption featuring a dynamic key.
Instant notifications.
Remote configuration in the Ajax apps.
Frequency bands
868.0–868.6 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 1,300 m
Between detector and control panel (or range extender) in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Number of buttons
1
LED backlight indicating command delivery
The LED brightness is adjusted in the Ajax apps
Protection against accidental pressing
long or double press
Supervising feature
Superior Button Jeweller will update the status of its battery every day
Power supply
Battery
1 × CR2032
Pre-installed.
Type
Type C
Calculated battery life
up to 5 years
Button’s operating voltage range
1.7–3.3 V⎓
Button’s nominal operating voltage
3 V⎓
Quiescent button’s current consumption at nominal voltage
0.0005 mA
Maximum button’s current consumption at nominal voltage
1 mA
Full capacity
235 mAh
Low battery voltage
2.2 V⎓
Low battery recovery voltage
2.3 V⎓
End of life battery voltage
1.7 V⎓
End of life battery capacity
40 mAh
Manufacturer
Renata
Enclosure
Dimensions
47 × 35 × 13 mm
Weight of the white device
16 g
Weight of the black device
15 g
Operating temperature range
from -10°C to +40°C
Operating humidity
up to 75%
Protection class
IP55, IK04
Complete set
Superior Button Jeweller
CR2032 battery (pre-installed)
Double-sided tape
Quick start guide
