Ajax EN54 FireProtect (Sounder) Jeweller Fire Alarm Sounder - 118603.278
Ajax
- EN54 Certified
- 3 Colours Available
- Up to 5 Years Battery
The Ajax EN54 Indoor FireProtect (Sounder) is a certified audible alarm device designed to deliver a powerful warning signal in the event of fire. (Read more)
PRODUCT DETAILS
The Ajax EN54 Indoor FireProtect Sounder is a certified audible alarm device designed to deliver a powerful warning signal in the event of fire within 3 seconds of a fire alert. Finished in black, red or white, this sounder is both discreet and robust, making it ideal for professional installations where reliable performance and compliance with European fire safety standards are required.
With EN54 certification, the sounder meets stringent safety and reliability requirements, ensuring it can be trusted in critical applications. It integrates seamlessly with the Ajax wireless security and fire detection ecosystem, providing fast, clear, and effective alerts when triggered by detectors or system alarms.
When every second counts, there's no room for delays or dropped
connection. That's why Ajax sounders and VADs use the Jeweller
two-way radio communication protocol. This proprietary Ajax
technology goes beyond the standard and helps activate sounders and
VADs in as little as 3 seconds after a fire alarm is
triggered.
Devices communicate with the CIE at distances1 of up to 1,700
meters out of the box — no external communicators required. For
sites with obstacles, an Ajax range extender can double the
coverage or use an Ethernet connection to create a separate radio
network.

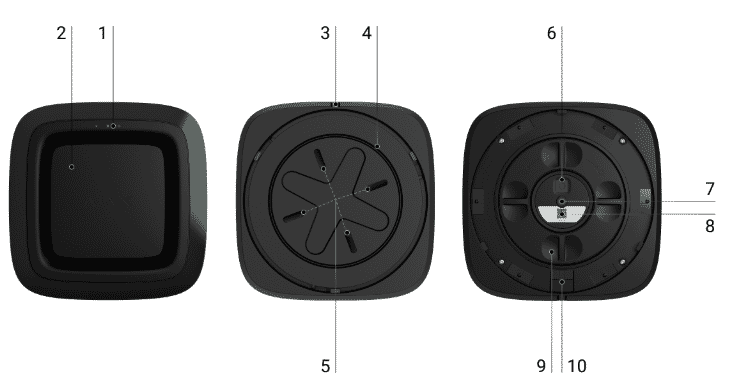

Interface
| No. | Description |
|---|---|
| 1 | LED indicators: green, yellow, and
red |
| 2 | Front panel of the sounder |
| 3 | Hole for a special tool needed to
unlock the lock |
| 4 | SmartBracket mounting panel. To remove
the panel, insert the special tool into the corresponding hole and
turn SmartBracket counterclockwise. If the device is unlocked,
simply turn SmartBracket counterclockwise |
| 5 | Fixing points to attach SmartBracket to
the surface |
| 6 | Power button |
| 7 | Tamper button. It triggers in case of
an attempt to remove the device from the mounting panel |
| 8 | QR code with the device ID. It is used
to add the device to the CIE |
| 9 | Battery compartment cover. To replace
the batteries, turn this cover counterclockwise |
| 10 | Lock to secure the device on
SmartBracket (optionally) |
Features:
- EN54-certified indoor sounder for fire and intrusion alerts
- Powerful acoustic output – loud, clear alarm ensures occupants are quickly alerted
- Wireless connectivity – integrates with Ajax security and fire protection systems
- Compact, stylish design with black finish for unobtrusive installation
- Reliable operation – tested and certified to European safety standards
- Easy installation with tamper protection for added security
| Communication |
|
| Jeweller communication technology |
Proprietary wireless communication
technology to transmit commands, alarms, and events. Key features:
|
| Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,700 m Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
| Encrypted communication |
All stored and transmitted data is protected
by block encryption featuring a dynamic key. |
| Frequency hopping |
To prevent radio interference and
jamming. |
| Alarm
annunciation |
|
| Alarm type |
acoustic |
| Sound volume |
up to 100 dB at a distance of 1 m Adjusted by a PRO or user with admin rights in an Ajax app. |
| Sound pattern |
32 tones |
| Sound synchronization |
An audible alarm is automatically synchronized on all devices
with a sounder connected to the same CIE. |
| Alarm annunciation test |
An audible alarm check to ensure the fire alarm is clearly
audible on the premises. |
| Installation recommendations |
Follow your local fire safety regulations when selecting the
device's installation site. The device is designed for outdoor and indoor use. |
| Sabotage
protection |
|
| Tamper button |
Fault notification when an attempt is made to remove the device
from the mounting panel. |
| Lock for SmartBracket |
to secure the device on the SmartBracket mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
| Protection against spoofing |
device authentication |
| Connection loss detection |
after 36 s Detection time depends on Jeweller settings. |
| Power supply |
|
| Battery |
4 × CR123A Pre-installed. |
| Tool-free battery replacement |
To replace the batteries, turn the battery compartment cover
counterclockwise. |
| Reverse polarity protection |
Prevents device damage if the batteries are put in incorrectly. |
| Recommended battery type |
Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂ |
| Calculated battery life |
up to 5 years |
| Enclosure |
|
| Dimensions |
145 × 145 × 51 mm |
| Weight |
527 g |
| Operating temperature range |
from –10 °C to +50 °C |
| Operating humidity |
up to 80% |
| Protection class |
IP54 |
| Flammability rating |
UL 94 V-0 |
| Complete set |
EN54 FireProtect (Sounder) Jeweller 4 × CR123A battery (pre-installed) SmartBracket mounting panel Installation kit Quick start guide |
| AJA0339 | Ajax EN54 FireProtect (Sounder) Black | In stock | |
| AJA0341 | Ajax EN54 FireProtect (Sounder) Red | In stock | |
| AJA0340 | Ajax EN54 FireProtect (Sounder) White | In stock |
