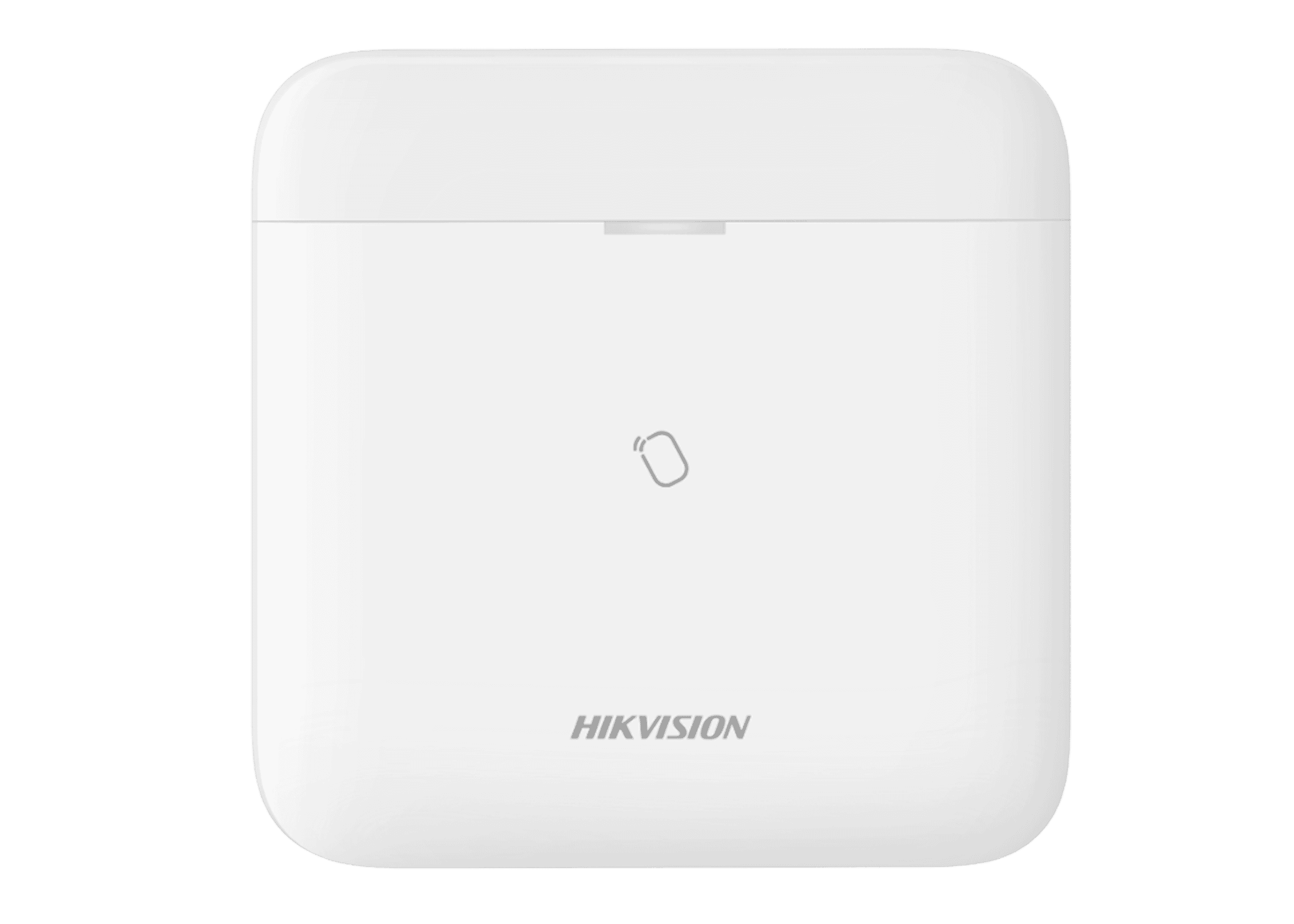

Hikvision DS-PWA96-M-WE 96 Zone AXPRO Wireless Alarm Panel LAN/WiFi/4G
Hikvision
- Wireless Connectivity
- Up to 96 Zones
- 3 year guarantee
The DS-PWA96-M-WE is a 96 zone 2 way wireless alarm panel with TCP/IP, Wi-Fi, GPRS designed to be used with the Hikvision AX PRO wireless alarm system (Read more)
PRODUCT DETAILS
The Hikvision DS-PWA96-M-WE is a 2 way wireless alarm panel that is designed to be used with the Hikvision AX PRO wireless alarm system.
Featuring Wi-Fi, TCP/IP and 3G/4G communication methods, the DS-PWA96-M-WE connects up to 96 wireless zones, 48 wireless keyfobs, 4 wireless repeaters, 6 wireless sounders, 8 tag readers & keypads and a Hikvision PIR Cam, and can store up to 5000 event logs.
The DS-PWA96-M-WE uses Tri-X, a new generation of wireless protocol, which ensures a strong and steady network at all times, and the two way communication is AES-128 encrypted.
The AX PRO wireless alarm system is a cloud based security system and is completely controlled and configured using the Hik-Connect app via a tablet or smartphone device. Once the alarm is triggered, the DS-PWA96-M-WE can provide alarm notification via message or phone call and can send images via the PIR Cam.
Features:
- TCP/IP, Wi-Fi, and 3G/4G network
- New generation wireless protocol: Tri-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs, 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads, and PIRCAM
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views life videos from Hik-Connect
- Alarm video clips via emails and APP
- Uploads alarm reports to ARC
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
| Basic | |
| Frequency |
868Mhz |
| Wireless type |
2-way wireless |
| Wireless Security |
Frequency Hoping 128 AES Encryption |
| Wireless Zones |
Up to 96 |
| Wireless Outputs |
Up to 96 |
| Wireless Tag Readers & Keypads |
Up to 8 |
| Wireless Sounders |
6 |
| Wireless Keyfobs |
48 |
| Wireless Repeaters |
4 |
| Tags | 48 |
| PIRCAM |
Supported |
| Onboard IP CAMERA Integration |
4 x 7s clips 4 clips have their own storage,do not override
each other |
| User | |
| Installer |
1 |
| Admin |
1 |
| Users |
46 |
| Key Software Features |
|
| Areas |
32 |
| Voice prompt |
Supported |
| Loudspeaker built in |
Supported |
| Tag reader built in |
Supported |
| LEDs Status |
Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
| Memory Log stored |
5000 |
| RS-232 output |
Supported |
| Programming tools |
Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/Convergence
Cloud |
| Firmware upgrade |
APP Auto/Manual |
| Arm Modes |
Away/Stay |
| Automatic Arm/Disarm Timers |
Supported |
| Forced Arming with Open Zones |
Supported |
| Diagnostics of via the APP or Web |
Supported |
| Communication |
|
| LAN port |
Supported |
| Wi-Fi on board |
Supported (2.4G) |
| GPRS on board |
N/A |
| 3/4G on board |
Supported |
| SIM slot |
Dual |
| SMS notification |
Supported |
| Alarm voice call |
Supported |
| ARC protocol |
SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) |
| User APP for operating |
Supported |
| Web server for maintenance (offline configuration) |
Supported |
| Hardware | |
| Battery Stand by |
12 hours |
| Power Supply |
Built in power supply |
| Battery pack |
Built in on board Battery Li |
| Housing |
Plastic |
| Automation |
|
| Schedules |
Wall switch & Relay & Plug (Has time
schedule) |
| Approvals |
|
| EN |
EN50131 Grade 2 |
| CE |
Supported |
| Rohs/Reach/WEEE |
Supported |
| Others | |
| Operation temperature |
-10 °C to +55 °C |
| Dimension (W x H x D) |
170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5") |
| Weight |
557.5 g(19.7 oz) |
