This product is discontinued and out of stock
CLEARANCE
Aura HDMI V1.4 USB KVM Cat 6 Extender 4K/120m PoE
Aura HDMI V1.4 USB KVM Cat 6 Extender 4K/120m PoE
Aura HDMI V1.4 USB KVM Cat 6 Extender 4K/120m PoE
swipe to view images
fullscreen

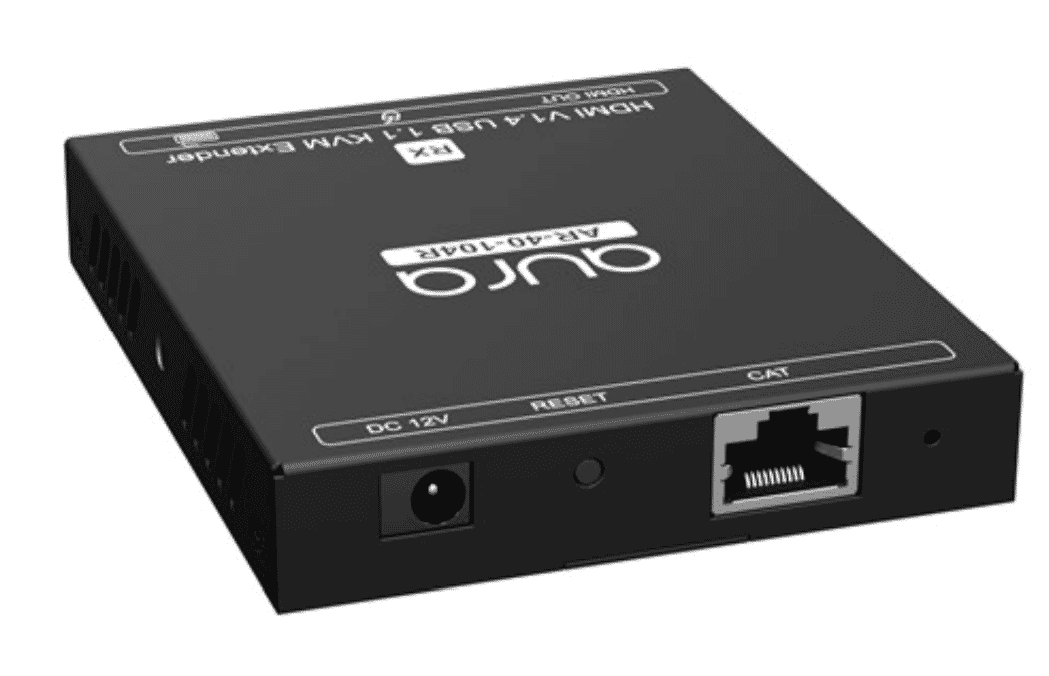

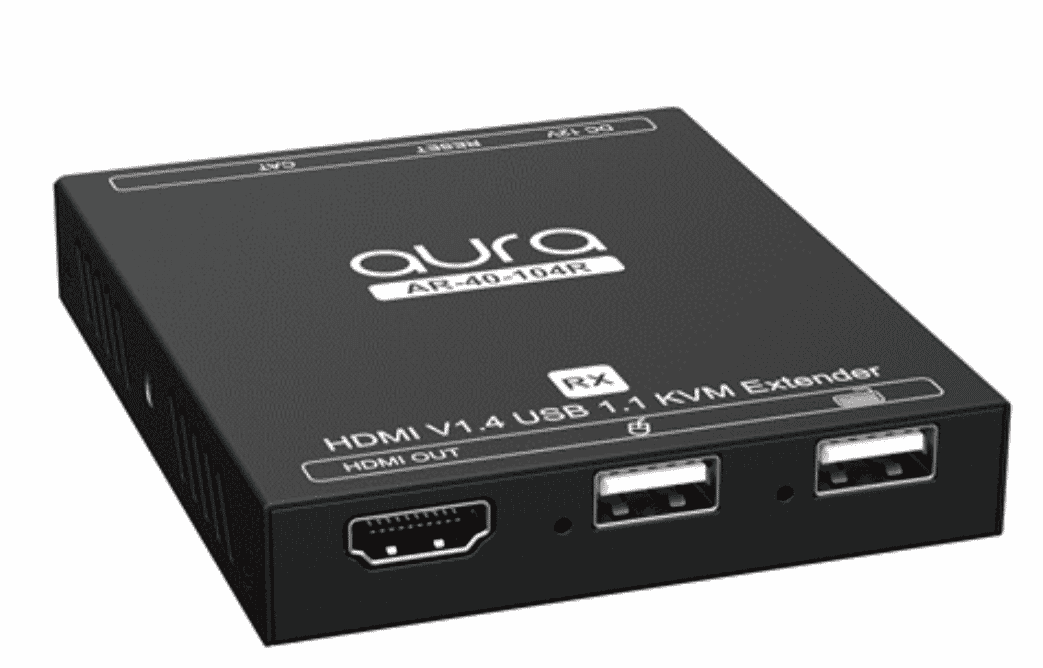

Aura HDMI V1.4 USB KVM Cat 6 Extender 4K/120m PoE

Rated 0/5   0 reviews | 3 Questions
aura logo aura
  • Up to 4K Resolution
  • PoE Powered
  • Supports KVM functions

The Aura HDMI V1.4 HDMI Cat 6 extender can increase a 4K 30Hz signal up to 70m and a 1080p HD signal up to 120m over a single Cat 6 cable (Read more)

Loading
Discontinued
Product CodeAUR0003
ModelAR-40-104
More Information
RELATED PRODUCTS

PRODUCT DETAILS

The Aura AR-40-104 is a is comprised of a transmitter unit and receiver that can extend an HD signal by up to 120m over a single Cat 6 which reduces the need for unnecessary cables, thereby lowering the cost of the job and making installation easier.

Please note: The Aura AR-40-104 cannot be used without an A-A Male to Male USB cable, which can be found here

Ultra-High 4K Resolution

The Aura AR-40-104 can transmit a 4K ultra high HD signal up to 70m and a 1080p HD signal up to 120m, making it ideal for devices such as PC, Sky TV, Blue ray & CCTV.

PoE Powered

The Aura AR-40-104 features PoE (Power over Ethernet) which provides both power and signal over a single ethernet cable. This eliminates the need for a separate power cable and speeds up installation.

Supports KVM

The KVM (Keyboard, Video & Mouse) feature on the AR-40-104 is designed to increase the distance between a keyboard, monitor & mouse and the computer console without any deterioration of performance. This is very convenient option when you need Remote PC access or multi-PC access, or if you need to store the PC console in a secure environment.

Features:

  • Extends 4K ultra-HD signal @ 30Hz over Cat 6 cable up to 70 metres
  • Extends 1080P HD signal over Cat 6 up to 120 metres
  • Extends USB signal
  • Control keyboard, video and mouse remotely
  • PoE Powered
  • HDMI local loop out
YOU MIGHT ALSO NEED
Loading





Loading





Loading





Loading





Loading





Loading





SPECIFICATIONS
Specifications
Connection 1
HDMI
Connection type (connection 1)
Socket (Female)
Connection 2
x2
Connection type (connection 2)
Socket (Female)
4K 30Hz
Up to 70m
1080p HD Up to 120m
IR Support
None
Main Power
12v
Remote Power
PoE
USEFUL FILES AND LINKS
Videos
No videos available
Files
  Aura KVM Cat 6 Extender Datasheet
Links*
aura website

* External websites provide additional content that supports the content on connectec.uk however the external Web site is subject to change and is beyond the control of Connectec Ltd. Connectec cannot guarantee the accuracy of content on external websites and does not endorse the information or products on any external websites. You will be subject to the external websites own privacy policy when you follow these links.

QUESTIONS AND ANSWERS

Get expert answers to questions specific to this product below or for more help visit our Q&A forum


Can a second receiver be added so the pc can be controlled from two separate locations? And does the cable need to go direct to the receiver or can it be run through network switches?
( )
To operate a device from 2 locations, you would need 2 of these and HDMI splitter at the source. The cable needs to be direct between the transmitted and receiver as they do not support connection through switches.
( )
Will this work via a poe switch?
( )
This item is not designed to work via a POE switch
( )
Hi, I have a cctv solution whereby I cannot get a KVM/USB/HDMi extender ( 80mtrs of Cat5e) to transit between CCTV NVR and monitor Each of the 4x images on the display is 1080p / 2600M/bit/s - Would the above oriductc suffice in this scenario?
( )
Yes. This unit will allow 1080p image from a HDMI source and USB mouse control of devices over data cable up to a maximum distance of 120m. We would recommend using Cat 6 where possible and good quality HDMI cables at either end.
( )
