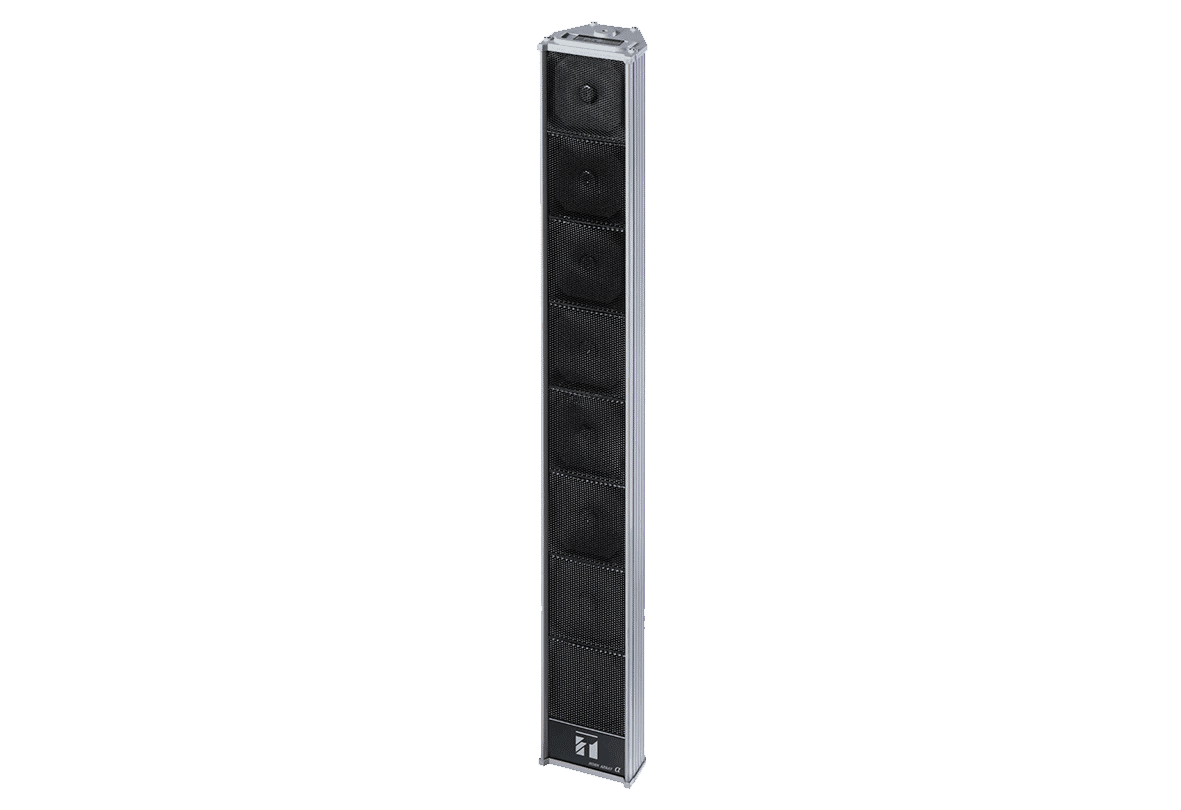

TOA HA-1010-EB Long Range Horn Array Speaker, 60w, 114dB (includes bracket)
TOA
- Long-Range Sound
- Compact & Lightweight
- Multi-Horn Array
The TOA HA-1010-EB is a slim, long-range horn array speaker engineered for exceptional sound projection, capable of delivering audio up to 600 meters (Read more)
PRODUCT DETAILS
The TOA HA-1010-EB is a slim, long-range horn array speaker engineered for exceptional sound projection. Capable of delivering clear audio over distances of up to 600 metres—twice that of conventional horn speakers—it is ideal for applications requiring extended coverage, such as large outdoor spaces, industrial sites, and transportation hubs.
Beyond its long-range capabilities, the HA-1010-EB also enhances speech intelligibility at standard listening distances, especially in challenging acoustic environments. Unlike traditional systems that require numerous speakers (often resulting in signal overlap and reduced clarity), the HA-1010-EB features a multi-horn array design that improves directional sound delivery. This not only reduces the number of speakers needed but also ensures crisper, more intelligible announcements across the coverage area.
Features:
- Long-range sound coverage two times further than conventional horn speakers
- Better speech intelligibility thanks to horn array technology
- Compact and lightweight design
- Wide temperature range: -20 to +55 °C
| Specifications |
|
|---|---|
| Frequency response | 350 Hz - 7 kHz |
| Sensitivity (1 W, 1 m) | 114 dB |
| Max. SPL (1 m) | 132 dB SPL |
| Rated input (100 V) | 50 W |
| Tappings (100 V) | 100 V Line: 200 ohms (50 W), 330 ohms (30 W) |
| Speaker component | Horn speaker unit x 8 |
| Operating temperature | -20°C ... +55°C |
| Finish | Aluminium, grey |
| Dimensions | 167 x 1233 x 140.5 mm (W x H x D) |
| Weight | 13.5 kg |
| Dust / Water protection. | IPX5 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| TOA HA-1010-EB Datasheet |
| Links* |
|---|
| TOA website |
| TOA support site |
