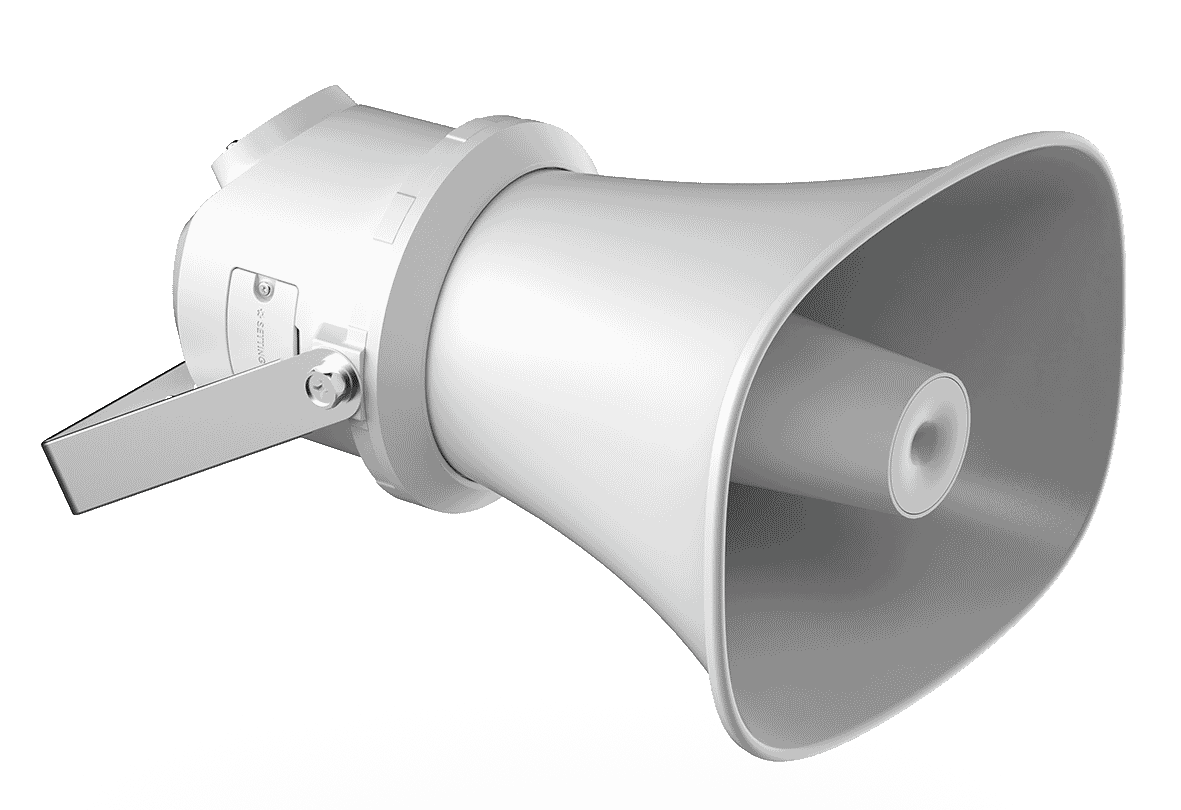

Hikvision DS-QAZ1307G1T-E(C) Network Horn Speaker Dual POE 10W
Hikvision
- Dual PoE Support
- Up to 121dB
- 3 year guarantee
The Hikvision DS-QAZ1307G1T-E(C) is a professional network horn speaker designed for clear, high-volume audio broadcast in public address situations (Read more)
PRODUCT DETAILS
The Hikvision DS-QAZ1307G1T-E(C) is a professional network horn speaker designed for clear, high-volume audio broadcast in security, safety, and public address applications. With 10W output power and dual PoE support, it provides flexible installation and reliable operation in both indoor and outdoor environments.
Fully integrated into Hikvision IP systems, this network speaker supports live voice broadcasting, scheduled announcements, and alarm audio linkage from VMS platforms such as HikCentral and Hikvision NVRs. Its horn-style design ensures sound is projected clearly over long distances, making it ideal for perimeter security, industrial sites, car parks, and public spaces.
Features:
- 10W network horn speaker for loud, clear audio output
- Dual PoE support – compatible with standard PoE and enhanced PoE for flexible deployment
- IP network connectivity – integrates directly with Hikvision IP systems and VMS platforms
- Supports live and scheduled broadcasting as well as alarm-triggered audio
- High-efficiency horn design for long-distance sound projection
- Rugged construction suitable for demanding environments
- Remote management and control via Hikvision software platforms
| Microphone | |
| Type | electret |
| Amount | 2 |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16 bit |
| Speaker | |
| Rated Power | 7 W |
| Impedance | 8 Ω |
| Max. Acoustic Pressure | 121 dBSPL |
| Sensitivity(1 m, 1 W) | 110 dB |
| Direction | 70° horizontal by 100° vertical |
| Frequency Response | 300 Hz to 13 kHz |
| SNR | 85 dB |
| Function | |
| Audio Algorithm | AEC、AGC、ANS、DRC |
| Audio Bit Rate | G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) |
| Audio File Format | MP3, WAV |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French |
| Network | |
| Network Protocol | IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface Protocol (API) | ISAPI, ISUP, SIP, RTP,ONVIF |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication | |
| Communication Method | Support wired network communication |
| Interface | |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port × 1 |
| Power Output | 12 VDC, 25 mA(max.) |
| Local Storage | Built-in 4 GB EMMC (Audio file storage is 1 GB.) |
| API | ISAPI, ISUP, SIP,ONVIF |
| Alarm | Alarm input ×1; line in × 1 |
| Reset | Support |
| General | |
| Material | Metal |
| Operating Temperature | -40 °C to 60 °C(-40 °F to 140 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Language | 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese |
| Dimension | 182.4 mm × 273.87 mm × 239.38 mm (7.18" × 10.78" × 9.42") |
| Power | POE IEEE 802.3at 16.4w(max) |
| Package Dimension | 310 mm × 245 mm × 350 mm (12.2" × 9.6" × 13.8") |
| Approx. 2.1 kg (4.63 lb.) | |
| Color | White |
| With Package Weight | Approx. 3.0 kg (6.61 lb.) |
| Packing List | Device × 1 Regulatory Compliance and Safety Information × 1 |
| Approval | |
| Protection | IP67, IK10 |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
