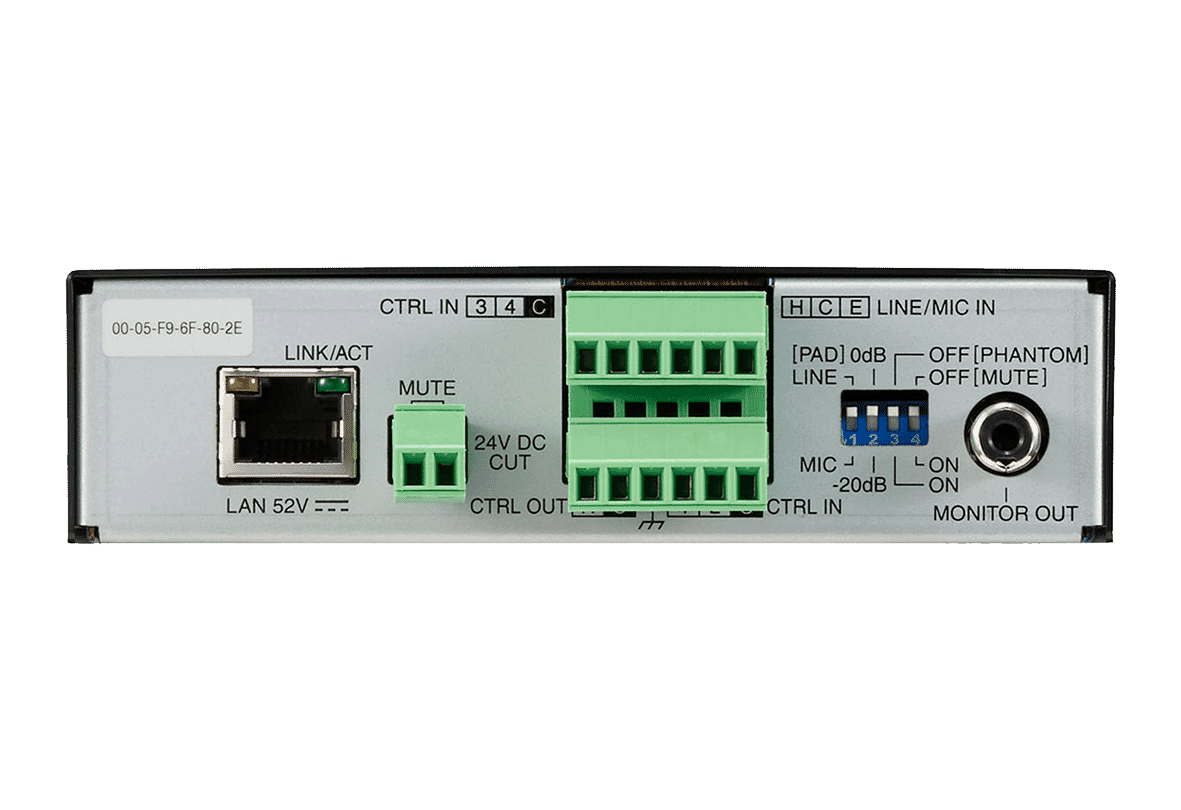

TOA IP-A1PG IP Paging Gateway and Messaging Unit with On Board Scheduling

The TOA IP-A1PG IP Paging Gateway is designed to seamlessly connect IP-based paging into existing network infrastructures. Built on open standards, it integrates effortlessly with video management systems (VMS) and SIP-based communication platforms, using a single network cable for both power (PoE) and connectivity—simplifying installation and reducing cabling requirements.

The IP-A1PG converts SIP/ONVIF calls into multicast audio streams, enabling group paging even for systems that are not inherently multicast-capable. It also features a multicast-ready audio input, allowing connection of analogue sources—such as microphones or background music players—and distributing that audio to multiple IP devices simultaneously across the network.

With support for HTTP command sets triggered via API or control inputs, the IP-A1PG offers integration flexibility for automation and custom workflows.

Through its intuitive web interface, users can create and manage custom time schedules to automate announcements, background music, or paging routines—providing convenient, reliable communication management.

Features:

• Convert SIP audio, ONVIF* audio, internal audio files or local audio source into multicast streaming (up to 20 addresses)
• System mute function to mute all broadcasts of IP-A1 series devices within the same network
• 1 local audio input (LINE/MIC and phantom power selectable)
• API (HTTP commands)
• Transmission of up to 10 HTTP command sets (consisting of up to 20 commands each)
• Audio file storage (20 files, total 80 MB, WAV/MP3)
• 5 control inputs and 1 control output
• PoE-powered
