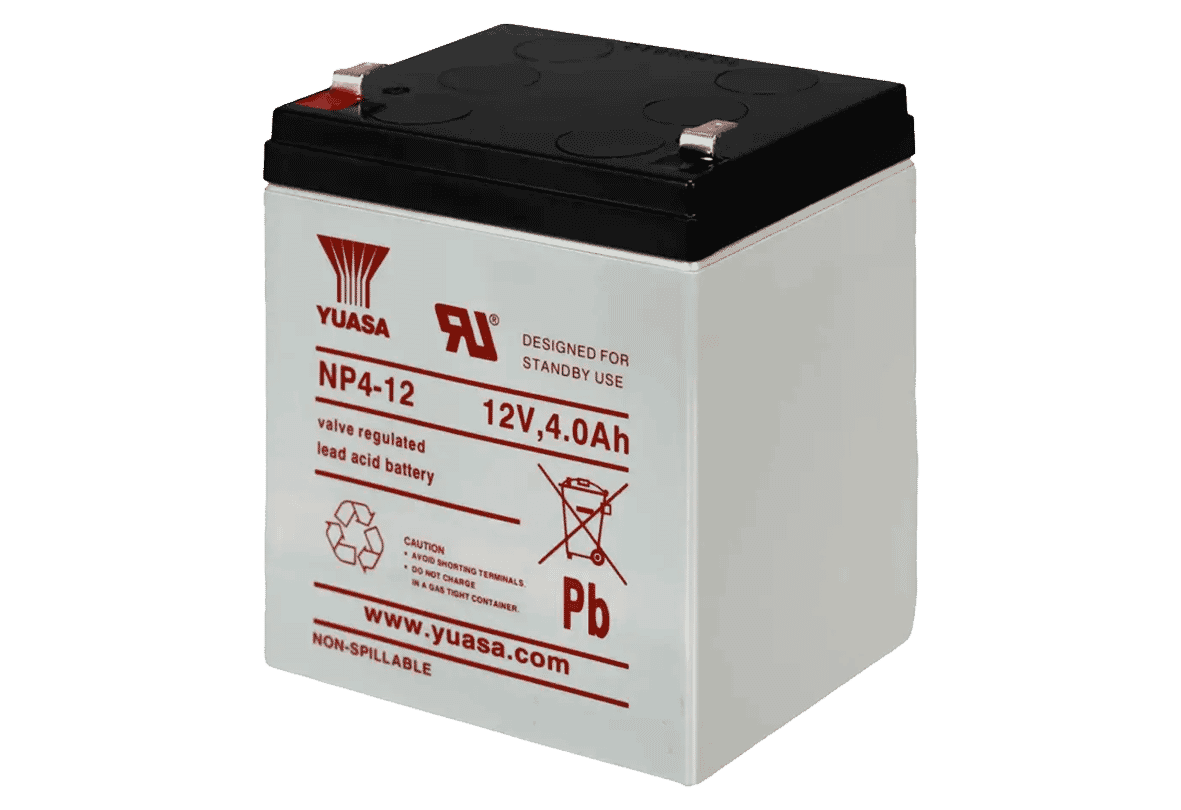

Yuasa NP4-12 12V 4A Sealed Lead Acid Battery
Yuasa
- Maintenance free
- Individually tested
- Longer Life Span
Yuasa NP4-12 12 Volt 4Ah lead acid batteries are individually tested with have a longer life span than conventional rechargeable lead batteries. (Read more)
PRODUCT DETAILS
The Yuasa Yucel NP4-12 is a maintenance-free, 12V 4Ah sealed lead acid battery that is commonly used in alarm systems, emergency lighting and other stand-by power applications requiring a high-rate discharge. Each battery is individually tested and features a longer life span than conventional lead acid batteries, making them ideal for critical applications where reliability is paramount.
Featuring AGM (Absorbed Glass Matt) technology, the NP4-12 retains the maximum number of electrolytes in its cells and the valve regulating design ensures safe, low pressure venting of excess gas.
Features:
- EUROBAT Classification: 3 to 5 years 'Standard Commercial'
- General purpose VRLA battery
- Lead Calcium Grids for superior life
- Absorbed Glass Mat construction with no free acid
- Gas recombination
- Manufactured world wide
- Good recovery from deep discharge
- Operation in any orientation (excluding continuous inverted use)
| SPECIFICATIONS |
|
| Nominal voltage |
12V |
| 20-hr rate Capacity to 1.75VPC at
20°C |
4Ah |
| 10-hr rate Capacity to 1.75VPC at
20°C |
3.7Ah |
| DIMENSIONS |
|
| Length |
90 (±1) mm |
| Width |
70 (±1) mm |
| (height over terminals) |
106 (±2) mm |
| Mass (typical) |
1.75 kg |
| TERMINAL TYPE |
|
| FASTON (Quickfit / release) |
4.75 mm |
| OPERATING TEMPERATURE
RANGE |
|
| Storage |
-20°C to +60°C |
| Charge |
-15°C to +50°C |
| Discharge |
-20°C to +60°C |
| STORAGE |
|
| Capacity loss per month at 20°C
(approx) |
3 % |
| CASE MATERIAL |
|
| Standard Option |
ABS (UL.94:HB) |
| Flame retardant option (FR) |
ABS (UL94:V0) |
| CHARGE VOLTAGE |
|
| Float charge voltage at 20°C |
13.65 (±1%) V 2.275 (±1%) V/cell |
| Float Charge voltage temperature
correction factor (for variations from the standard 20°C) |
-3 mV/cell/°C |
| Cyclic (or Boost) charge at
20°C |
14.5 (±3%) V 2.275 (±3%) V/cell |
| Cyclic Charge voltage temperature
correction factor (for variations from the standard 20°C) |
-3 mV/cell/°C |
| CHARGE CURRENT |
|
| Float charge current limit |
No limit |
| Cyclic (or Boost) charge current
limit |
1 A |
| MAXIMUM DISCHARGE
CURRENT |
|
| 1 Second | 120 A |
| 1 minute |
40 A |
| SHORT-CIRCUIT CURRENT &
INTERNAL RESISTANCE (according to EN IEC 60896-21) |
|
| Internal resistance |
N/A |
| Short-Circuit current |
N/A |
| IMPEDANCE |
|
| Measured at 1 kHz |
40 mΩ |
| DESIGN LIFE |
|
| EUROBAT Classification: Standard
Commercial |
3 to 5 years |
| Yuasa design life @ 20°C |
up to 5 years |
| SAFETY |
|
| Installation |
Can be installed and operated in any
orientation except permanently inverted |
| Handles |
Batteries must not be suspended by
their handles (where fitted) |
| Vent valves |
Each cell is fitted with a low pressure
release valve to allow gasses to escape and then reseal. |
| Gas Release |
VRLA Batteries release hydrogen gas
which can form explosive mixtures in air. Do not place inside a
sealed container |
| Recycling |
YUASA's VRLA batteries must be recycled
at the end of life in accordance with local and national laws and
regulations |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Yuasa NP4-12 Datasheet |
| Links* |
|---|
| Yuasa website |
| Yuasa support site |
