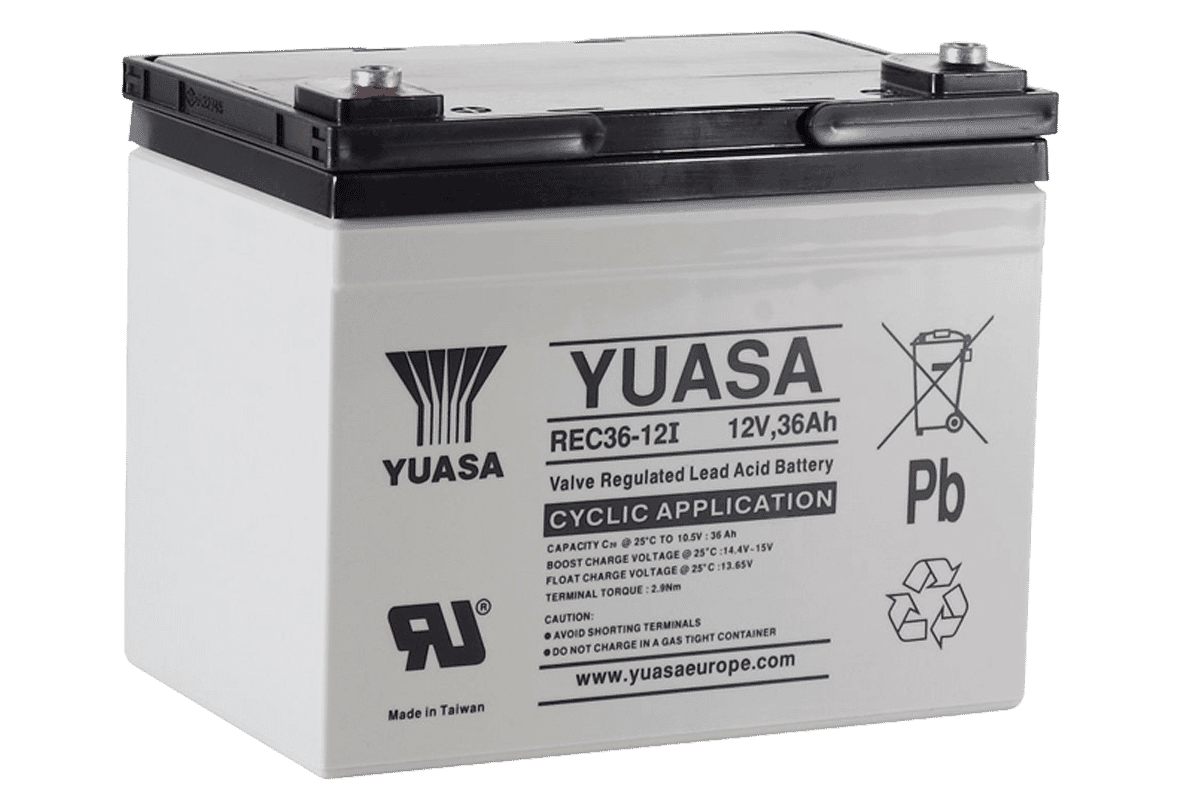

Yuasa REC36-12I 12V 36Ah REC series AGM VRLA Lead Acid Battery
Yuasa
- High-Capacity Design
- Maintenance-Free
- Long Service Life
The Yuasa REC36-12I is a high-capacity 12V 36Ah rechargeable sealed lead-acid back-up battery, designed for standby and cyclic power applications. (Read more)
PRODUCT DETAILS
The Yuasa REC36-12I is a high-capacity 12V 36Ah rechargeable sealed lead-acid battery designed for standby and cyclic power applications where dependable backup performance is essential. Part of Yuasa's trusted REC range, it is engineered to deliver reliable power storage and long service life for security, fire, emergency lighting, telecommunications, and renewable energy systems.
Featuring advanced valve-regulated lead-acid (VRLA) technology, the REC36-12I is maintenance-free and designed for safe operation in a wide range of professional installations. Its robust construction and deep discharge recovery characteristics make it particularly suitable for applications that require regular charging and discharging, as well as dependable standby power during mains failures.
Features:
- Enhanced for extended cyclic use, with a design life of 500 cycles at 75% depth of discharge, with the potential to exceed over 1000 cycles depending on the average depth of discharge
- Provided double the lifespan of conventional NP series batteries in cyclic applications
- Engineered for superb recovery from deep discharge, to ensure reliable performance
- Durability for deep discharge use, with advanced plate barrier prevention & unique separator systems to enhance deep discharge durability, prolonging battery life
- Advanced construction techniques significantly extend service life, delivering unparalleled durability & performance
- Gas recombination technology effectively recombines 99% of the gas generated during normal use
- Low self discharge rate ensures a long shelf life, maintaining charge over extended non-use periods
- Sealed construction prevents electrolyte leakage for a safe & low maintenance battery, however regular testing and inspection is required
- Can be used in any orientation with no performance compromise, excluding continuous inverted use
- Valve regulated design features a low-pressure venting system to release excess gas, ensuring maximum safety in the event of overcharging
- Optimised grid design for superior energy density, provides extended service life & consistent power delivery
- Absorbent Glass Mat (AGM) technology with unique electrolyte suspension system utilises a glass fibre separator material to retain optimised electrolyte distribution
| Specifications |
|
| Nominal voltage (V) |
12 |
| 10m rate Constant Power (Typ) to 9.6V
at 20°C (/Block) |
952.381 |
| 10m rate Constant Power (Typ) to
1.6V/cell at 20°C (/Cell) |
158.7302 |
| 20-hr rate Capacity to 1.75V /Cell at 20°C (Ah) |
36 |
| 10-hr rate Capacity to 1.8V /Cell at 20°C (Ah) |
32 |
| Dimensions |
|
| Length (mm) |
196 (±2) |
| Width (mm) |
130 (±2) |
| Height over terminals (mm) |
158 (±3) |
| Mass (kg) |
11.2 |
| Terminal Type |
|
| Terminal Type |
M5 (F) |
| Torque (Nm) |
2-3 |
| Operating Temperature
Range |
|
| Storage (in fully charged
condition) |
-15°C to +45°C |
| Charge |
-15°C to +45°C |
| Discharge |
-15°C to +45°C |
| Storage |
|
| Capacity loss per month at 20°C (%
approx.) |
3 |
| Case Material |
|
| Standard |
ABS (UL94:HB) |
| Charge Voltage |
|
| Float charge voltage at 20°C
(V)/Block |
13.65 (±1%) |
| Float charge voltage at 20°C
(V)/Cell |
2.275 (±1%) |
| Float Charge voltage temp correction
factor from standard 20°C (mV) |
-3 |
| Cyclic (or Boost) charge Voltage at
20°C (V)/Block |
14.52 (±3%) |
| Cyclic (or Boost) charge Voltage at
20°C (V)/Cell |
2.42 (±3%) |
| Cyclic Charge voltage temp correction
factor from standard 20°C (mV) |
-4 |
| Charge Current |
|
| Float charge current limit
(A) |
9 |
| Cyclic (or Boost) charge current limit
(A) |
9 |
| Maximum Discharge
Current |
|
| 1 second (A) |
360 |
| 1 minute (A) |
140 |
| Short-Circuit Current &
Internal Resistance |
|
| Internal resistance (mΩ) measured at 1
kHz |
8.7 |
| Cyclic Life Data |
|
| 100% DOD down to 80%
capacity |
300 |
| 75% DOD down to 80% capacity |
500 |
| 50% DOD down to 80% capacity |
600 |
| 25% DOD down to 80% capacity |
1400 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Yuasa REC36-12I 12V 36Ah Datasheet |
| Links* |
|---|
| Yuasa website |
| Yuasa support site |
