Replaced by Eve ER34615 Lithium 3.6V 19Ah D Cell Battery

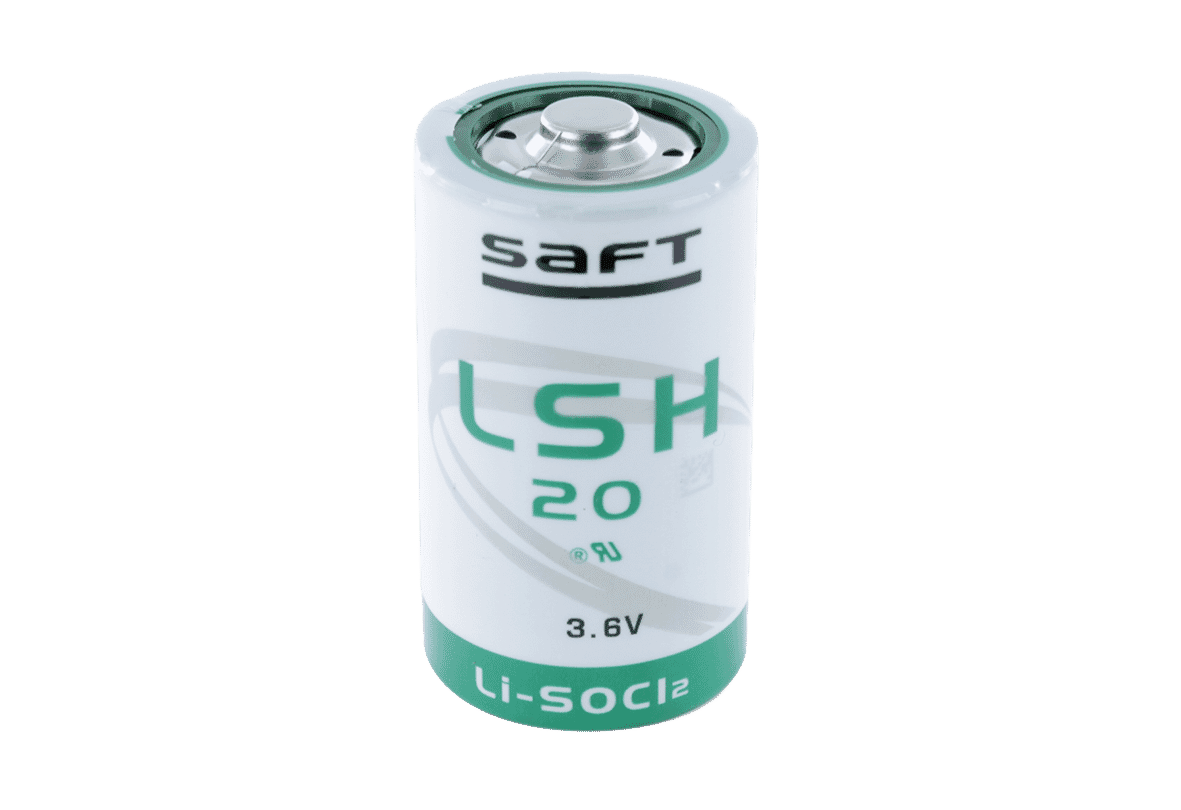

SAFT 3.6v Lithium D Cell Battery LSH20
Saft
- Long life lithium battery
- Highly reliable
- 10 Year shelf life
The 3.6v LSH20 lithium battery is a long life non-rechargeable battery used for high power devices such as wireless beams and security detection equipment (Read more)
PRODUCT DETAILS
The LSH20 is a 3.6 volt non-rechargeable lithium thionyl chloride battery that is designed for high power devices requiring extended battery life such as wireless security detectors.
Common uses include
- Radio communication and other military applications
- Alarms and security systems
- Beacons and emergency location transmitters
- GPS
- Metering systems
- Sonobuoys
- Tracking systems
- GSM communication
Features
- Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard
- High voltage response, stable during most of the lifetime of the application
- High drain/pulse capability
- Wide operating temperature range (-60°C/+85°C)
- Low self-discharge rate with long shelf life
- Stainless steel container
- Hermetic glass-to-metal sealing
- Built-in safety vent
- Finish with 5 A fuse
- Non-flammable electrolyte
| Specification | |
| Nominal capacity |
13.0 Ah |
| Open circuit voltage (at + 20°C) |
3.67V |
| Nominal voltage (at 0.5 mA + 20°C) |
3.6V |
| Maximum recommended continuous current |
1800 mA |
| Storage |
+ 30°C (+ 86°F) max |
| Operating temperature range |
- 60°C/+ 85°C |
| Li metal content |
approx. 3.8 g |
| Diameter (max) |
33.4 mm (1.32 in) |
| Height (max) |
61.6 mm (2.42 in) |
| Typical weight |
100 g (3.5 oz) |
| Videos |
|---|
| -- No videos available -- |
| Files |
|---|
| SAFT 3.6v Lithium D Cell Battery LSH20 datasheet |
| SAFT 3.6v Lithium D Cell Battery LSH20 safety information |
| Links* |
|---|
| Saft website |
