48V DC 3.34A 160W GST160A48-R7B Inline Power Supply with R7B M Outlet Plug
Mean Well
- 48V DC output
- 4 Pin DIN Connector
- Built-in Protections
The Mean Well GST160A48-R7B is a high-performance, 3.34A AC-DC power supply with a power output of 160W & a 48V DC output, with a 4 pin DIN connector. (Read more)
PRODUCT DETAILS

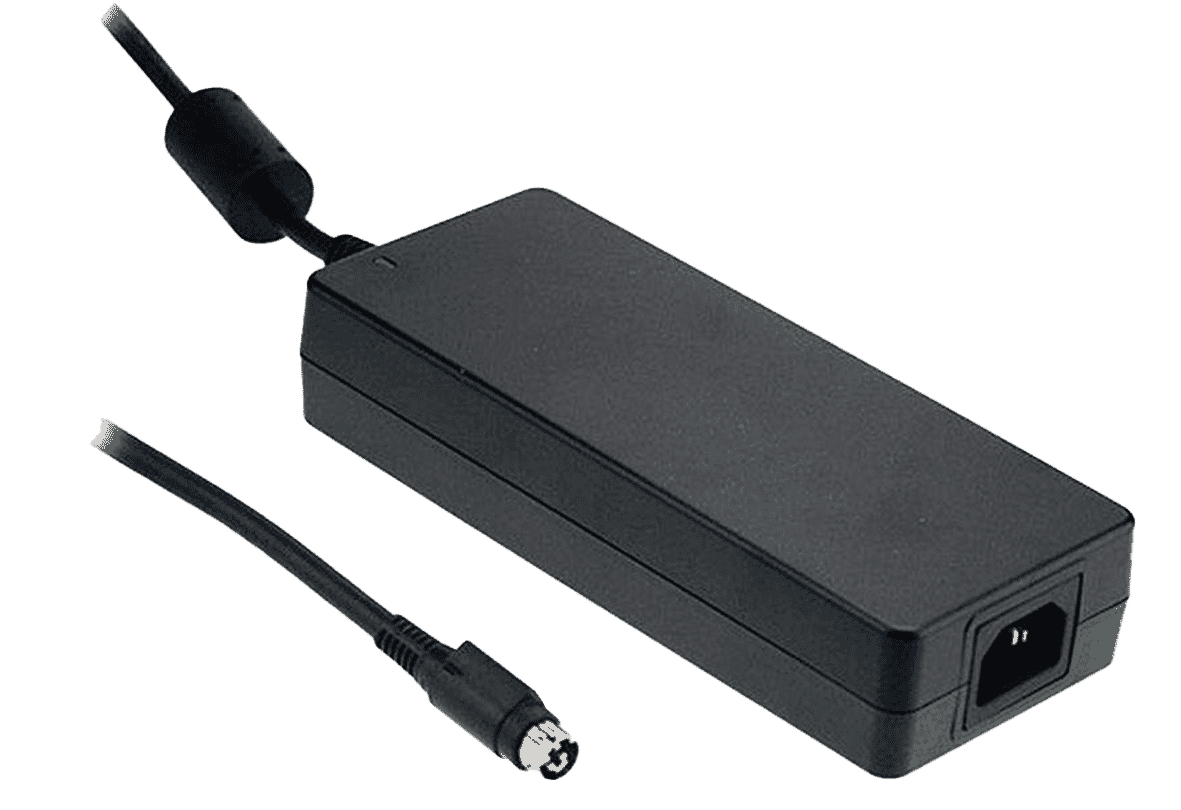

The Mean Well GST160A48-R7B is a high-performance, compact 3.34A AC-DC power supply with a power output of 160W and a 48V DC output. It features a R7B 4 pin DIN style plug that commonly used in various types of lighting systems, mainly as power supply interfaces for LED systems, halogen lamps, telecommunications devices, and other devices that require a stable and high-quality power source.
Features:
- 160W with 48V DC output, providing a stable and reliable power source.
- Operating with high efficiency, this power supply reduces energy consumption and minimizes heat generation, ensuring long-term reliability and lower operating costs.
- Accepts universal AC input voltage from 90V to 264V, making it suitable for global use in diverse voltage environments.
- Small form factor allows for easy installation in tight spaces, making it a flexible solution for industrial control systems and automation equipment.
- Overcurrent, Overvoltage, and Short-Circuit Protection: Built-in protections ensure safe operation and safeguard both the power supply and connected devices from electrical faults.
- Meets international safety and EMC standards, including UL, CE, and TUV, ensuring the power supply adheres to regulatory requirements for various markets.
| Specifications |
|
| Description |
AC-DC Industrial desktop adaptor with PFC;
Output 48Vdc at 3.34A; 3 pole AC inlet IEC320-C14 |
| Application |
ITE EN/UL/IEC 60950 |
| Technology |
AC/DC |
| Power Format |
Desktop |
| Output Power (W) |
160 |
| Output Voltage (V) |
48 |
| Output Current (A) |
3.34 |
| Input Voltage (V) |
110/230 universal input 85 - 264 |
| Width (mm) |
72 |
| Height (mm) |
35 |
| Depth (mm) |
175 |
| Dimming Technology |
No Dimming |
| Warranty |
36 Months |
| RoHS |
Compliant |
| Net weight (gram) |
680 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| GST160A48-R7B Datasheet |
| Links* |
|---|
| Mean Well website |
