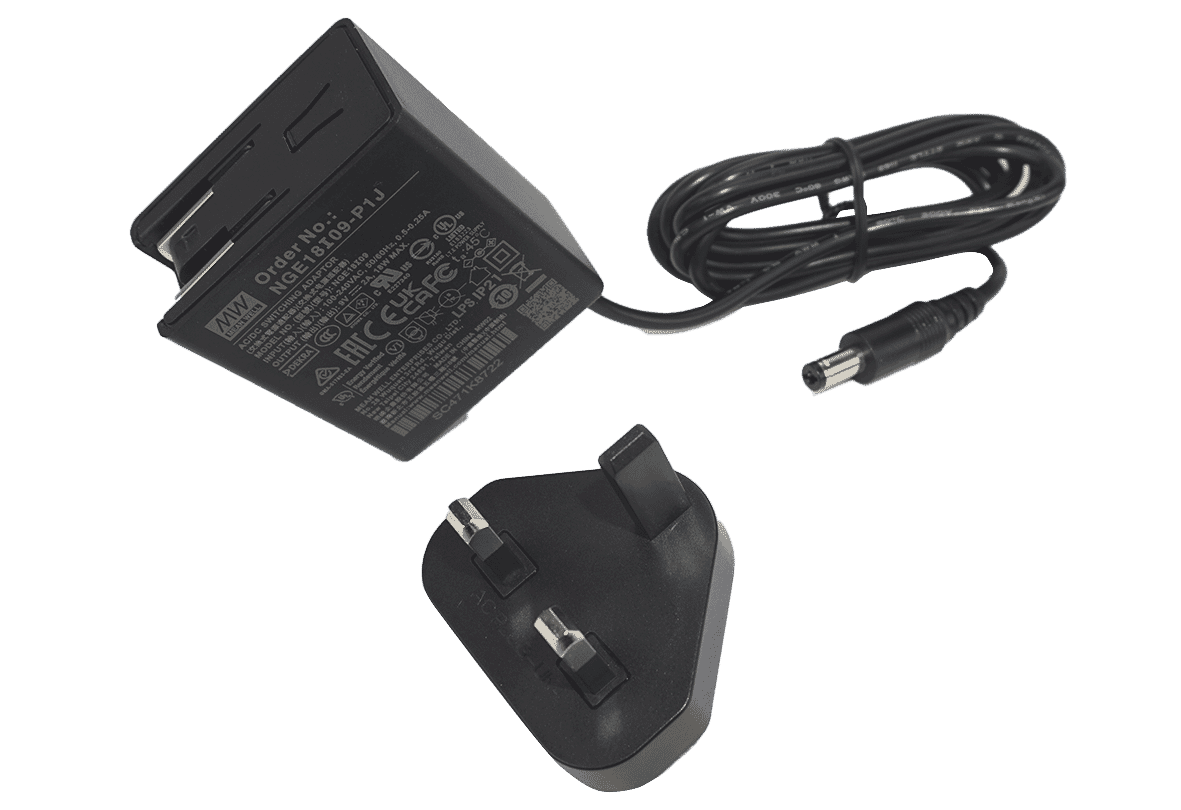

Mean Well NGE18I09-P1J AC-DC Mains Adaptor Output 9V at 2.0A 18W
Mean Well
- Interchangeable AC Plugs
- Supplied with UK 3 Pin Plug
- Universal AC Input
The Mean Well NGE18I09-P1J is an 18W AC-DC plug adaptor that offers 9V DC output at 2.0A and features versatile global interchangeable AC plugs. (Read more)
PRODUCT DETAILS
The Mean Well NGE18I09-P1J is an 18W AC-DC plug adaptor designed for a wide range of applications, including industrial, medical, household, and ITE (Information Technology Equipment) devices. This versatile power supply offers a 9V DC output at 2.0A and features interchangeable AC plugs, making it suitable for global use.
Supplied with UK 3 pin plug.
Features:
- Interchangeable AC plugs
- Supplied with UK 3 pin plug
- Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
- Universal AC input / Full range
- Ultra slim (28mm)
- No load power consumption<0.075W
- Energy efficiency Level VI
- Class II power (no earth pin)
- Protections: Short circuit / Overload / Over voltage
- Extremely leakage current <100uA
- Various DC plug quick adaptor accessory available (sold separately)
- 3 years warranty
| Specification |
|
| Wattage |
18 |
| Input Voltage |
80 ~ 264VAC 113 ~ 370VDC |
| Output Current |
2.0A |
| Output Voltage |
9V |
| Dimensions |
48*28*55mm (L*W*H) |
| Working Temperature |
-30 ~ +70℃ (Refer to "Derating
Curve") |
| Safety Standards |
CB IEC62368-1, IEC60601-1/-1-11,
IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1,
ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2
NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS
EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1;
RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1
approved |
| EMC Standards |
BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T
9254.1-2021 BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936,
GB/T 9254.1-2021 BS EN/EN61000-3-2 BS EN/EN61000-4-2 BS
EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-6 BS
EN/EN61000-4-5 BS EN/EN61000-4-8 BS EN/EN61000-4-11 |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Mean Well NGE18I09-P1J Datasheet |
| Links* |
|---|
| Mean Well website |
