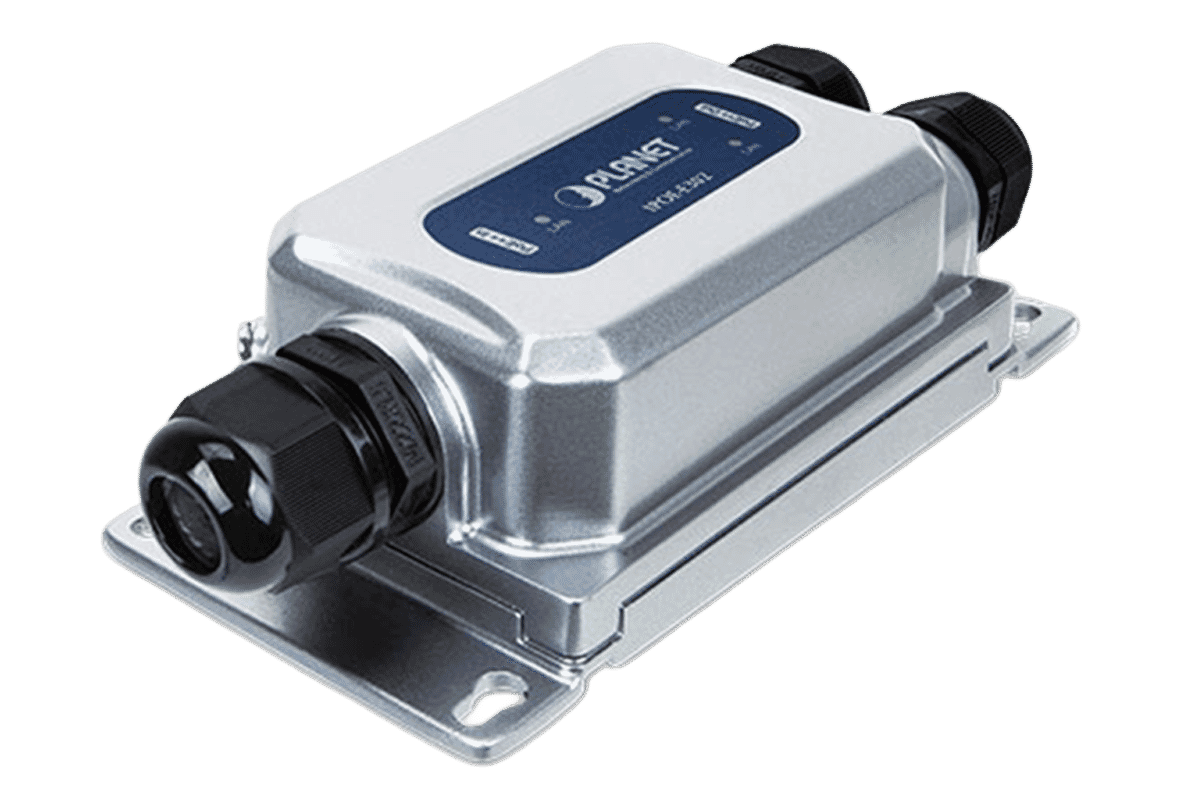

Planet IPOE-E302 External Industrial PoE+ 802.3bt Extender/Splitter
Planet
- Extend or split PoE
- All weather IP67 / IK10
- 3 year guarantee
The Planet IPOE-E302 is a PoE extender and splitter in one. A single PoE source can be extended by another 100 metres or split to power two devices (Read more)
PRODUCT DETAILS
The Planet IPOE-E302 is an industrial grade PoE splitter and extender in one. A single PoE input can be extended up to another 100 metres or split to power two devices without having to install an extra cable or use an extra power supply.
The IPOE-E302 is designed for rapid installation in all environments and is IP67 rated for all weather use and IK10 rated for extreme durability.
Need to add a second PoE powered IP camera or WiFi access point without running an extra cable?
With the Planet IPOE-E302 you can easily add an extra camera or WiFi access point to your system without needing an extra cable. A single PoE power source can be split to power two devices. If you need more power simply add a higher power PoE injector at the source and power up to two 30W PoE devices.
Need to install an IP camera and a wireless access point in the same location with only one cable?
The Planet IPO-E302 can be used to provide power and data to two devices in the same location with only one cable. A single 30W PoE power supply can power two devices up to 10W and a single 60-95W PoE supply can power two 802.3at 30W PoE devices.
Features
- 10/100/1000BASE-T Gigabit
- IP67 Weather proof
- IK10 Vandal resistant
- Extend PoE up to 100m further
- Split one PoE source to power two devices
- 6KV DC Ethernet ESD protection
- Wall-mount design
- Supports 6KV DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- No external power cable required for installation
- Plug and Play installation
| Environment | |
|---|---|
| Standards Conformance | |
| Power over Ethernet | |
| Hardware Specifications | |
| Network Connector | PoE in Port -1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in -Auto MDI/MDI-X, auto-negotiation RJ45 connector PoE out Port -2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/bt PoE++ “Data + DC” out -Auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 6Gbps |
| Switch Throughput | 4.46Mpps @ 64Bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| ESD Protection | Air 8KV DC Contact 6KV DC |
| Surge Protection | 6KV |
| Enclosure | IP67-rated and IK10 aluminum case |
| Installation | Wall-mount ear |
| LED Display | Link/ACT LED x 3 |
| Dimensions (W x D x H) | 150 x 43.8 x 72.94 mm 169.85 x 43.8 x 72.94 mm, with cable gland |
| Weight | 339g 372g (with three waterproof cable glands) |
| Power Consumption | 97 watts/331.6BTU (Full loading with PoE function) |
| PoE Standard | PoE in Port - IEEE 802.3bt PoE++ Type 4 standard PD - PoH (Power over HDBASE-T) - IEEE 802.3at PoE+ end-span/mid-span PD Per PoE out Port IEEE 802.3bt PoE++ Type 3 PSE Backward compatible with IEEE 802.3at PoE+ PSE |
| PoE Power | PoE in Port 50~57V DC, max. 95 watts Per PoE out Port 48~55V DC, max. 60 watts |
| Power Pin Assignment | PoE in Port 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) Per PoE out Port 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
| PoE Power Budget | 65 watts (max.) @ IEEE 802.3bt PoE++ 30 watts (max.) @ IEEE 802.3at PoE+ input IEEE 802.3af PoE input not supported |
| Regulatory Compliance | FCC Part 15 Class A CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
