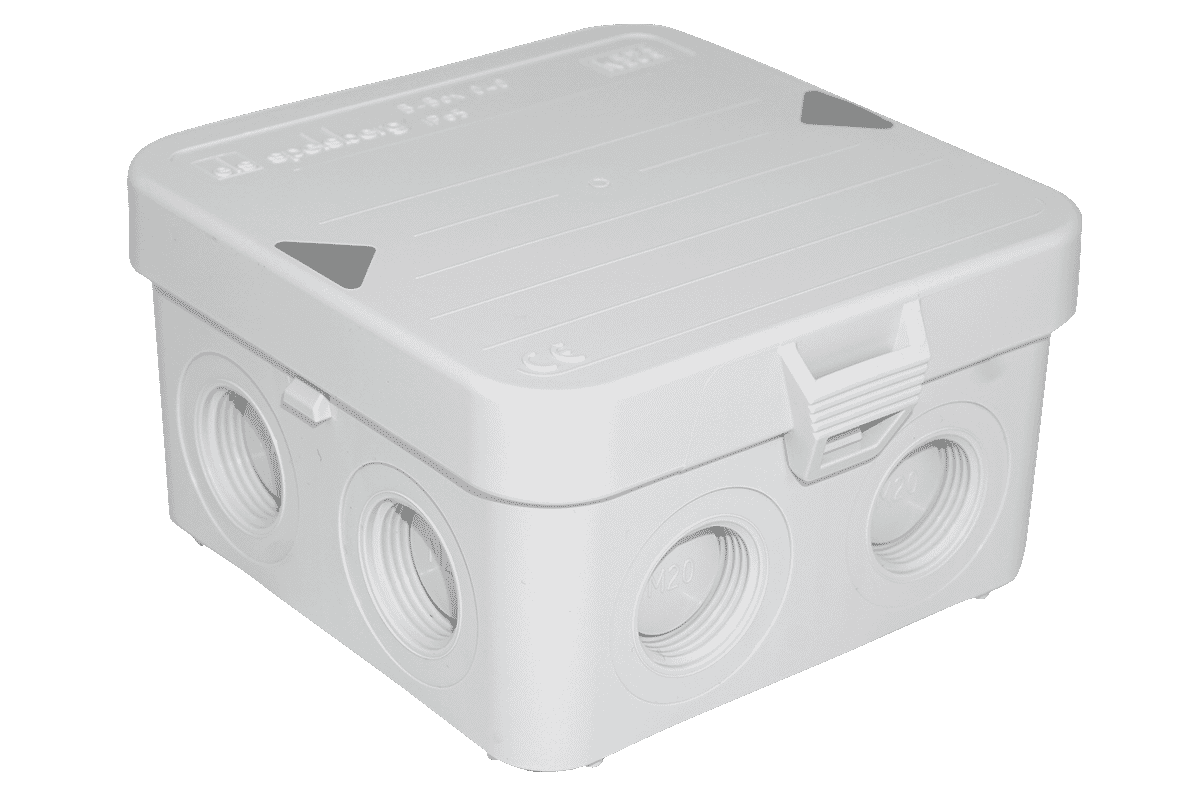

Spelsberg IP65 95 x 95 x 57mm Junction Box (M20 Threaded Entry) - White
Spelsberg
- Tool-Free Assembly
- Space Saving Design
- 8 Cable Entries
The Spelsberg B-Box 040 is a versatile & durable IP65 rated electrical junction box, engineered to provide secure housing for electrical connections (Read more)
PRODUCT DETAILS
The Spelsberg B-Box 040 is a versatile and durable electrical junction box, engineered to provide secure housing for electrical connections in a wide range of domestic, commercial, and light industrial environments.
The B-Box 040 offers a space-efficient solution, ideal for installations where minimal enclosure footprint is required without compromising accessibility or protection, and is manufactured using high-impact resistant polycarbonate material, providing strength and durability in tough environments.
Features:
- Perfect Fixation
- Space saving clamp technique
- 5 pole terminal block can be mounted
- Condensation opening on each side wall
- Included M20 threaded entries
- No lock nut required
- Tool-free assembly
- Thermoplastic material (halogen free)
- Symmetric junction box
- 8 x Cable entries M20
- Clickable cover without screws
- Lots of junction space
- Fixing points within good reach
- Easy Entry for Cable Glands
- Watertight sealing of the cable glands (no rubber ring needed)
- Writeable surface on the cover
| Specifications |
|
| Material |
Polycarbonate (halogen-free,
UV-resistant) |
| Dimensions |
Exterior dimensions 95 x 95 x 57 mm Interior dimensions 75 x 75 x 45 mm |
| Ingress Protection |
IP65 (EN 60529) |
| Temperature Range |
-25°C to +40°C |
| Mounting |
Wall or surface mountable |
| Cable Entries |
Multiple knockouts/membranes for flexible
wiring |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Spelsberg IP65 95 x 95 x 57mm Junction Box Datasheet |
| Links* |
|---|
| Spelsberg website |
| Spelsberg support site |
