Milwaukee M18BLHX-501X SDS+ 26MM Hammer Drill GB2
Milwaukee
- Brushless Motor
- FIXTEC Keyless Chuck
- Supplied with 2 Batteries
The Milwaukee M18BLHX-501X SDS+ rotary hammer drill features an ergonomic design, keyless chuck, 4-mode operation, & is supplied with dual batteries. (Read more)
PRODUCT DETAILS
The Milwaukee M18BLHX-501X SDS+ rotary hammer drill is compact and ergonomically designed to reduce fatigue and increase comfort during all day use. It features a powerful hammer mechanism and a brushless motor that delivers 2.3 J of impact energy. The 4 mode operation allows for rotary hammer, hammer only, rotation only and selectable work position of the chisel (variolock) for maximum versatility.

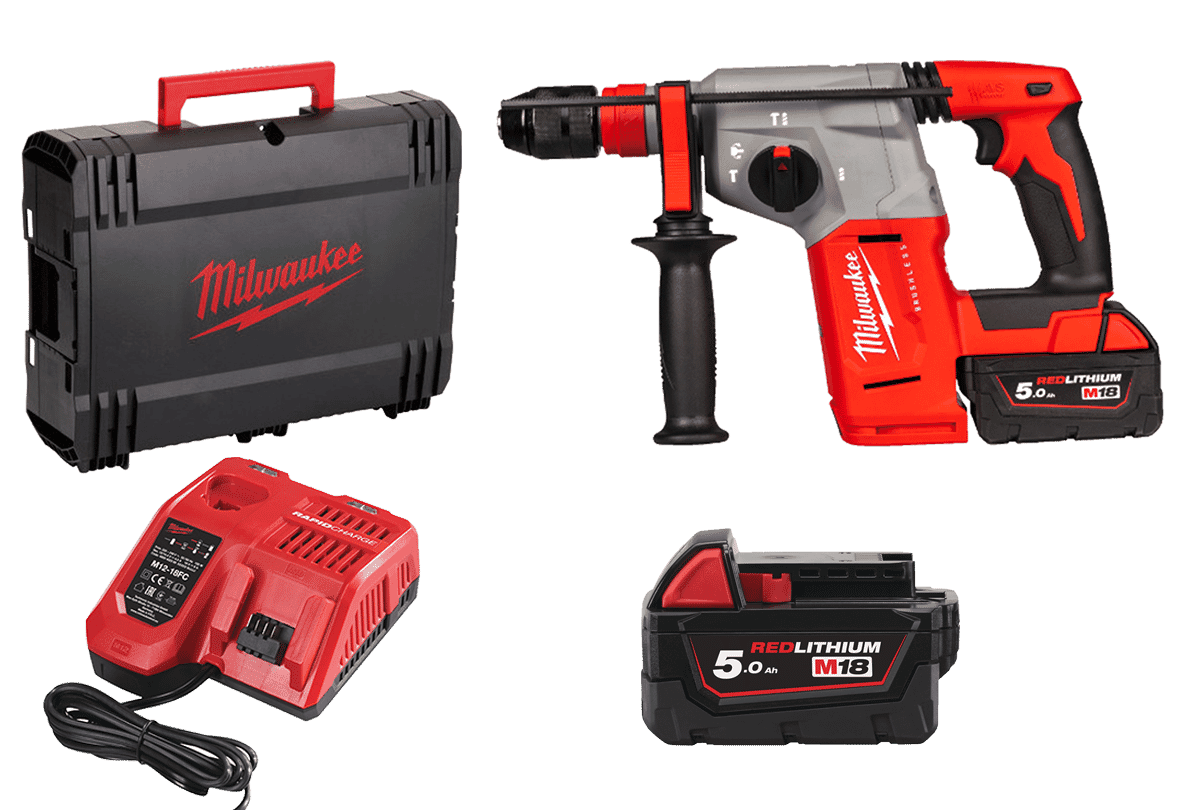

Supplied with 2 batteries, a battery charger and a solid kit case.
Features:
- Powerful hammer mechanism and the brushless motor design delivers 2.3 J of impact energy
- Compact, ergonomic design for increased end user comfort
- FIXTEC™ system for keyless chuck changing between SDS-Plus and 13 mm metal chuck
- All metal gear case - optimum seating of the gears for enhanced tool life
- 4-mode operation: rotary hammer, hammer only, rotation only and selectable work position of the chisel (variolock) for maximum versatility
- Anti-vibration side handle for lower vibration exposure
- Compatible with M18 CDEX dust extractor
- Brushless motor, REDLITHIUM™ battery pack and REDLINK™ electronic deliver power, run time and durability
- Flexible battery system: works with all MILWAUKEE® M18™ batteries
| Specifications |
|
| Blow energy (J) |
2.3 |
| Blow energy [EPTA][J] |
2.3 |
| Kit included |
1 x M18 B5 Battery pack, M12-18 FC Charger,
HD Box |
| Max. drilling concrete (mm) |
26 |
| Max. drilling steel (mm) |
13 |
| Max. drilling wood (mm) |
26 |
| Max. percussion rate (bpm) |
0 - 4900 |
| No load speed (rpm) |
0 - 1400 |
| Optimised drilling capacity in concrete
[mm] |
6 - 18 |
| Standard equipment |
Side handle, depth gauge, grease, FIXTEC™ 13 mm full metal
chuck |
| Supplied in |
HD Box |
| Tool reception |
SDS-Plus + Reduced shank 13 mm |
| Power Source | |
| Battery pack capacity (Ah) |
5.0 |
| Battery type |
Li-ion |
| Charger included |
M12-18 FC |
| Charger supplied |
59 min |
| No. of batteries supplied |
1 |
| Voltage (V) |
18 |
| Weight |
|
| Weight (kg) |
2.8 |
| Weight with battery pack (EPTA) (kg) |
3.5 (M18 B5) |
| Noise | |
| Sound power level (Lwa)(dB(A)) |
101.7 |
| Sound power level uncertainty (dB(A)) |
3 |
| Sound pressure level (Lpa)(dB(A)) |
90.7 |
| Sound pressure level uncertainty (dB(A)) |
3 |
| Vibration |
|
| Vibration chiselling (m/s²) |
9.5 |
| Vibration chiselling uncertainty (m/s²) |
1.5 |
| Vibration drilling (m/s²) |
8.9 |
| Vibration drilling uncertainty [m|s²] |
1.5 |
| Videos |
|---|
MILWAUKEE® M18 FUEL™ ONE-KEY™ 26mm SDS Hammer Drill| Files |
|---|
| Milwaukee M18BLHX-501X Datasheet |
