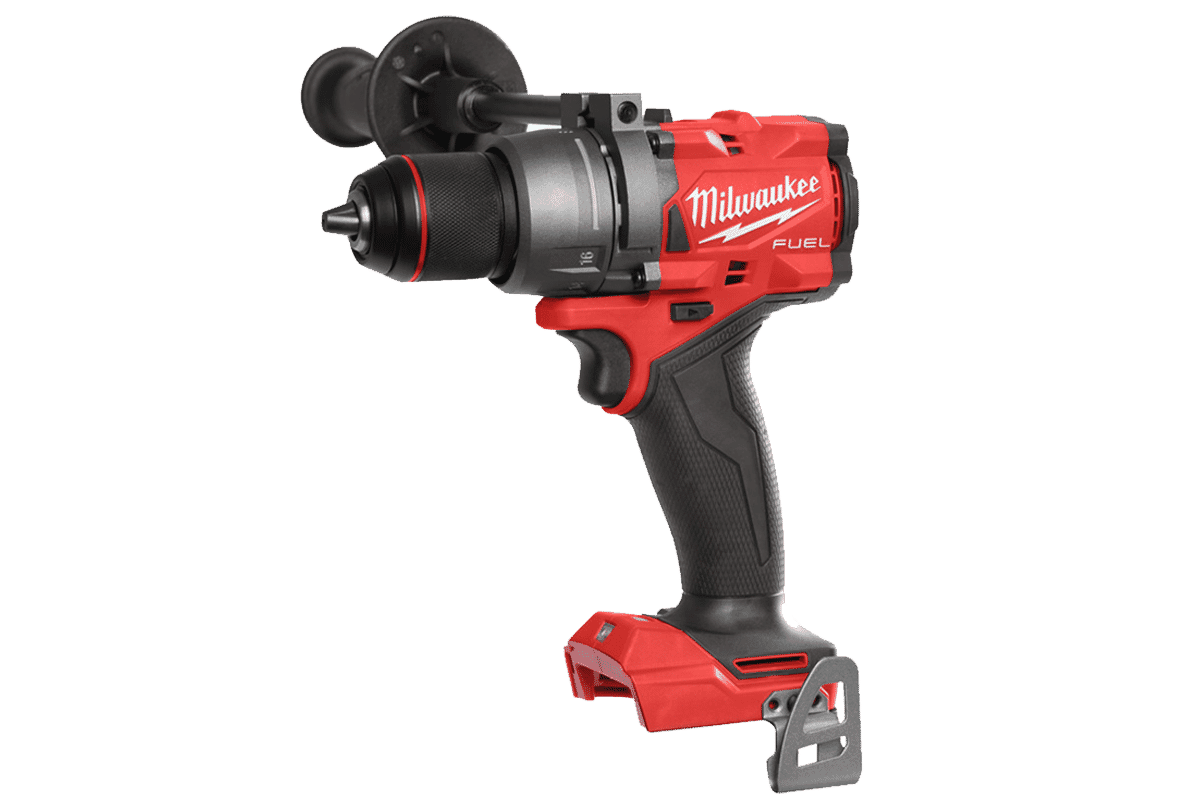

Milwaukee M18FPD3-0 Percussion Drill GEN 4
Milwaukee
- High power efficiency
- Compact Design
- LED Light
The Milwaukee M18FPD3-0 M18 high power percussion drill has a compact design (175 mm in length). Supplied with 2 batteries, a charger and a case. (Read more)
PRODUCT DETAILS
The Milwaukee M18FPD3-0 Percussion drill has a compact design (180 mm in length) which provides excellent balance and control, making it ideal for overhead applications or work in tight spaces. The AUTOSTOP™ control mode offers enhanced safety for the operator by preventing over-rotation in a bind-up, and individual battery cell monitoring optimises tool run time and ensures long term pack durability.
Supplied with 2 batteries, a battery charger and a solid kit case.
Features:
- Higher power efficiency under load with outstanding torque of 158 Nm
- Extremely compact design of 175 mm length for access into tight spaces
- AUTOSTOP™ control mode offers enhanced safety for the operator by preventing over-rotation in a bind-up
- 13 mm metal chuck for quick bit changes and bit retention
- Fastest drilling and driving applications under load
- Brighter LED workspace illumination
- Fuel gauge displays remaining charge
- All metal reversible belt clip to hang your tool quickly and easily
- Individual battery cell monitoring optimises tool run time and ensures long term pack durability
- The DNA of our FUEL™ platform redefines the balance of cordless technologies. MILWAUKEE®'s POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence delivering outstanding power, run time and durability
- Flexible battery system: works with all MILWAUKEE® M18™ batteries
| Specifications |
|
| Chuck capacity (mm) |
13 |
| Kit included |
2 x M18 B5 Battery packs, M12-18 FC
Charger, HD Box |
| Max. drilling masonry (mm) |
16 |
| Max. drilling steel (mm) |
13 |
| Max. drilling wood (mm) |
89 |
| Max. percussion rate (bpm) |
0 -33,000 |
| Max. torque (Nm) |
158 |
| No load speed gear 1 (rpm) |
0 - 500 |
| No load speed gear 2 (rpm) |
0 - 2100 |
| Standard equipment |
Belt clip, side handle |
| Supplied in |
HD Box |
| Power Source | |
| Battery pack capacity (Ah) |
5.0 |
| Battery type |
Li-ion |
| Charger included |
M12-18 FC |
| Charger supplied |
59 min |
| No. of batteries supplied |
2 |
| Voltage (V) |
18 |
| Weight |
|
| Weight with battery pack (EPTA)
(kg) |
2.2 (M18 B5) |
| Noise | |
| Sound power level
(Lwa)(dB(A)) |
106.78 |
| Sound power level uncertainty
(dB(A)) |
3 |
| Sound pressure level
(Lpa)(dB(A)) |
95.78 |
| Sound pressure level uncertainty
(dB(A)) |
3 |
| Vibration |
|
| Vibration drilling into Metal
(m/s²) |
1.85 |
| Vibration drilling into metal
uncertainty (m/s²) |
1.5 |
| Vibration percussion drilling into
concrete [m|s²] |
11.3 |
| Vibration percussion drilling into
concrete uncertainty [m|s²] |
1.5 |
| Vibration screw driving
(m/s²) |
1.49 |
| Vibration screw driving uncertainty
[m|s²] |
1.5 |
| What's Included | |
| Contents | M18™ brushless percussion drill 2 x M18™ 5.0 Ah battery M12™ - M18™ fast charger Kit box |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Milwaukee M18FPD3-0 Datasheet |
| Milwaukee M18FPD3-0 User Manual |
