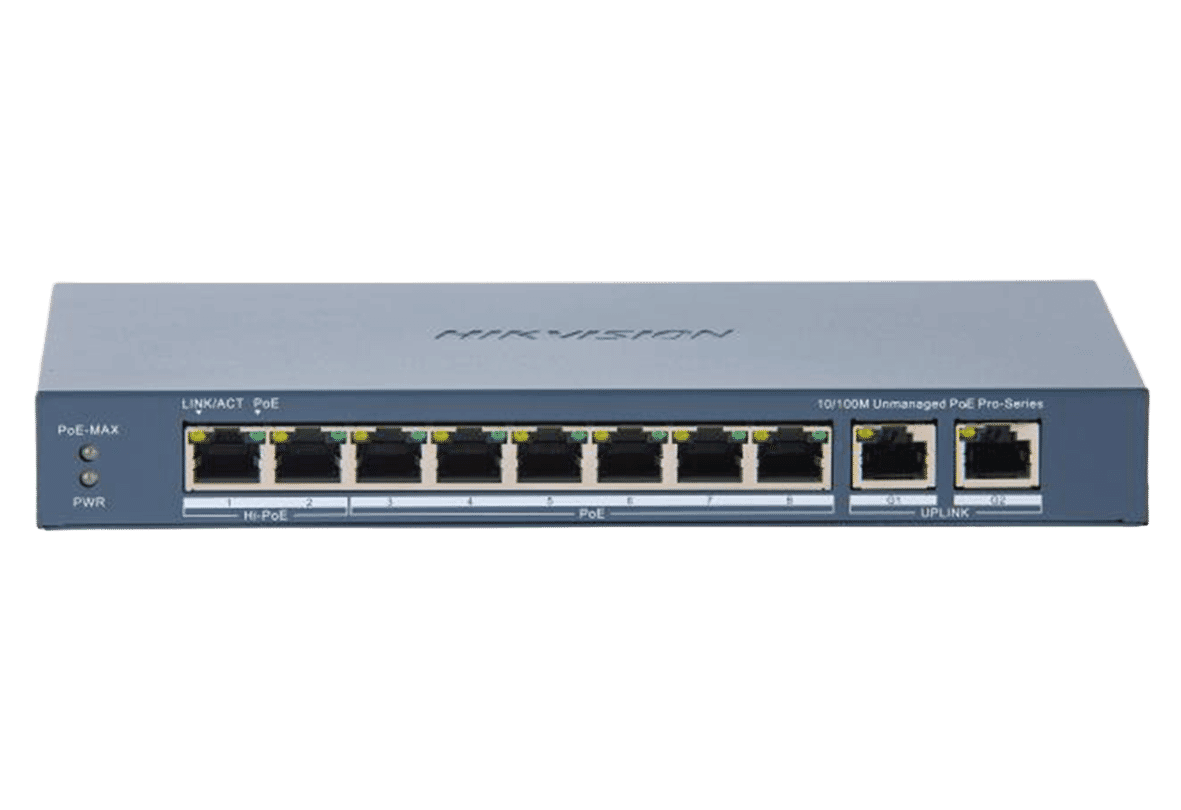

Hikvision DS-3E0310HP-E(C) 10 Port POE Unmanaged Switch with Dual Up-link
Hikvision
- 8 × PoE ports
- 2 × Gigabit Ports
- 3 year guarantee
The Hikvision DS-3E0310HP-E(C) is a smart, compact 10-port PoE switch designed for CCTV and IP installations that demand both power delivery and ease (Read more)
PRODUCT DETAILS
The Hikvision DS-3E0310HP-E(C) is a smart, compact 10-port PoE switch designed for CCTV and IP installations that demand both power delivery and ease of integration. Featuring eight PoE ports and two dedicated uplink ports, it’s an excellent choice for small-to-medium video systems where reliability and simplicity are key.
Features:
- 8 × 10/100 Mbps PoE port, 2 × Gigabit RJ45 port
- IEEE 802.3bt standard Hi-PoE, max. 90 W for one port.
- Up to 300 m long range PoE transmission.
- Port isolation to improve network security.
- 6 KV surge protection to improve reliability in harsh environment.
- PoE watchdog to auto-detect and restart cameras that do not respond.
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.56 kg (1.23 lb) |
| Gross Weight | 1.27 kg (2.79 lb) |
| Dimensions (W × H × D) | 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54 VDC,2.22 A |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | < 10 W |
| Installation Mode | Desk-Mounted |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| MAC Address Table | 4 K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| Internal Cache | 2Mbits |
| PoE Power Supply | |
| PoE Standard | Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 3 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Ports 3 to 8: End-span: 1/2(-), 3/6(+) |
| PoE Port | Hi-PoE: Ports 1 to 2 PoE: Ports 3 to 8 |
| Max. Port Power | Ports 1 and 2 : 90 W Ports 3 to 8: 30 W |
| PoE Power Budget | 110 W |
| Dialing Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-3E0310HP-E(C) Datasheet |
| Hikvision DS-3E0310HP-E(C) Quick Start Guide |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
