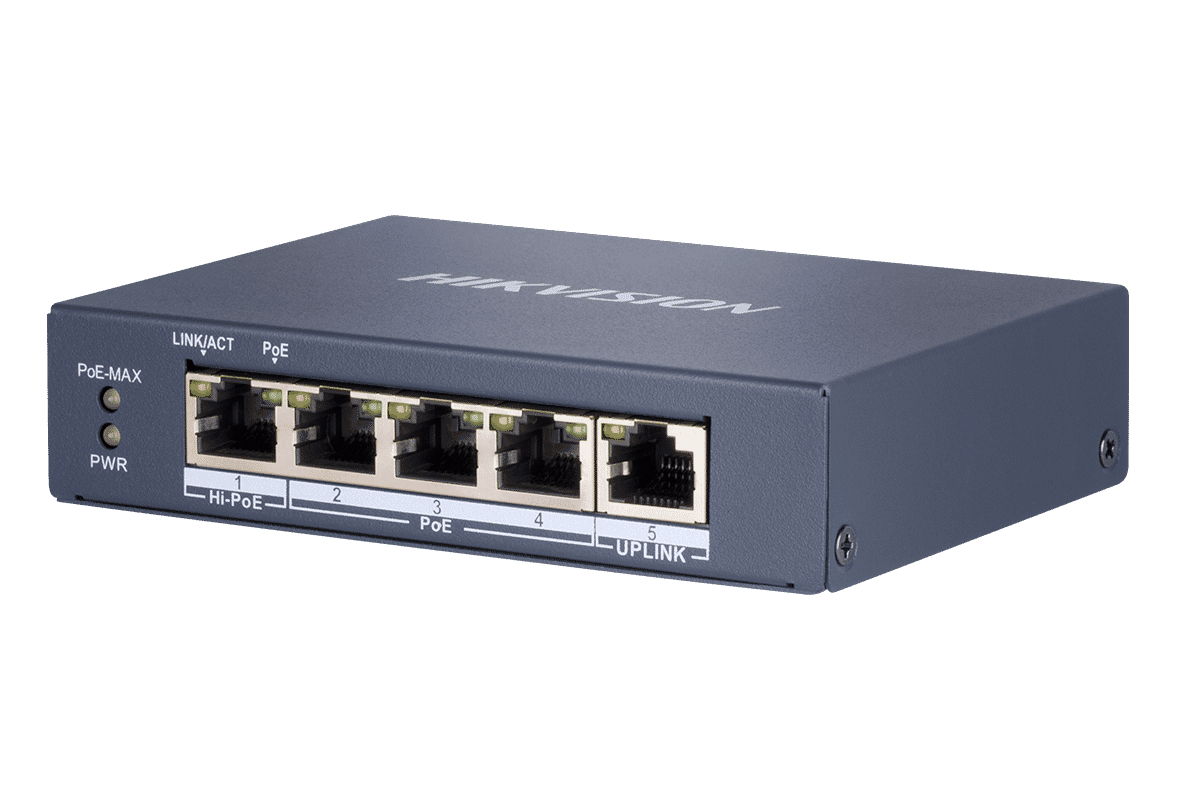

Hikvision DS-3E0505HP-E 5-Port Unmanaged Gigabit PoE Ethernet Switch
Hikvision
- 3 × Gigabit PoE Ports
- 1 × Gigabit Hi-PoE Port
- 3 year guarantee
The Hikvision DS-3E0505HP-E is a 4-port Gigabit Ethernet PoE switch with an additional uplink port, designed to power and connect IP cameras & devices (Read more)
PRODUCT DETAILS
The Hikvision DS-3E0505HP-E is a 4-port Gigabit Ethernet PoE switch with an additional uplink port, designed to power and connect IP cameras and network devices efficiently. Compact, reliable, and easy to install, it provides both data and power transmission over a single Ethernet cable—making it ideal for small to medium-sized CCTV and network installations.
This unmanaged PoE switch automatically detects connected devices and delivers up to 30 W per port (60 W total PoE budget), ensuring compatibility with a wide range of Hikvision IP cameras and other IEEE 802.3af/at-compliant equipment.
Features:
- 3 × gigabit PoE port, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.27 kg (0.59 lb) |
| Dimensions (W × H × D) | 121.0 mm × 88.1 mm × 27.6 mm (4.76'' × 3.47'' × 1.09'') |
| Gross Weight | 0.43 kg (0.95 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 VDC, 1.35 A |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Installation Mode | Desk-Mounted |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 4 × Gigabit PoE port,1 × Gigabit RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Hi-PoE: Port 1 PoE: Ports 2 to 4 |
| Max. Port Power | Port 1: 60 W Ports 2 to 4: 30 W |
| PoE Power Budget | 60 W |
| Dialling Function | |
| Long Range | Ports 3 to 4: up to 300 m Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
