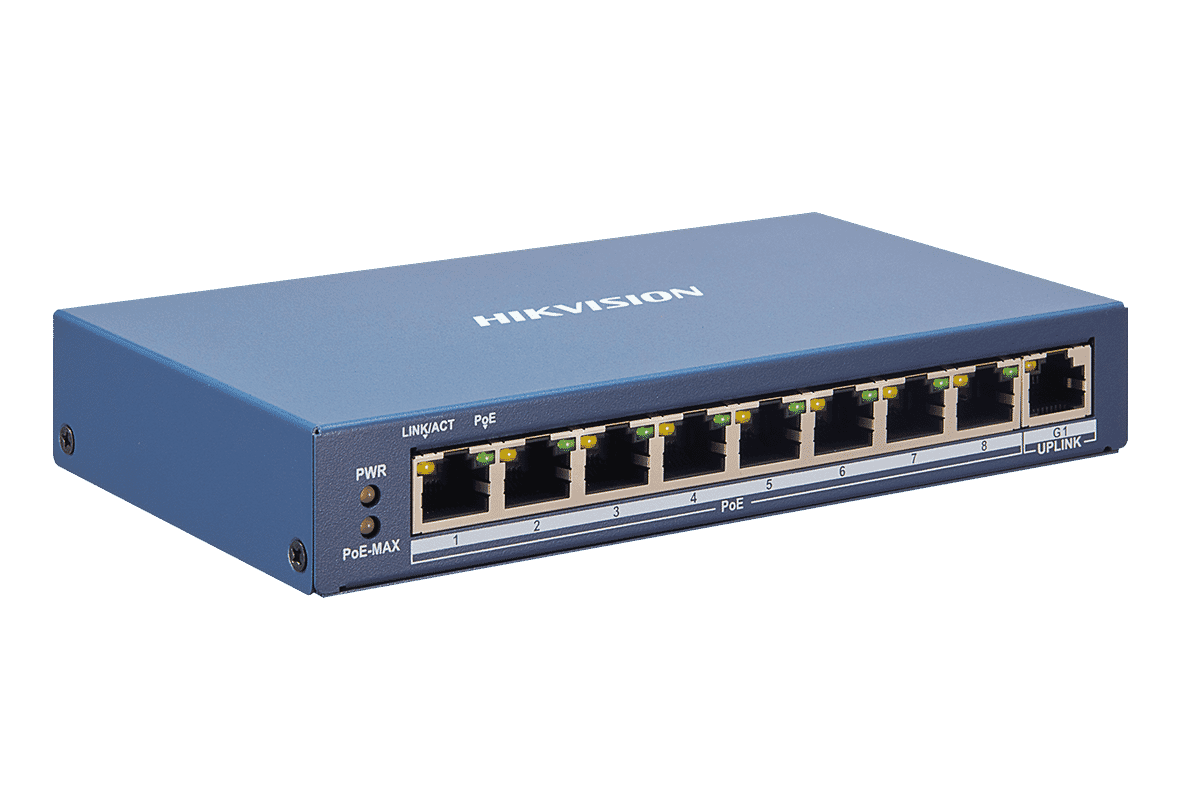

Hikvision DS-3E1309P-EI(B) 8 Port Smart Managed POE Switch
Hikvision
- 8 x 100 Mbps ports
- Gigabit up-link port
- 3 year guarantee
The Hikvision DS-3E1309P-EI(B) is an 8 port smart managed PoE switch with a total PoE Power Budget 110W and up to 300m long range PoE transmission. (Read more)
PRODUCT DETAILS
The Hikvision DS-3E1309P-EI(B) is a 9-port smart managed desktop PoE (Power over Ethernet) switch provides power and data over a single Ethernet cable via 8 100 Mbps PoE RJ45 ports and 1 gigabit network RJ45 port, making it perfect for small-scale IP surveillance networks. It can automatically detect and supply power to any compatible PoE camera allowing you to expand your network without separate power cables, making installation quicker, easier and more cost effective.

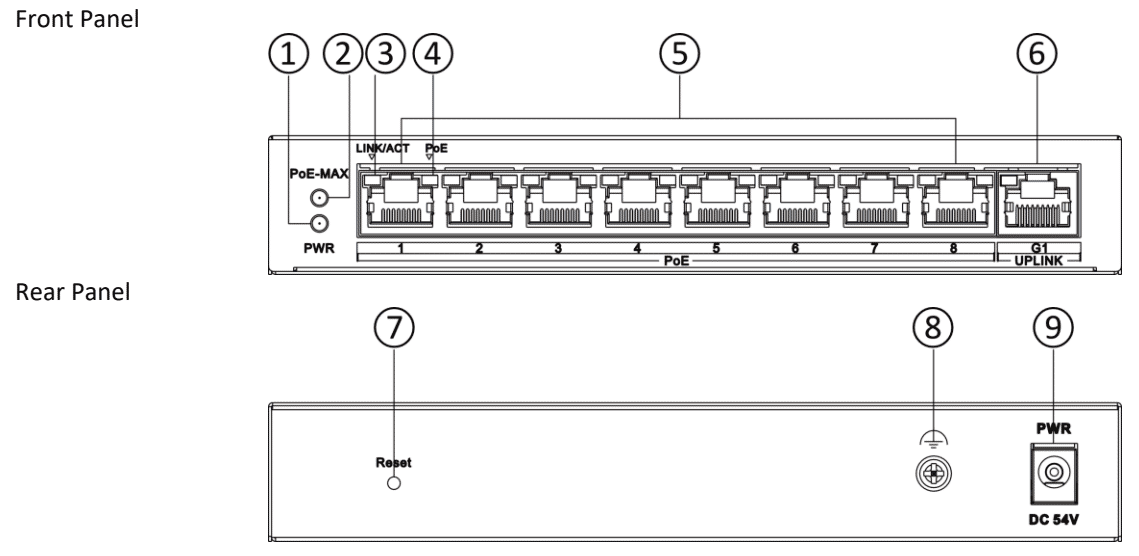

Interfaces
| No | Indicator/Port |
Description |
|---|---|---|
| 1 | PWR Indicator |
Solid on: The switch is powered on
normally Unlit: No power supply is connected or power supply is abnormal |
| 2 | PoE-MAX Indicator |
Solid on/Flashing: The output power of
the switch is about to reach or has reached the upper limit. The
power supply may be abnormal if more devices are connected Unlit: The switch does not supply power to a powered device (PD), or supplies power to a PD normally and its output power does not reach the upper limit. Note: The PoE-MAX indicator will be unlit in 5 seconds after the output power of the switch returns to normal |
| 3 | LINK/ACT Indicator |
Solid on: The port is connected Flashing: The port is transmitting data Unlit: The port is disconnected or connection is abnormal |
| 4 | PoE Indicator |
Solid on: The switch supplies power to
a PD normally Unlit: The switch is disconnected from a PD or power supply is abnormal |
| 5 | 10/100 Mbps PoE RJ45 Port |
Used for connection to a PD via a
network cable |
| 6 | Gigabit RJ45 Port |
Used for connection to another device
via a network cable |
| 7 | Reset Button |
Press and hold the reset button for
about 5 seconds to restore all the configurations of the switch to
default settings |
| 8 | Grounding Terminal |
Used for connection to the grounding
cable to protect the switch from lightning |
| 9 | Power Supply |
Use the attached power adapter and
power cord to connect the switch to a socket |
Range Extender
The DS-3E1309P-EI(B) features maximum a 300-metre, ultra-long-distance transmission. This means you can simplify your network and maximise your hardware investment with fewer switches to deploy, and at the same time extend your network coverage. In the event of network congestion, important data is transmitted with priority thanks to VIP-port-guarantee technology.
Features:
- 8 × 10/100M PoE ports,1 × Gigabit RJ45 port
- Total PoE Power Budget 110 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 1.114 kg (2.45 lb) |
| Dimensions (W × H × D) | 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54VDC，2.22A |
| Installation Mode | Desk-Mounted Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 10 W |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port |
| MAC Address Table | 8 K |
| Packet Forwarding Rate | Whole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpps |
| Internal Cache | 4 Mbits |
| Switching Capacity | Whole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
| Software Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network
security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Loop Prevention | Loop prevention is used to prevent the switching network from
forming loops, which will seriously affect network communication.
Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health
improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via
Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-3E1309P-EI(B) Datasheet |
| Hikvision DS-3E1309P-EI(B) Quick Start Guide |
| Hikvision DS-3E1309P-EI(B) User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
