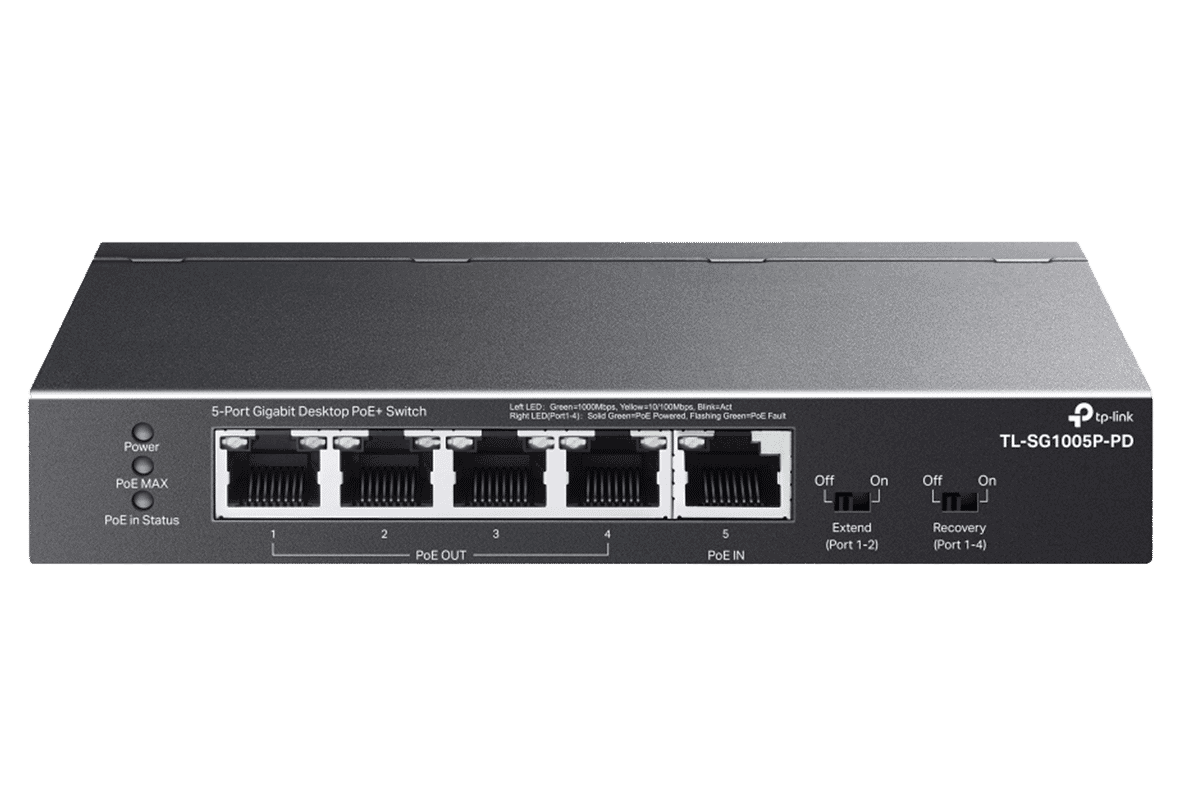

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch
TP-Link
- PoE Powered
- 4 x Gigabit PoE+ ports
- Extend PoE up to 250m
The TP-Link TL-SG1005P-PD is a 5 port PoE ethernet switch with 4 x Gigabit PoE+ ports, and 1 PoE++ in port that enables the switch to be PoE powered. (Read more)
PRODUCT DETAILS
The TP-Link TL-SG1005P-PD is a 5 port PoE ethernet switch that features 4 x Gigabit PoE+ ports, and 1 PoE++ in port that enables the switch to be powered by PoE. This eliminates the need for a power adaptor, making it ideal for CCTV installation where there is no power supply available.
The TL-SG1005P-PD supports up to 66W/47W/21W/9W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.* The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
The TL-SG1005P-PD can extend the data transmission distance up to 250 meters and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as parks, factories, schools, etc.

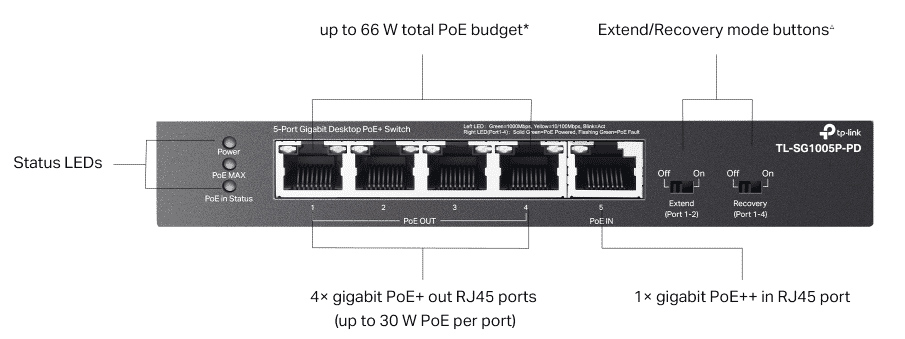

Interface
Features:
- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
| Hardware | |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE
802.1p |
| Interface |
• 5× 10/100/1000Mbps RJ45 Ports • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable
(maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Power Supply |
Only Powered by PoE Device |
| PoE Ports (RJ45) |
• PoE In Port: Port 5, Compliance with
802.3af/at/bt Type3/bt Type4 • PoE Out Ports: Ports 1-4, compliance with 802.3af/at • PoE Power Budget: -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W) |
| Dimensions ( W x D x H ) |
6.2 × 4.0 × 1.0 in (158 × 101 × 25
mm) |
| Max. Power Consumption |
• 2.68 W (90W PoE In, with no PD
connected) • 68.59 W (90W PoE In, with 66 W PD connected) |
| Max Heat Dissipation |
• 9.112 BTU/h (90W PoE In, with no PD
connected) • 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
| Performance | |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2k |
| Software | |
| Advanced Features |
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply
and data transmission) • PoE Auto Recovery (Ports 1-4) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transmission Method |
Store-And-Forward |
| Other | |
| Certification |
CE, FCC, RoHS |
| Package Content |
• TL-SG1005P-PD • Installation Guide |
| Environment |
• Operating Temperature: -30–70 ℃ (-22–158 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Videos |
|---|
| No videos available |
| Files |
|---|
| TP-Link TL-SG1005P-PD Datasheet |
| TP-Link TL-SG1005P-PD Installation Guide |
| Links* |
|---|
| TP-Link website |
| TP-Link support site |
