Planet FGSD-1022VHP 8 Port RJ45 PoE 2 Port SFP LCD Switch
fullscreen

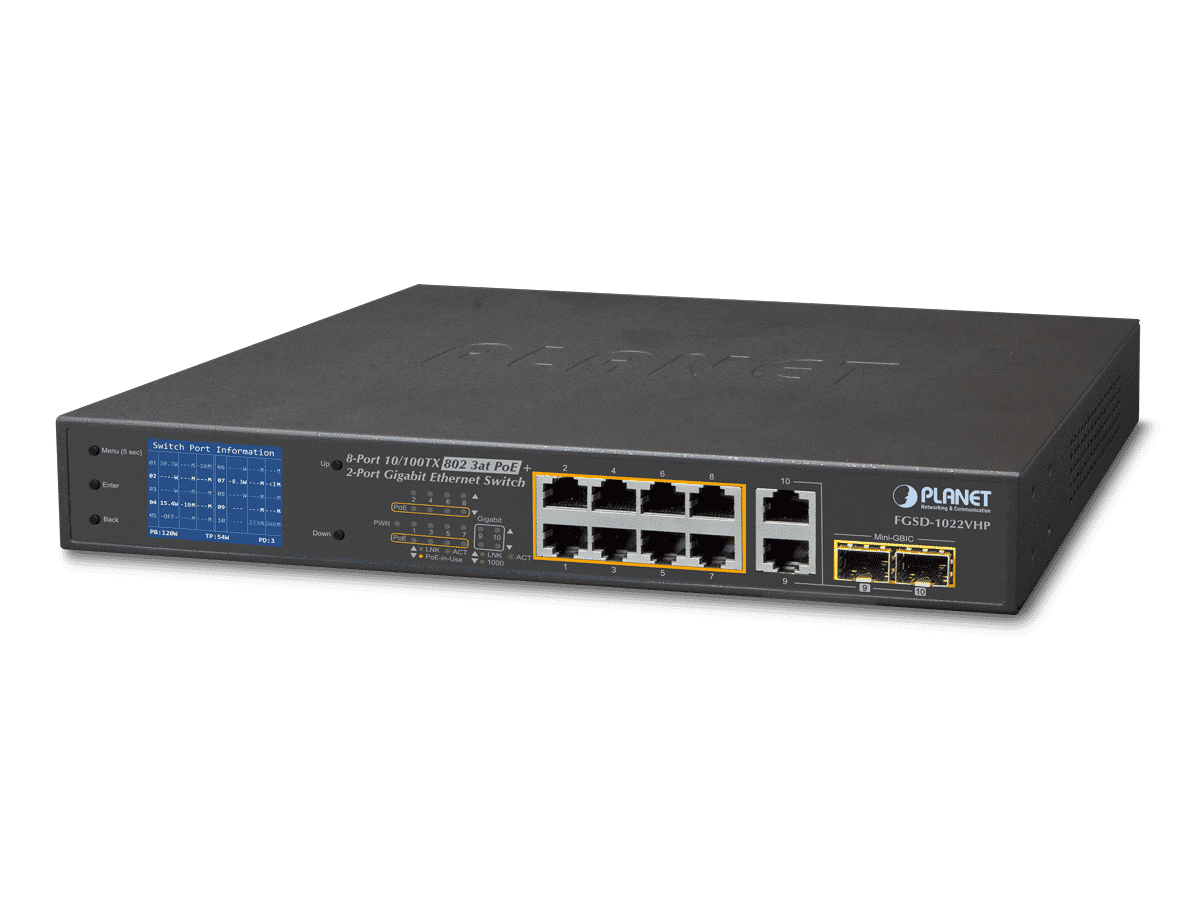

  • Planet FGSD-1022VHP 8 Port RJ45 PoE 2 Port SFP LCD Switch

Planet FGSD-1022VHP 8 Port RJ45 PoE 2 Port SFP LCD Switch

Planet Planet

  • 8 PoE+ RJ45 Ports
  • 2 x Gigabit uplink
  • Management LCD screen
Full description
FREE delivery is available for this product    36 Months warranty    25 reward points
£127.82
£106.52 Ex VAT
Availability In stock
Delivery From FREE* Inc VAT
Product Code13408
Model NumberFGSD-1022VHP
DELIVERY
Next day delivery available.
Order before 15:00 for delivery from
Monday 21st October
Qty Ex VAT Inc VAT
1+£106.52£127.82

Planet FGSD-1022VHP 8 Port PoE Network Switch

The Planet FGSD-1022VHP is  an 8 port network switch that is perfect for CCTV system deployment. It's compact robust design and simple to use powerful features makes it a highly versatile and reliable switch.


PoE Device Ports and Gigabit Uplinks

The Planet FGSD-1022VHP features 8 x 10/100 RJ45 ports that support up to 30 watt PoE+ (802.3at) up to an overall combined maximum of 120 watts. The switch uses auto sensing technology to automatically deliver PoE to compatible device.

Separate from the RJ45 device ports the FGSD-1022VHP has 2 combo Gigabit uplink ports that be connected with either RJ45 or optional SFP modules for fibre.




Simplified Deployment and Management with LCD Screen

The Planet FGSD-1022VHP features a unique LCD screen for viewing the port status and simple switch management. This allows the user to select the mode of the switch and view data rates and PoE power consumption in real-time.



Key Features

Physical Port

  • 8-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2 10/100/1000BASE-T TP interfaces and 2 1000BASE-X mini-GBIC SFP shared combo interfaces


Power over Ethernet

  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 32 watts for each PoE port
  • Each port supports 52V DC power to PoE powered device
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode and 250m in extend mode


Smart LCD

  • The LCD switch features “Standard”, “VLAN” and  “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
  • The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Power low-voltage, power over-voltage and PSE over-temperature protection
  • Screen saver, fan control, factory default and save configuration
  • PoE management
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • PD alive check


Switching

  • Hardware-based  10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • 9216bytes packet size
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging


Hardware

  • 12-inch desktop size, 1U height, rack mountable
  • 2-inch color LCD with smart management functions
  • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
  • 1 silent fan to provide stable and efficient power performance
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
  • Supports ±4KV surge immunity


Hardware Specifications
802.3af/802.3at PoE Injector Port 8
10/100BASE-TX MDI/MDIX Ports 8
10/100/1000BASE-T MDI/MDIX Ports 2 (Combo)
1000BASE-X SFP/mini-GBIC Slots 2 (Combo)
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps/non-blocking
Switch Throughput@64 bytes 4.17Mpps@64 bytes
MAC Address Table 8K entries
Maximum Frame Size 9216 bytes
Flow Control IEEE 802.3x pause frame for full duplex; back pressure for half duplex
LED System:
Power (Green)

10/100BASE-TX RJ45 Interfaces:
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)

1000BASE-X SFP Interfaces:
LNK/ACT (Green)

1000BASE-T TP Interfaces:
LNK/ACT (Green)
1000Mbps (Green)
LCD Monitor (W x D) 40.6mm x 30.5mm, 2-inch
Buttons Menu, Enter, Back, Up and Down
Dimensions (W x D x H) 180 x 280 x 44mm (1U height)
Enclosure Metal
Weight 1.8kg
Power Requirements 100~240V AC, 50/60Hz, 2.5A max.
Power Consumption/Dissipation Max. 130watts/446 BTU
Thermal Fan 1
ESD Protection Contact discharge of ±4KV DC
Air discharge of ±6KV DC
Surge Protection ±4KV
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 120 watts
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 4
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Operating Temperature: -10 ~ 60 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
* Temperature: <40 degrees C; Humidity: <90%
Temperature: >40 degrees C; Humidity: <50%
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)

Product variants available

Files
  Planet FGSD-1022VHP datasheet
External links*
Planet website
Planet support site
