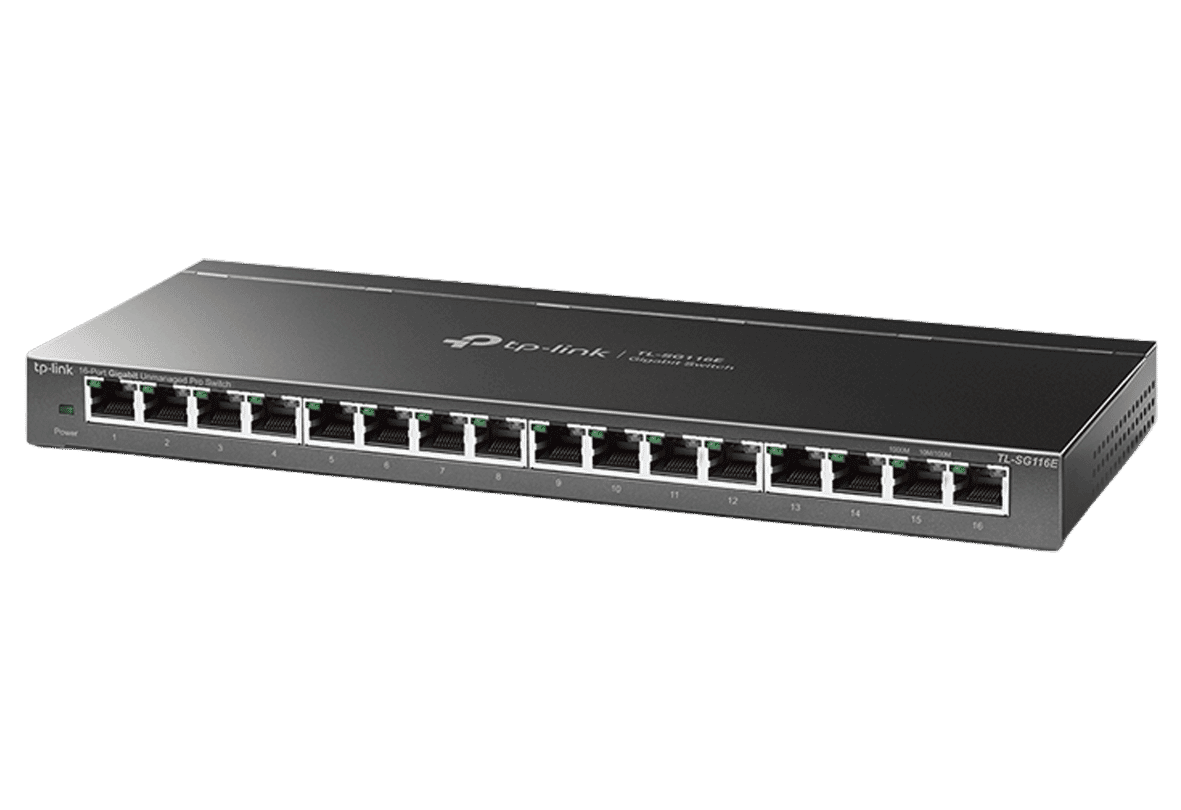

TP-LINK TL-SG116E 16-Port Gigabit Unmanaged Pro Switch, Steel Case
- 16 Gigabit RJ45 Ports
- Web-Based Interface
- Low Power Consumption
The TP-Link TL-SG116E is a 16-Port Gigabit Unmanaged Pro Switch with 16 10/100/1000Mbps RJ45 ports and intelligent web user interface management. (Read more)
PRODUCT DETAILS
The TP-Link TL-SG116E is a 16-Port Gigabit Unmanaged Pro Switch, designed to provide fast, reliable, and efficient connectivity for small and medium-sized businesses, offices, CCTV systems, and home networks. Featuring 16 Gigabit RJ45 ports, it delivers high-speed wired connections for computers, servers, network video recorders, IP cameras, printers, and other Ethernet-enabled devices, making it ideal for expanding existing networks with minimal effort.
Offering simple plug-and-play deployment, the TL-SG116E requires no complex configuration to get started, while its Easy Smart functionality provides access to advanced network management features through an intuitive web interface or downloadable utility. Administrators can configure VLANs, Quality of Service (QoS), IGMP Snooping, Port Mirroring, Link Aggregation, Loop Prevention, and cable diagnostics to optimise network performance and improve traffic management.
Built with a durable metal enclosure, the switch is designed for long-term reliability and efficient heat dissipation. Its fanless design ensures completely silent operation, making it suitable for deployment in offices, meeting rooms, classrooms, and other noise-sensitive environments. Energy-efficient technology automatically adjusts power consumption based on link status and cable length, helping to reduce operating costs without compromising performance.
With a 32Gbps switching capacity, store-and-forward architecture, support for jumbo frames, and an 8K MAC address table, the TL-SG116E delivers smooth, high-speed data transfer for bandwidth-intensive applications including IP surveillance, VoIP, file sharing, and multimedia streaming.
Features:
- 16 × 10/100/1000Mbps Gigabit RJ45 ports
- Plug-and-play installation with Easy Smart management
- Web-based interface and downloadable management utility
- Supports VLAN, QoS, IGMP Snooping, Link Aggregation, and Port Mirroring
- Cable diagnostics and Loop Prevention features
- 32Gbps switching capacity for high-performance networking
- Durable metal housing with fanless silent operation
- Energy-efficient technology reduces power consumption
- Ideal for offices, CCTV systems, schools, retail, and business networks
- Supports Auto MDI/MDIX and Auto Negotiation for simple deployment
| Hardware | |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface |
16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable
(maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Power Supply |
External Power Adapter(Output:
9VDC/0.6A) |
| Dimensions ( W x D x H ) |
11.3*4.4*1.0 in. (286*111.7*25.4
mm) |
| Max. Power Consumption |
9.19W(220V/50Hz) |
| Max. Heat Dissipation |
31.36BTU/h |
| Performance | |
| Switching Capacity |
32Gbps |
| Packet Forwarding Rate |
23.81Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1Mb |
| Jumbo Frame |
9KB |
| Software | |
| Quality of Service |
Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features |
IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN
IDs) MTU/Port/Tag VLAN |
| Transmission Method |
Store-And-Forward |
| Others | |
| Certification |
FCC, CE, RoHS |
| Package Content |
TL-SG116E Power Cord Installation Guide Rubber Feet |
| System Requirements |
Microsoft® Windows® for running Utility |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
