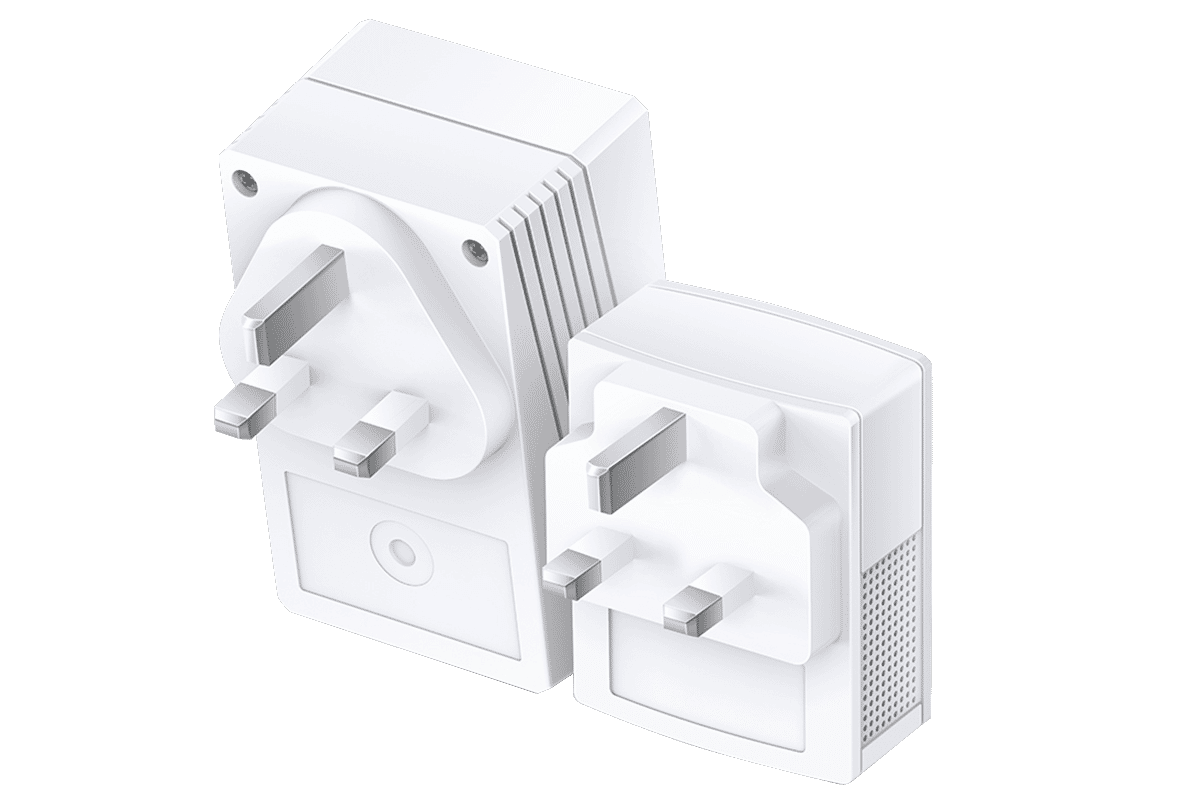

TP-LINK TL-WPA4220 KIT 300Mbps AV600 Wireless N Powerline Adapter Kit
TP-Link
- 600 Mbps Wired Speeds
- 300 Mbps wireless Speeds
- 2 year guarantee
The TP-LINK TL-WPA4220 iAV600 powerline adapter kit extends the range of the internet to any area of a property using existing electrical wiring. (Read more)
PRODUCT DETAILS

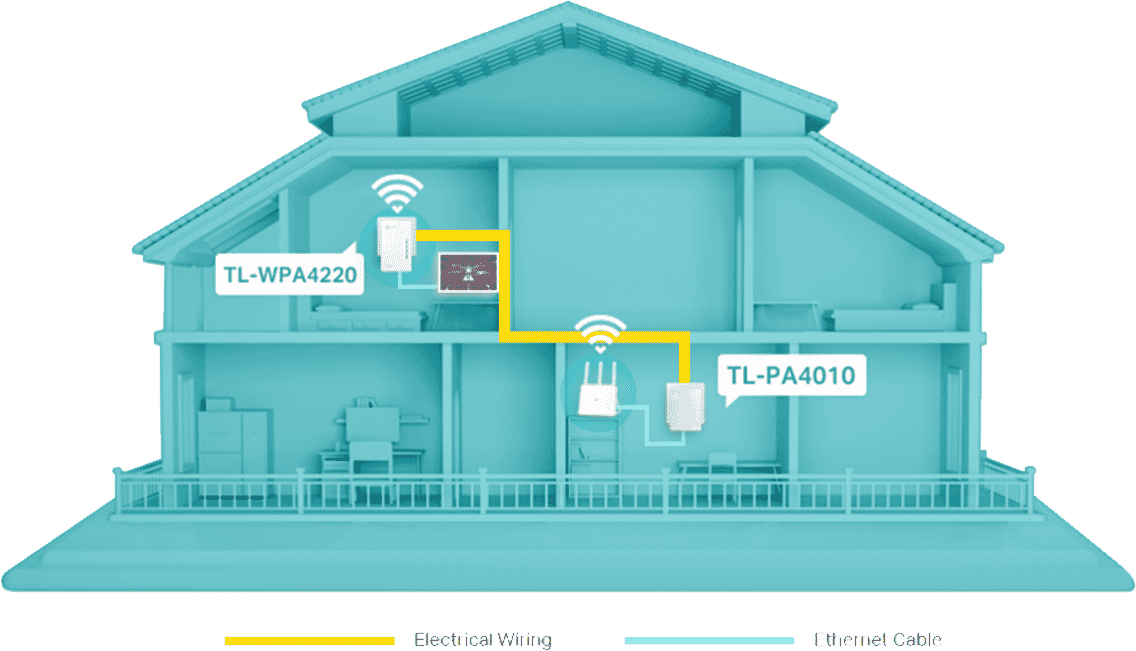

The TP-Link TL-WPA4220 AV600 is an Ethernet extender that plugs straight into your home sockets and transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired and wireless network to anywhere there is a power outlet.
Using advanced HomePlug AV2 technology, TL-WPA4220 KIT provides stable and high-speed data transmissions of up to 600 Mbps for ranges up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.
Features:
- HomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps*
- 300Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*
- Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes.
- 2 Ethernet Ports - The TL-WPA4220 (Wi-Fi extender) provides reliable high-speed wired connection for game consoles, smart TVs and more.
- One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network.
- Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app
| Hardware | |
| Transmission Speeds |
Powerline: up to 600 Mbps Ethernet: 10/100 Mbps |
| Standards and Protocols |
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE
802.3, IEEE 802.3u, IEEE 802.11b/g/n |
| Compatibility |
Compatible with all HomePlug AV & AV2
standard powerline adapters |
| Plug Type |
UK |
| Interface |
TL-WPA4220: 2 Ethernet Ports TL-PA4010: 1 Ethernet Port |
| Button |
Pair, Reset, Wi-Fi Clone |
| Max. Power Consumption |
TL-WPA4220: Maximum: 5.6W, Typical:
5.2W TL-PA4010: Maximum: 2.6W, Typical: 2.3W |
| LED |
Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) |
TL-WPA4220: 2.1 × 1.6 ×3.7 in (54 × 40 × 94
mm) TL-PA4010: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm) |
| Range |
Up to 300 meters/1000 feet over existing electrical
wiring |
| Wireless | |
| Wireless Security |
WPA-PSK / WPA2-PSK, WEP Encryptions |
| Software | |
| Management Features |
TP-Link tpPLC App Or download new tpPLC Utility on PCs: www.tp-link.com. |
| Modulation Technology |
OFDM (PLC) |
| Encryption |
Powerline Security: 128-bit AES Encryption Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions |
| Other | |
| Certification |
CE, RoHS |
| Package Content |
AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010 2× Ethernet Cables 1× Quick Installation Guide |
| System Requirements |
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment |
Operating Temperature: 0 °C~40 °C (32 °F~104 °F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Videos |
|---|
| No videos available |
| Files |
|---|
| TP-LINK TL-WPA4220 KIT Datasheet |
| TP-LINK TL-WPA4220 KIT User Manual |
| Links* |
|---|
| TP-Link website |
| TP-Link support site |
