Mercusys HALO H30 (3-PACK) AC1200 Home Mesh Wi-Fi System, Dual Band, AP Mode
Mercusys
- Mesh Networking
- Up to 2,800 sq. ft
- Up to 1,200 Mbps
The Mercusys HALO H30 is a powerful dual-band mesh Wi-Fi system designed to eliminate dead zones and deliver fast and seamless internet coverage. (Read more)
PRODUCT DETAILS
The Mercusys Halo H30 is a compact yet powerful AC1200 dual‑band mesh Wi‑Fi system designed to eliminate dead zones and deliver fast, reliable wireless coverage throughout your home. Supplied as a 3‑pack, the Halo H30 units work together to create a unified mesh network, ensuring seamless roaming as you move between rooms - your devices automatically connect to the strongest signal without interruption.
Ideal for households with multiple connected devices, the Halo H30 provides combined speeds of up to 1.2Gbps and intelligent load‑balancing technology to keep every connection smooth and stable, whether streaming 4K video, gaming online, or making video calls.
A Whole Home Wi-Fi Solution
Halo works as a unified system to guarantee a strong Wi-Fi signal in every corner of your home. Mercusys Mesh Technology provides an incredibly fast and stable user experience when you walk around your home. Interruption and buffering will be a thing of the past.
Features:

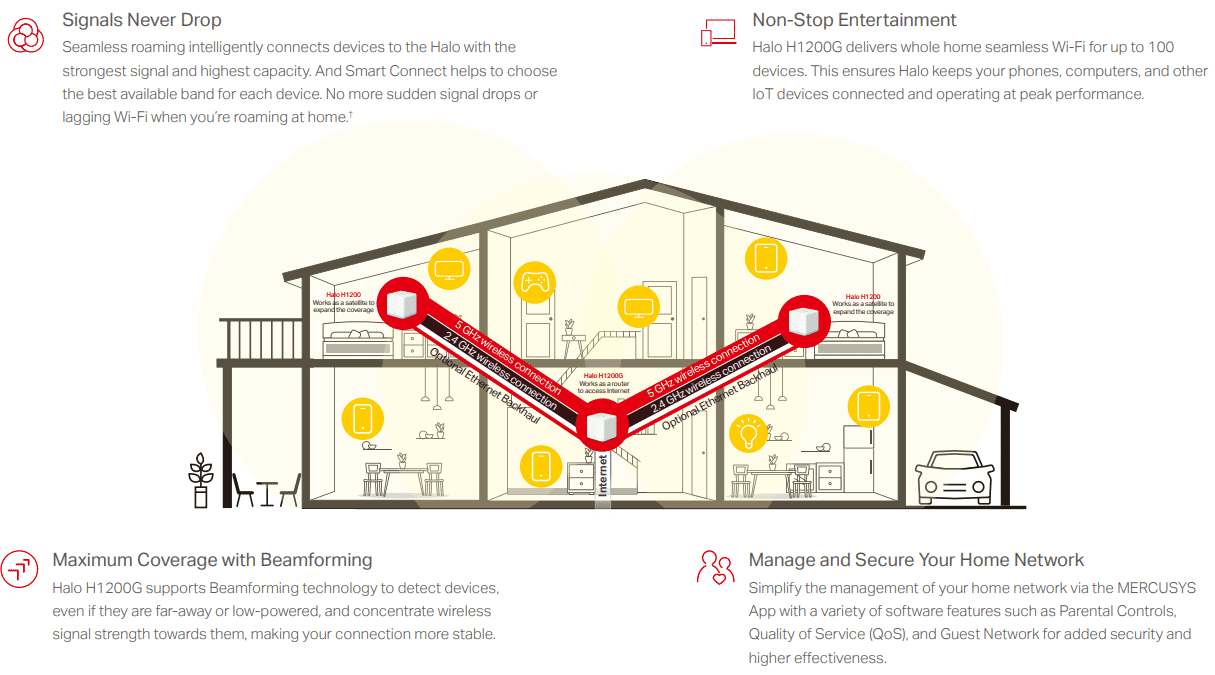

One Unified Network – With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one Wi-Fi name and password.
Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
Whole Home Coverage – Blanket up to 2,800 ft² (260 m²) with high-speed Wi-Fi, eliminating Wi-Fi dead zones at your home.
1.2 Gbps Dual Band Wi-Fi – Halo H30 provides fast and stable connections up to 100 devices with speeds of up to 1,200 Mbps and works with major internet service providers (ISPs) and modems.
Easy App Control – Use the MERCUSYS App to quickly set up and manage your Wi-Fi.
| Wireless |
|
| Wireless Standards |
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n
2.4 GHz |
| Signal Rate |
867 Mbps on 5 GHz, 300 Mbps on 2.4
GHz |
| Reception Sensitivity |
2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-73dBm 5GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-72dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm |
| Transmission Power |
2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
| Wireless Security |
WPA-PSK/WPA2-PSK |
| Mesh protocol |
802.11k/v/r |
| Software |
|
| Operation Modes |
Router, Access Point |
| Quality of Service |
WMM |
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Local Management, Remote Management, Multi-Managers |
| DHCP |
Server, Client |
| Firewall Security |
SPI Firewall |
| Protocols |
Supports IPv4 and IPv6 |
| Guest Network |
2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Hardware |
|
| Dimensions (W X D X H) |
3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) |
| Interfaces |
2× 10/100 Mbps Ethernet Ports per Halo Unit (WAN/LAN
auto-sensing) |
| Button |
Reset button |
| Others |
|
| Package Contents |
3× Halo H30 Units 1× RJ45 Ethernet Cable 3× Power Adapters Quick Installation Guide |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Mercusys HALO H30 Datasheet |
| Mercusys HALO H30 User Manual |
| Links* |
|---|
| Mercusys website |
| Mercusys support site |
