TP-Link Archer VX1800V AX1800 Dual Band Wi-Fi 6 VDSL2/ADSL Modem Router
The TP-Link Archer VX1800V is a powerful Gigabit Wi-Fi 6 dual band router with speeds up to 1201 Mbps on the 5 GHz band & 574 Mbps on the 2.4 GHz band (Read more)
PRODUCT DETAILS
The TP-Link Archer VX1800V is a powerful and feature-rich dual-band Wi-Fi 6 router with ultra-fast speeds, expanded coverage, and seamless connectivity. Built with the latest Wi-Fi 6 technology, the Archer VX1800V offers incredible performance for multiple devices, perfect for streamers, gamers, and households with heavy internet usage. It's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 3G/4G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 2.0 port supports 3G/4G dongles for a solid main or backup internet connection.
The Archer VX1800v features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5× faster than its VDSL2 predecessor. Compatibility with the leading ISPs provides ideal IP-based connections for any home. The integrated DSL port also supports all standard DSL connections.
Stream and game with lightning-fast speeds up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band) for truly outstanding online experiences.

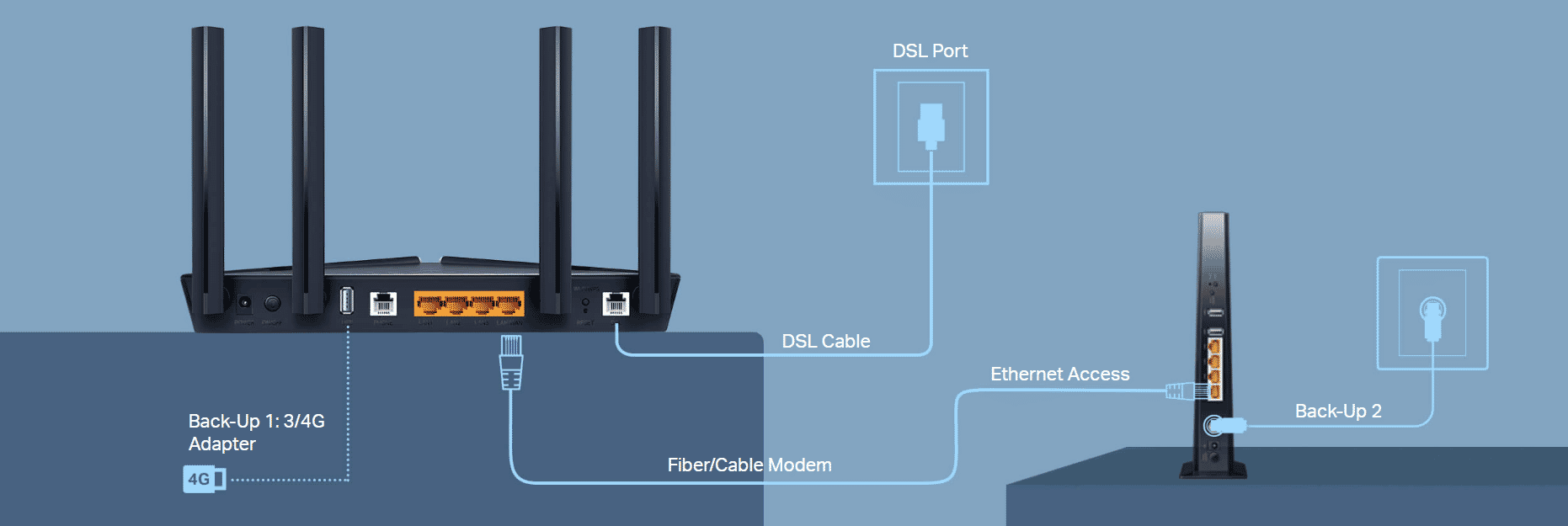

Versatile Connectivity

Archer VX1800v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 3G/4G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fibre modems, and the USB 2.0 port supports 3G/4G dongles for a solid main or backup internet connection.
The USB port can be used to share files, music, and videos within your network at high speeds. Equipped with a high-performance analogue telephone system. Connecting external storage through the USB port can also realize the voice message function, without worrying about missing calls or deleting messages. Plug your PCs, smart TVs, and game consoles into one of the three Gigabit Ethernet LAN ports for reliable wired connections of your broadband speed up to 1 Gbps.

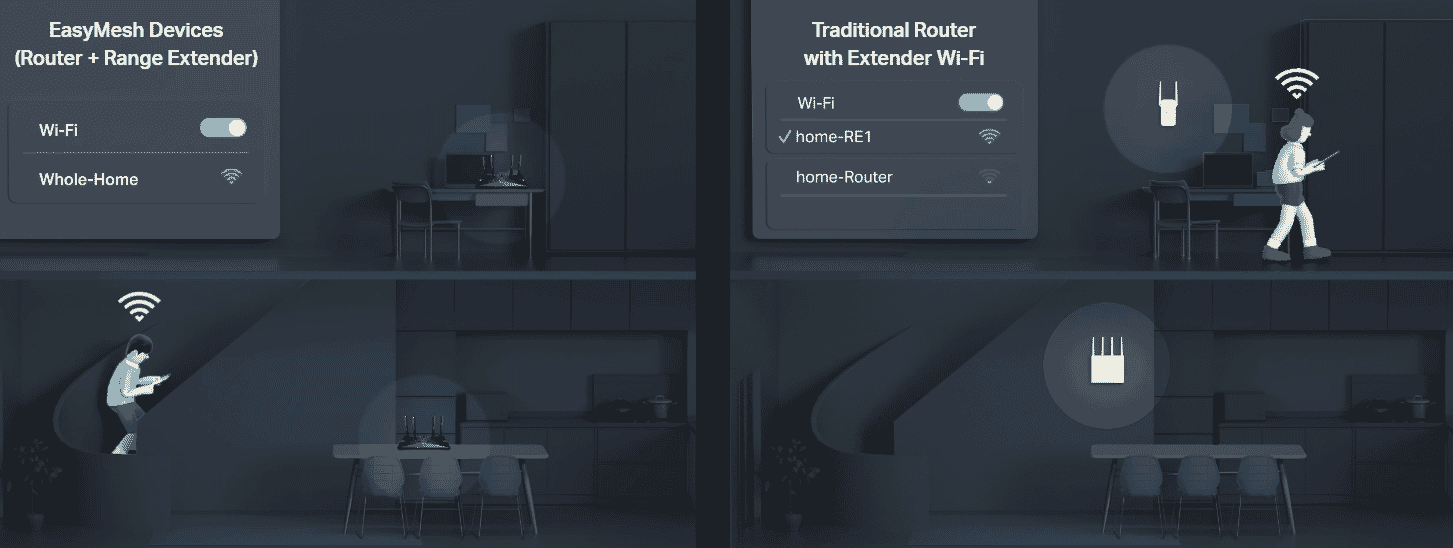

Whole Home Mesh Wi-Fi

TP-Link EasyMesh has been developed to allow users to create a seamless, scalable, and reliable mesh Wi-Fi network using compatible TP-Link routers and extenders. The goal of EasyMesh is to provide enhanced Wi-Fi coverage and eliminate dead zones in your home or office, offering a more consistent and stronger signal throughout the entire space.
EasyMesh is a mesh networking solution that allows you to combine TP-Link Wi-Fi routers and extenders into one unified network. Using EasyMesh technology, you can set up multiple TP-Link devices to work together as a mesh system without worrying about compatibility, as long as the devices support EasyMesh.
Features:
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
- Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- 2×2 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- VoIP Support - Support multiple VoIP accounts and various call features to surpass traditional landlines.
- TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
- Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.
| Hardware | |
| Interface |
1× Gigabit WAN/LAN, 3× Gigabit LAN, 1× USB 2.0, 2× RJ11 (1× DSL + 1× FXS) |
| External Power Supply |
12V / 1.5A |
| IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards |
ITU-T G.993.2, ITU-T G.993.5 (G.vector),
ITU-T G.998.4 (G.INP) |
| ADSL Standards |
Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1
(G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T
G.995.11 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4
(G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5(Annex A/L/M) |
| Dimensions ( W x D x H ) |
260.2 × 135.0 × 41.6 mm |
| Antenna |
4× External Antennas |
| Wireless Features | |
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Wireless Speeds |
1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Transmit Power |
CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security |
WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal,
WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise
encryptions |
| Wireless Schedule |
Supports 2.4 GHz and 5 GHz Wireless Schedule |
| VOIP Features | |
| VoIP Standards |
SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB,
G.726 |
| Integrated Answering Machine |
Stores long voice messages internally on the modem router or
store voice messages externally on USB storage devices |
| Advanced Telephone Functions |
Call Forwarding, Call Transfer, Call Back on Busy, Call
Blocking, Anonymous Call Blocks, Speed Dial, Emergency
Number |
| Software Features | |
| Advanced Features |
IPTV, Parental Controls, Network Address Translation (NAT),
Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS
Relay, DDNS, IGMP V1/V2/V3 |
| Security |
NAT Firewall, SPI Firewall, Access Control, Service Filtering,
Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC
Address Binding |
| Operating Modes |
VDSL/ADSL Modem Router, 3/4G Router, Wireless Router |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP, TP-Link |
| VPN |
OpenVPN, PPTP VPN, IPSec VPN |
| Protocols |
Support IPv4 and IPv6 |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over
Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge),
PVC – Up to 8 PVCs |
| USB Sharing |
Support Samba (Storage) / FTP Server / Media Server / 3G/4G
Modem / SFTP Server / Web Storage |
| Guest Network |
2.4 GHz guest network, 5 GHz guest network |
| IPSec VPN |
Support up to 10 IPSec VPN tunnels |
| Other | |
| Certification |
CE, RoHS |
| Package Contents |
Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari
4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Videos |
|---|
| Files |
|---|
| TP-Link Archer VX1800V Datasheet |
| TP-Link Archer VX1800V Quick Start Guide |
| TP-Link Archer VX1800V User Manual |
